GETTING TO KNOW YOUR 2019
Pantone Spot Colors
Pantone
Pantone
Cool
300 C
Gray 7C
chevrolet.com

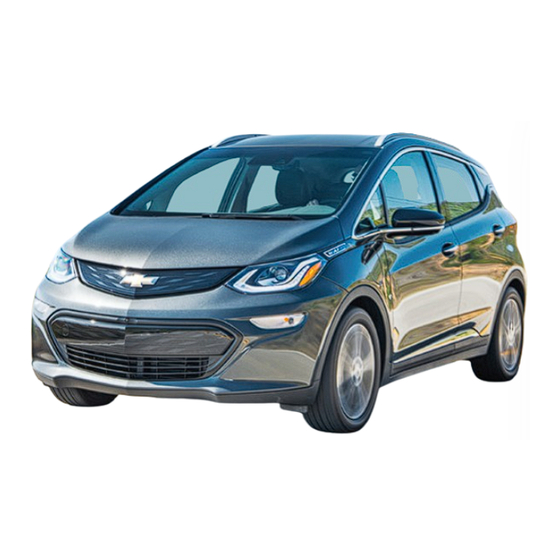

Congratulations on your new Chevrolet Bolt EV. For a quick introduction, review this Quick Reference
Guide. It provides the basic information needed to charge it, start it, and hit the road. More
information can be found in your Owner's Manual and at my.chevrolet.com/learn.
Questions? Contact a Chevrolet Customer Assistance Advisor at 1-800-222-1020.
Certain restrictions, precautions, and safety procedures apply to your vehicle.
Please read your Owner's Manual for complete instructions.
1
Advertisement
Table of Contents
Related Manuals for Chevrolet BOLT EV 2019
Summary of Contents for Chevrolet BOLT EV 2019
- Page 1 Gray 7C chevrolet.com Congratulations on your new Chevrolet Bolt EV. For a quick introduction, review this Quick Reference Guide. It provides the basic information needed to charge it, start it, and hit the road. More information can be found in your Owner’s Manual and at my.chevrolet.com/learn.
- Page 2 INSTRUMENT PANEL Regen on Exterior/ Cruise Control/Forward Turn Signal Instrument Demand Paddle Cluster/Driver Interior Collision Alert/Lane Keep Lever/ Windshield (behind steering Lamp Assist/Heated Steering IntelliBeam Information Wipers wheel) Center Controls Wheel Controls Control Lever Power Mirror Audio Favorite Tilt/Telescopic Voice Audio Volume Power Controls/Power...
- Page 3 Passenger’s Charging Driver’s Infotainment Status Climate Heated Seat Heated Seat System Controls Control Indicator Control Touchscreen Electric Electronic Hazard Warning Accessory Parking Precision Shift Flashers/Sport Mode/ Power Outlet Brake Lever Traction Control and StabiliTrak Buttons Refer to your Owner’s Manual to learn about the information being Antilock Brake System Traction...
- Page 4 GETTING STARTED REMOTE KEYLESS ENTRY (RKE) The RKE transmitter (key fob) performs several remote functions and must be in the vehicle to start the Bolt EV. Keyless Access With the RKE transmitter within 3 ft. Remote Start (1 m) of the door, press the button on the Lock Press the driver’s door handle to unlock the door.
- Page 5 GETTING STARTED POWER BUTTON POWER button flashes when The Bolt EV features an electronic pushbutton start. The the driver’s door is opened upon entry. Once the vehicle is ON, the button illuminates. Note: The air conditioning compressor, pumps and fan may run at any time — even when the vehicle is OFF —...
- Page 6 ELECTRONIC PRECISION SHIFT The electronic drive unit shift lever always starts in a center position, represented by a dot on the shift pattern on top of the shift lever. The selected gear position illuminates in red. After shifting, the shift lever returns to the center position. Park –...
- Page 7 INSTRUMENT CLUSTER The instrument cluster features a digital screen that can be configured in 3 different themes. Classic – Displays basic information on speed, range and other operations along with an efficiency bar that glows green to yellow based on driving efficiency. Modern –...
- Page 8 EFFICIENCY ELECTRIC RANGE Electric range is affected by colder outside temperatures. During colder months, the energy needed to warm the vehicle’s cabin and propulsion battery can cause the vehi- cle’s electric range to decline. See Driving for Better Energy Efficiency in the Driving and Operating section in your Owner’s Manual.
- Page 9 CLIMATE CONTROLS Passenger’s Climate Recirculation Fan Speed Driver’s Heated Heat Temperature Heated Seat Power Seat Button On/Off Mode Power Display Display Button AUTO Automatic Temperature REAR Defrost/ Rear Window Air Delivery Operation Control Defog Mode Defogger Controls Controls Defrost CLIMATE SETTINGS Optimal efficiency is achieved with the climate system off (Climate ON indicator is off).
- Page 10 2. Touch the desired menu item. 3. Touch the desired feature and setting. 4. Touch the Return icon to exit each menu. For more information, visit my.chevrolet.com/learn or contact Customer Assistance at 1-855-478-7767. See Instruments and Controls in your Owner’s Manual.
- Page 11 The Wireless Charging system is located in the center console. A compatible wireless charging adapter (not supplied) for the device may be needed. To check device compat- ibility, visit my.chevrolet.com/learn. 1. The vehicle must be ON. 2. Remove all objects from the charging slot.
- Page 12 CHARGING BATTERY The Bolt EV is powered by a lithium-ion high voltage battery pack, which holds its charge efficiently and has no memory effect (so it doesn’t have to be run down completely before recharging). Keep the vehicle plugged in, even when fully charged, to keep the battery temperature ready for the next drive.
- Page 13 CHARGING START CHARGING The provided 120-volt portable charge cord is located under the storage floor in the cargo area and can be used to charge the vehicle when a 240V charging station is not available. 1. With the vehicle parked, turn off the vehi- cle and select the Charging button at the bottom of the Energy Summary screen.
- Page 14 Charging equipment with at least a 240-volt/32-amp rating will provide the fastest charging time to recharge the propulsion battery. For more information about an available 240-volt home charging station, contact your Chevrolet dealer. See Driving and Operating in your Owner’s Manual.
- Page 15 DC CHARGING (IF EQUIPPED) DC charging stations are typically found in public locations. CHARGING TIME Using a DC charging station with at least 80 kW of available power, it will take approxi- mately 30 minutes to recharge a depleted battery to an estimated 90 miles of EV range. Charge times will vary with outside temperature.
- Page 16 CHEVROLET OWNER CENTER Get to know your vehicle inside and out with the Chevrolet Owner Center. Check out personalized information, including an online Owner’s Manual and helpful how-to videos, track your service history and warranty status, manage your OnStar and Connected Services vehicle plans, review your current Vehicle Diagnostics report (active service account required) and more.
