Model ODS-300
Henny Penny

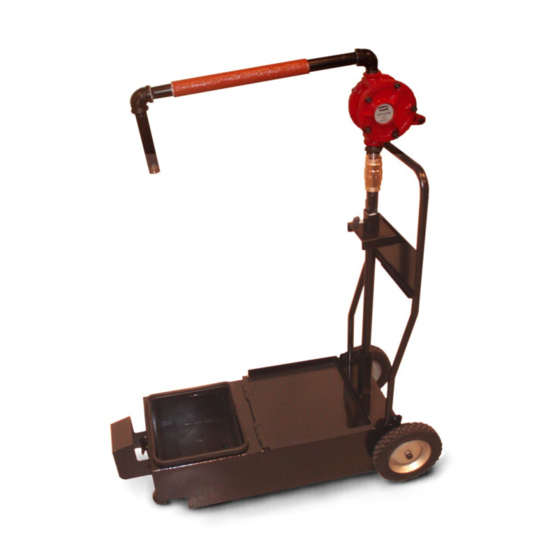

Oil Disposal
Shuttle
(Translated Documents Available On CD within Manual)
OPERATOR'S MANUAL
REGISTER WARRANTY ONLINE AT WWW.HENNYPENNY.COM
