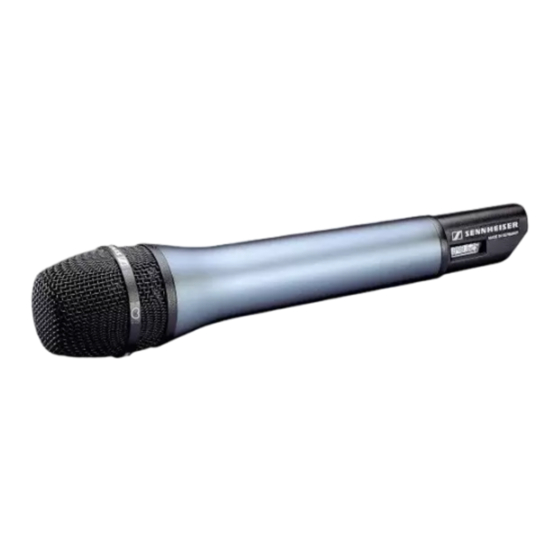

We have designed this product to give you reliable operation over many years. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser product quickly and to the full. Chap. Contents Brief description ... 25 Features ...
In the setting mode, the display provides information on sensitvity of the microphone input “lock mode” function INSERTING THE BATTERY SWITCHING ON/OFF THE SKM 3072-U REMOVING THE PROTECTION / IDENTIFICATION CAP SELECTING THE DISPLAY MODE “TRANSMISSION FREQUENCY“ OR “CHANNEL“...
Only receivers which are also equipped with ™ HiDyn plus can work correctly in combination with the SKM 3072-U hand-held transmitter. If this is not the case, the dynamic range is drastically reduced and the transmission sounds high and shrill.
To change the microphone head, unscrew the existing microphone head and remove it, then put the new microphone head on the SKM 3072-U and screw it tight. Inserting the battery / rechargeable accupack To insert the battery, unscrew the microphone head and remove it.
Sennheiser transmitters report their battery status to the receiver Together with the RF signal, the SKM 3072-U transmits inaudible information on its remaining battery or accupack capacity to the receiver. This information can be evaluated with the Sennheiser EM 3031/EM 3032/EM 3532 or EM 1046 receivers.
Basic functions of the Sennheiser operating menu A special feature of the Sennheiser 3000 series is the similar operation of transmitters and receivers. In stressfull situations, for example on stage or during a live show or presentation, it is important that the transmitter is easy to operate and that adjustments to the transmitter settings can be made quickly and “without looking”.
Selection of possible transmission frequencies Your SKM 3072-U hand-held transmitter can be operated on one of up to 32 different frequencies. These frequencies and their sequence are pre- programmed by the factory and must only be changed by your Sennheiser distributor who has the required specialist equipment.
Cat. no. 04200 EM 3532 Cat. no. 04400 (not pictured) The SKM 3072-U can also be used with any receiver of the 1000 and 5000 series, receivers of the 1000 series, however, cannot receive the battery status information. The frequencies of your SKM 3072-U are pre-programmed by the factory.
As far as possible, use your SKM 3072-U in dry rooms only. When you are using the SKM 3072-U outside, it must be protected against direct moisture. In outdoor applications, always use a windshield.
