Sennheiser MKH 80-P48 Specification Sheet

Microphones 4
RF condenser microphone (variable pattern)
Description

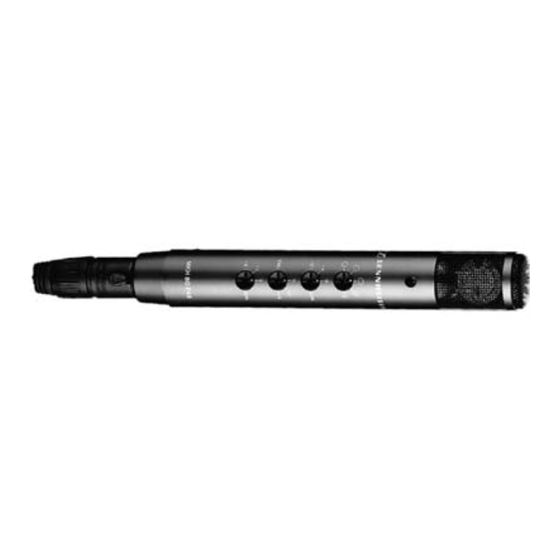

The MKH 80 is a variable pattern condenser microphone with five
switchable pick-up patterns. It is a superior microphone for any
recording application, offering high clarity and the absolute minimum
colouration. It is visually unobtrusive due to its compact design.
Delivery includes
1 MKH 80 P 48, 1 MZS 80 shock mount,
1 MZW 80 windshield
Recommended Accessories
Battery power supply unit
Foam windshield
Shock mount
Popshield
MZA 14 P 48 U Cat. No.02960
MZW 80-ANT Cat. No.03780
MZS 80 Cat. No.03685
MZP 40 Cat. No.03132
Features
- Wide, flat frequency response
- Extended low frequency response
- Exceptionally low inherent self-noise
- Wide dynamic range
- Switchable pre-attenuation, switchable roll-off filter
and switchable treble emphasis
- Transformerless and fully floating balanced output
- LED for on-axis alignment
- Haematite-anodised light metal body
Technical data
Pick-up pattern
Sensitivity in free field, no
load (1kHz)
Nominal impedance
Min. terminating
impedance
Equivalent noise level
Equivalent noise level
weighted as per CCIR
468-3
Power supply
Current consumption
Dimensions
Weight
Profile
Studio microphone with 5 switchable pick-up patterns
(omni-directional, wide
super-cardioid, figure-of-eight),
Publ.: 30.10.2003
MKH 80-P48
Cat. No. 03004
omni-
directional...cardioid...fig.
eight
40 mV/Pa +- 1 dB
150 Ohm
1000 Ohm
10 dB
20 dB
Phantom 48 +- 4 V
3 mA
d 26,7 x 176 mm
135 g
cardioid, cardioid,
switchable
