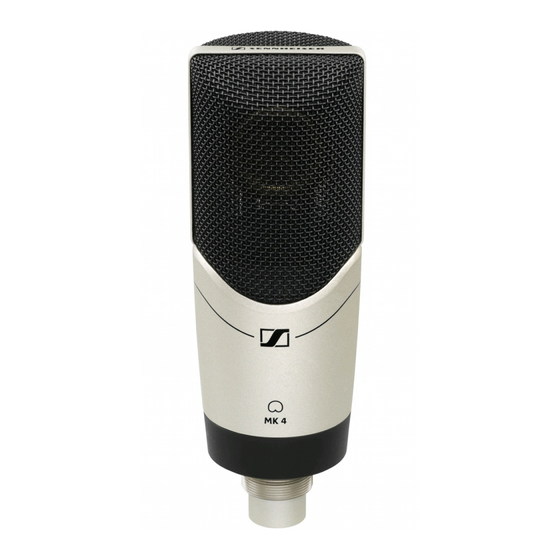

MK 4
High quality
studio microphone
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Sennheiser MK 4

Summary of Contents for Sennheiser MK 4

  • Page 1 MK 4 High quality studio microphone Instruction manual...

  • Page 2: Table Of Contents

    Mounting the microphone ...6 Orienting the microphone ...6 Connecting the microphone ...8 Using the microphone...9 Cleaning and maintaining the MK 4... 11 Specifications... 12 Polar diagram ... 13 Frequency response curve ... 13 If a problem occurs ..14 Manufacturer Declarations ...

  • Page 3: Important Safety Information

    • Solvents or cleansing agents can damage the surface of the product. Only use a soft, slightly damp cloth to clean the product. • Do not expose the product to extreme temperatures. After operation • Use the product with care and store it in a clean, dust-free environment. MK 4...
  • Page 4 “Improper use” means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein. www.sennheiser.com Bedienungsanleitung Instruction manual Notice d’emploi Istruzioni per l’uso MK 4 High quality studio microphone Instrucciones de uso Gebruiksaanwijzing MK 4...

  • Page 5: The Mk 4 Microphone

    The MK 4 is a large diaphragm true condenser studio microphone for very detailed, professional studio recordings. Its outstanding sound quality, easy handling and excellent value-for-money ratio make the MK 4 also ideal for project studios and home recording applications. Features •...

  • Page 6: Delivery Includes

    Delivery includes Delivery includes MK 4 microphone MZQ 4 microphone clamp Pouch MK 4 High quality studio microphone Instruction manual Bedienungsanleitung Instrucciones de uso Instruction manual Gebruiksaanwijzing Notice d’emploi Istruzioni per l’uso MK 4...

  • Page 7: Putting The Mk 4 Into Operation

    Putting the MK 4 into operation Putting the MK 4 into operation Mounting the microphone Screw the MZQ 4 microphone clamp to a solid and sturdy stand. Place the microphone from above into the microphone clamp and screw it tight.
  • Page 8 Putting the MK 4 into operation To suppress structure-borne noise, you can optionally use the MKS 4 shock mount which is available as a Sennheiser accessory. Place the microphone from above into the inner shock mount cage and screw it tight.

  • Page 9: Connecting The Microphone

    Putting the MK 4 into operation Connecting the microphone CAUTION! Damage to the product due to an unsuitable power supply! An unsuitable power supply can cause damage to the product. Only connect the product to microphone inputs or power supply units which provide 48 V phan- tom powering as per IEC 61938.

  • Page 10: Using The Microphone

    Using the microphone Using the microphone Orient the microphone towards the mouth or sound source. If sibilance occurs, position the microphone slightly to the side and not directly in front of the mouth. To eliminate disturbing noise as far as possible: Make sure that there is no disturbing noise source (e.g.
  • Page 11 Using the microphone Application examples Popshield (e.g. Sennheiser MZP 40): Windshield (e.g. Sennheiser MKW 4): The windshield changes the sound only slightly, but attenuates wind noise by approx. 10 dB. 10 | MK 4...

  • Page 12: Cleaning And Maintaining The Mk 4

    For this, use the supplied pouch or a lint-free, air-permeable packing material. Accessories are available from your Sennheiser partner. A list of suitable accessories can be found on our website at www.sennheiser.com > Service & Support. MK 4...

  • Page 13: Specifications

    Power supply Current consumption Diameter Length Weight Operating temperature Storage temperature 12 | MK 4 externally polarized condenser microphone 25.4 mm / 1” cardioid 20 Hz to 20 kHz 25 mV/Pa 140 dB 10 dB(A) (DIN IEC 651) 20 dB (CCIR 468-3) 130 dB approx.

  • Page 14: Polar Diagram

    Specifications Polar diagram Frequency response curve 1.000 10.000 MK 4 | 13...

  • Page 15: If A Problem Occurs

    The microphone is transmission connected to the wrong microphone amplifier input of the subsequent device. 14 | MK 4 Possible solution Check the corresponding setting on the channel strip. Check the mains connec- tion or the battery of the phantom power device.
  • Page 16 Use a suitable shock mount (see page 7). Check if the microphone is spoken into from the cor- rect side. Make sure that the Sennheiser logo or the slanted front of the sound inlet basket faces your body. MK 4...

  • Page 17: Manufacturer Declarations

    Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •...
  • Page 18 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC autho- rization to operate this equipment. MK 4...
  • Page 19 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Printed in Germany, Publ. 09/10, 540080/A01...
