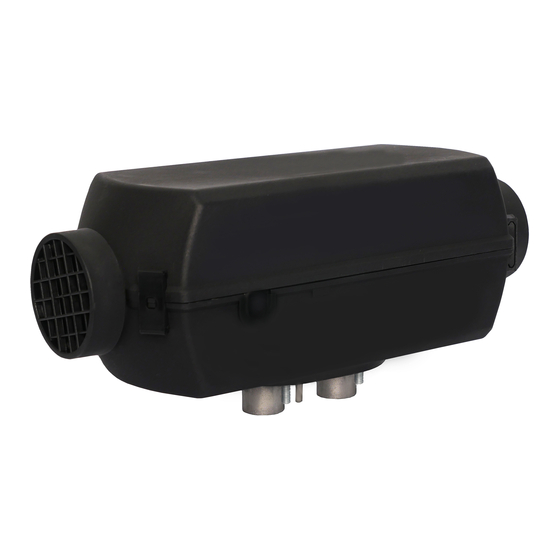

- Page 1 Installation instructions Air heaters: PLANAR-2D-12/24 PLANAR-44D-12/24-GP-Р PLANAR-4DM2-12/24-Р PLANAR-8DM-12/24-Р v11.2017-1...
-
Page 2: Table Of Contents
2 Safety Instructions ....................................4 Connections Diagram. Main Parts and units of PLANAR-2D mod P....................6 Connections Diagram. Main parts and units of PLANAR-4DM2 mod. P..................7 Connections Diagram. Main parts and units of PLANAR-44D mod. P.................... 8 Connections Diagram. -
Page 3: Introduction
These Instructions are designed for organizations and Voltage designations in heater labeling: users engaged in the installation of PLANAR air heaters. The «12» designed to operate with power supply voltage of 12V; document describes basic rules of installation of products in ... -
Page 4: Safety Instructions
2 Safety Instructions When electric welding is carried out on the vehicle, or Do not install the fuel line inside the repair work is made on the heater, the heater shall be cabin of a vehicle. disconnected from the battery. ... - Page 5 Install the heater at a height preventing contact with Install the exhaust pipe with the exhaust end down. cargo and in a way that the cargo would not obstruct the The installation arrangement must exclude the intake/outlet of the heater. possibility of contact of the exhaust pipe with the air intake, ...
-
Page 6: Connections Diagram. Main Parts And Units Of Planar-2D Mod P
Connections Diagram. Main Parts and units of PLANAR-2D mod P... -
Page 7: Connections Diagram. Main Parts And Units Of Planar-4Dm2 Mod. P
Connections Diagram. Main parts and units of PLANAR-4DM2 mod. P... -
Page 8: Connections Diagram. Main Parts And Units Of Planar-44D Mod. P
Connections Diagram. Main parts and units of PLANAR-44D mod. P... -
Page 9: Connections Diagram. Main Parts And Units Of Planar-8Dm Mod. P
Connections Diagram. Main parts and units of PLANAR-8DM mod. P... -
Page 10: Installation
PLANAR-4DM2 an area protected from water and dirt. The heater must be PLANAR-44D, holes in the body of the vehicle should be installed in a way preventing direct water ingress (e. g. made as shown in Fig.12. The heater may be installed using when the vehicle crosses water barriers). -
Page 11: Planar-2D Heater Dimensions
PLANAR-2D Heater Dimensions... -
Page 12: Planar-4Dm2 Heater Dimensions
PLANAR-4DM2 Heater Dimensions... -
Page 13: Planar-44D Heater Dimensions
PLANAR-44D Heater Dimensions... -
Page 14: Planar-8Dm Heater Dimensions
PLANAR-8DM Heater Dimensions... -
Page 15: Heater Mounting Position
Heater Mounting Position... - Page 16 Heater Mounting Position...
- Page 17 Heater Mounting holes...
- Page 18 If the mounting box is used, install the heated air supply 3.4 Heating Air Supply nozzle in a way to prevent ingress of hot air into the box.3.5 Heating air is taken from inside the room or from outside. Combustion Air Supply The outside air must come to the air intake from a The combustion air must not be taken from the place protected from rain, splashes, dirt, and water in case...
- Page 19 Exhaust gases must not hinder operation of other vehicle When installing the exhaust pipe, make sure units.Exhaust gases should be discharged to the outside. that no exhaust gases enter the interior or are Furthermore, the gases should not adversely affect the operation drawn in by the fan through the cab heater of vehicle units.
- Page 20 3.7 Installation of Air Intake and Exhaust Pipe In case the heater is installed onto a pedestal or a mounting bracket, cover the air intake, exhaust pipe, and the fuel pipe areas with a metal cover (Fig. 16–17).
- Page 21 Both exhaust and intake pipes should be positioned inclined downward from the heater (Fig.18). If this is not possible, then a hole Ø3 mm should be made at the lowest point to drain condensate. Do not cut this opening if the exhaust pipe goes through a room with people inside.
- Page 22 When installing the heater inside van bodies (insulated vans, box vans, etc.) route the exhaust pipe must be covered with duct or some other type of protection. (Fig.20а) When installing the heater inside van bodies (insulated vans, box vans, etc.), the exhaust pipe outlet and the air intake shall not be placed on the opposite sides of the vehicle (Fig.21- 22).
- Page 23 In rare instances, non-performance of this At installation of a heater in the boat, exhaust and air recommendation, can lead to the opposite intake pipes fasten to specialized branch pipes which are movement of a flame towards the air pump bought separately.
- Page 24 3.8 Insulation In order to avoid leakage of fuel from the fuel tank (by gravity) when the fuel pump loses its tightness, the fuel tank Choose the installation site considering the high temperatures (up to 500 °С, depending on capacity) during should be preferably placed in such a way that the maximum fuel level is below the cut-off plane of the fuel tube of the heater.
- Page 25 3.9.2. Fuel Pickup Installation 3.9.3 Fuel Pump Installation Install the fuel intake into the vehicle fuel tank as The fuel pump is used for metered supply of fuel into the shown on Fig. 24 (а). Fig.24(b) shows installation of a combustion chamber.
- Page 27 3.9.4 Fuel Line Installation. Cutting of couplings and fuel tubes should be done only with a sharp knife. Interfaces shall not Installation of the fuel line between the fuel pickup be crushed and must be free of burrs or narrowing and the heater is shown in Fig.28.
- Page 28 3.9.6 Heater Electrical Wiring Installation. Installation of the fuel pump electrical harness connector is shown in Fig.31. Installation of wire harnesses and other electrical parts of the heater should be made according to the wiring diagram. Install the harnesses so as to prevent their heating, deformation, and movement during vehicle operation.
- Page 29 3.9.8 Cab Sensor Installation 3.9.7 Controller Installation Controller is mounted in any place convenient for the The cabin sensor (Fig. 33) measures air temperature in the area of its installation and allows the heater to maintain the set driver (personnel). Secure the PU-5 panel with double- sided adhesive tape, a bracket, or any other way.
- Page 30 3.9.9 Modem installation (for PLANAR-2D only) GSM modem (Fig.34), which in essence is an analog of cell phone without display and keyboard, is designed for use in harsh environments (cold, vibration, etc.). The modem, same as a cell phone, has a SIM card installed, i.e.
-
Page 31: First Launch
5 Recommendations 4 First launch If the heater does not start after switching on, make After installation, carefully check if all wires, harnesses and electric connections are well installed and fastened. Fill the fuel sure there is fuel in the tank, check the charge of the battery, line and vent out air. -
Page 32: Electrical Wiring Diagrams
PLANAR-2D Electrical Wiring Diagram... - Page 33 Electrical Wiring Diagram PLANAR-4DM2 mod «Р»...
- Page 34 Electrical Wiring Diagram PLANAR-44D mod «Р»...
- Page 35 Electrical Wiring Diagram PLANAR-8DM mod «Р»...
- Page 36 The scheme of electrical connections, connection of the control panel...
