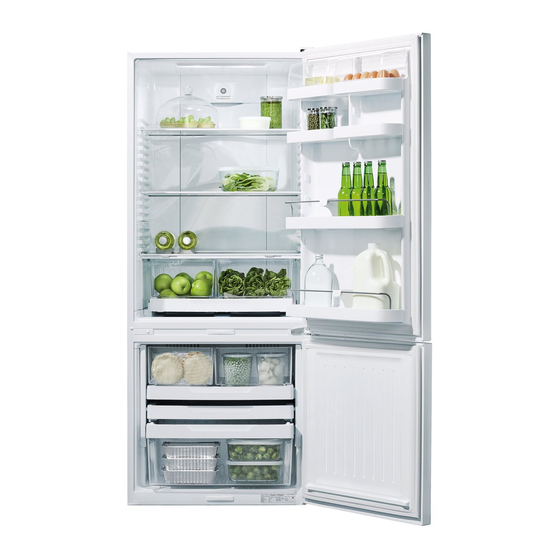

ActiveSmart™ operating instructions Models Size E372B, E402B 635 mm wide E406B, E442B 680 mm wide E522B, RF522A, RF522W 790 mm wide RF610/RF540A 900 mm wide The control panel enables you to view and modify all the features and options on your refrigerator Temperature control (all models) •...
Internal control panel to adjust temperatures Fig.16 Internal control panel Fig.17 Internal control panel for Fig.18 Internal control panel for for Tasman models Designer and Elegance models Ice & Water models Fresh food compartment (all models) • The fresh food compartment light will automatically be illuminated. The temperature for this compartment will show as a series of lights.
buttons. • One press on either of these buttons will reduce or increase the number of lights illuminated which indicates a small change in temperature. • Fewer lights illuminated means a cooler temperature for the compartment selected. • When the door is re-opened the control panel will return automatically to the fresh food compartment setting. Successively pressing the button will automatically scroll between the compartments.
if ALARM MUTE has been activated the door alarms will be silenced for 20 minutes. After 5 minutes of the doors being left open the compartment light will turn off however the normal door alarms will be suspended. The ALARM MUTE light will be illuminated to indicate that the appliance is in this mode Key Mute (all models) KEY MUTE allows you to silence all button presses.
icon on the internal control panel will be illuminated. • Pressing any of the buttons will cause a raspberry beep to tell you that they are disabled. • KEY LOCK will not automatically deactivate. To manually deactivate, press and hold the buttons for 4 seconds.
buttons for 4 seconds. The candle icon will no longer illuminate on the internal control panel and functionality of the internal control panel will return to normal. Special Functions Bottle Chill (Elegance, Designer and Ice & Water models only) This function allows you to chill your beverages more rapidly in the freezer without the worry of forgetting about them. The timer is set for 15 minutes however the time taken to chill depends on the size of your beverage.
Page 7
icon is not visible on the external display (Ice & Water models only). Fast Freeze (Elegance, Designer and Ice & Water models only) • To activate, press the button on the internal control panel. The FAST FREEZE light will be illuminated when the function is activated.
