Peavey Versarray 112 Mk2 Specifications

SPECIFICATIONS
Frequency Response, 1 meter on-axis, swept-sine in anechoic
environment:
110 Hz to 20 kHz (±3 dB, with processing)
Usable Low Frequency limit (-10 dB point):
85 Hz (with processing)
Power Handling:
Low Frequency Section:
500 W continuous
1,000 W program
2,000 W peak
High Frequency Section:
120 W continuous
240 W program
480 W peak
Sound Pressure Level, 1 Watt, 1 meter in anechoic environment:
Low Frequency Section:
96 dB SPL, (2.83 V input)
High Frequency Section:
101 dB SPL, (4.0 V input for 16 ohm wiring; 2.0 V for 4 ohm
wiring)
Maximum Sound Pressure Level (1 meter) * :
Low Frequency Section:
123 dB SPL continuous
129 dB SPL peak
High Frequency Section:
122 dB SPL continuous
128 dB SPL peak
*Note: This spec is for one module at 1 meter, a line array of
6 units has much higher output at distance due to line source
e ect where SPL falls o at 3 dB per distance doubling rather
than 6 dB

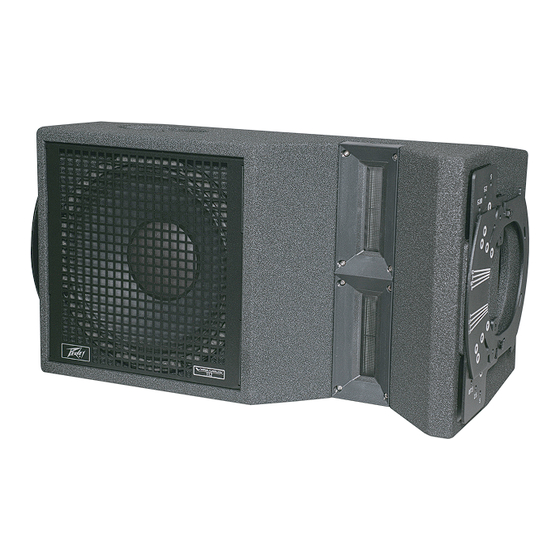

Versarray 112 Mk2
™
Nominal Radiation Angle measured at -6 dB point of polar
response:
90 degrees Horizontal by 15 degrees Vertical
(One module only, straight line array of more than 1 module
narrows vertical dispersion accordingly)
Transducer Complement:
Low Frequency Section:
1x 12 in. Woofer,
1208-8 SPS BWX Black Widow
High Frequency Section:
2x 4.75 in. Ribbon Tweeters
Two RD 2.6 Peavey Ribbon Tweeters, on a waveguide
™
Box Tuning Frequency (Sealed):
Low Frequency Section: 100 Hz
Radiation Angle measured at -6 dB point of polar response:
500 Hz – 1.6 kHz:
Horiz. 120o +/- 55o
Vert. 117o +/- 75o
1.6 kHz - 5 kHz:
Horiz. 84o +/- 20o
Vert. 34o +/- 20o
5 kHz - 16 kHz:
Horiz. 94o +/- 5o
Vert. 15o +/- 3o
Directivity Factor, Q (Mean):
19.78 +19.4, -17.4
Directivity Index, Di (Mean):
11.44 dB +4.5 dB, -7.6 dB
4" VC Woofer, in a sealed box
®
