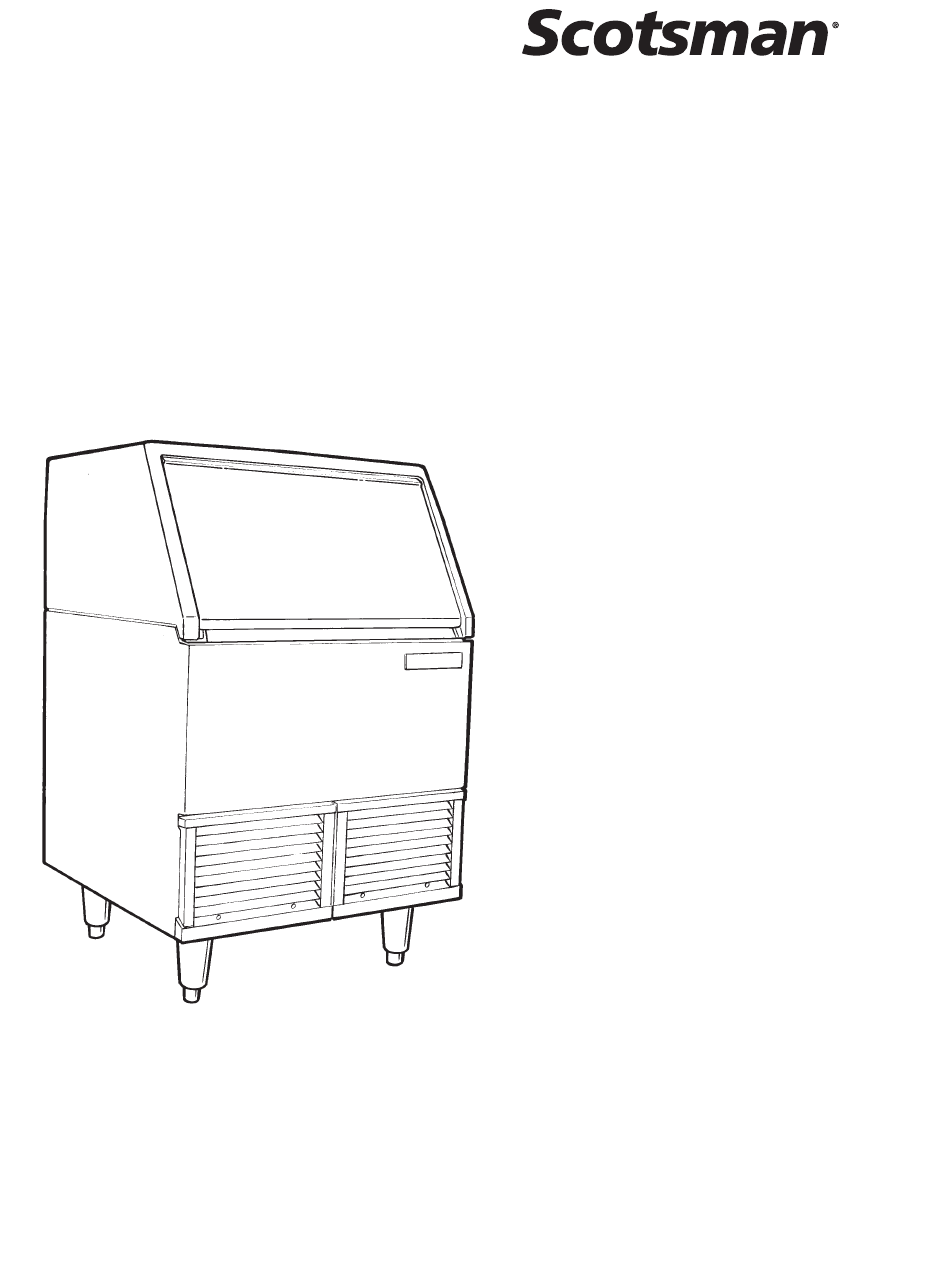

- Page 1 Installation and User's Manual for Flaked Ice Machine with Storage Bin Model AFE424 Air or Water Cooled...
-
Page 2: Table Of Contents
R-134a as the refrigerant. The AFE424 is an ice machine that produces flaked ice and stores it in a insulated bin. It automatically maintains the level of ice by turning on when the ice level falls and switches off when it is full. -
Page 3: Specifications
AFE424 Specifications 14.25 The nameplate is located on the back panel. A serial number plate is SERIAL located behind the right NUMBER grill, in front of the control PLATE box, on the base. The unit is equipped with an electrical power cord, but should only be plugged into a circuit dedicated to the ice machine. -
Page 4: For The Installer: Environmental Limitations
Do not install where this air flow is blocked. Scotsman Ice Systems are designed and The AFE424 has a removable cabinet. When manufactured with the highest regard for safety installed, the machine should have some extra and performance. -
Page 5: Installation
AFE424 Installation Water This ice machine may be installed in the open or under a counter. No clearance is required at the The water supply for this ice machine has been in sides or top beyond what’s needed to place the contact with many materials since it fell from the cabinet into position. -
Page 6: Installation: Water And Drain
AFE424 Installation: Water and Drain For The Plumber · 1. Connect cold potable water to the 3/8" male Drain tube material must be rigid and meet local flare at the top back of the cabinet. A water filter is code. -
Page 7: Installation
10. Has the bin and cabinet been wiped clean and sanitized? 11. Has the Customer Evaluation & Warranty Registration form been filled out? Check for correct model and serial numbers from the nameplate, then mail the completed form to Scotsman. March 2010 Page 6... -
Page 8: Removal Of The Cabinet
AFE424 Removal of the Cabinet One of the most useful features of this ice machine STEP 2 is the ability to remove the cabinet from the ice machine without removing the ice machine from its installed position. To Remove: 1. Switch the master switch to OFF. Be certain the ice machine has been switched off. -
Page 9: Initial Start Up
AFE424 Initial Start Up After the final check list has been gone through, the ice machine may be started up. 1. Open the water shut off valve and allow the reservoir to fill with water. The ice machine will not operate without 20 pounds of water pressure. -
Page 10: Maintenance And Cleaning
· Clean the water system and air cooled Scotsman recommends that only the surface of condenser a minimum of twice per year. If in an the condenser be cleaned with the bin in place. -
Page 11: Maintenance And Cleaning
14. Mix a solution of 1.5 quarts of warm (95 F. - F.) water and 4 ounces of Scotsman Clear 1 4. Remove cover plate over reservoir. Ice Machine Scale Remover. 5. Block the float up to shut off water flow. -
Page 12: Maintenance And Sanitation
To Remove Scale: and door with sanitizing solution. Be sure and wipe 1. Mix a cleaning solution of 4 ounces of Scotsman the joint between the hood and bin with the sanitizing solution. Use a clean brush to thoroughly Ice Machine Cleaner to 4 pints of hot (95 F.-110... -
Page 13: Maintenance - Bearing
Grease should just cover the bearing surface. Wipe out any contaminated grease. Add new grease, Scotsman part number 19-0662-02. If water or rust is present, replace the bearing. 7. Check the bottom of the evaporator for water leaks. -
Page 14: What To Do Before Calling For Service
AFE424 What to Do Before Calling for Service If the machine is off, not making ice: 1. Check the water supply to the ice machine. The machine is designed to shut off if there is no water to it. Check the water filters (if there are any) for the restriction. - Page 15 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www.scotsman-ice.com 17-3311 -01...
