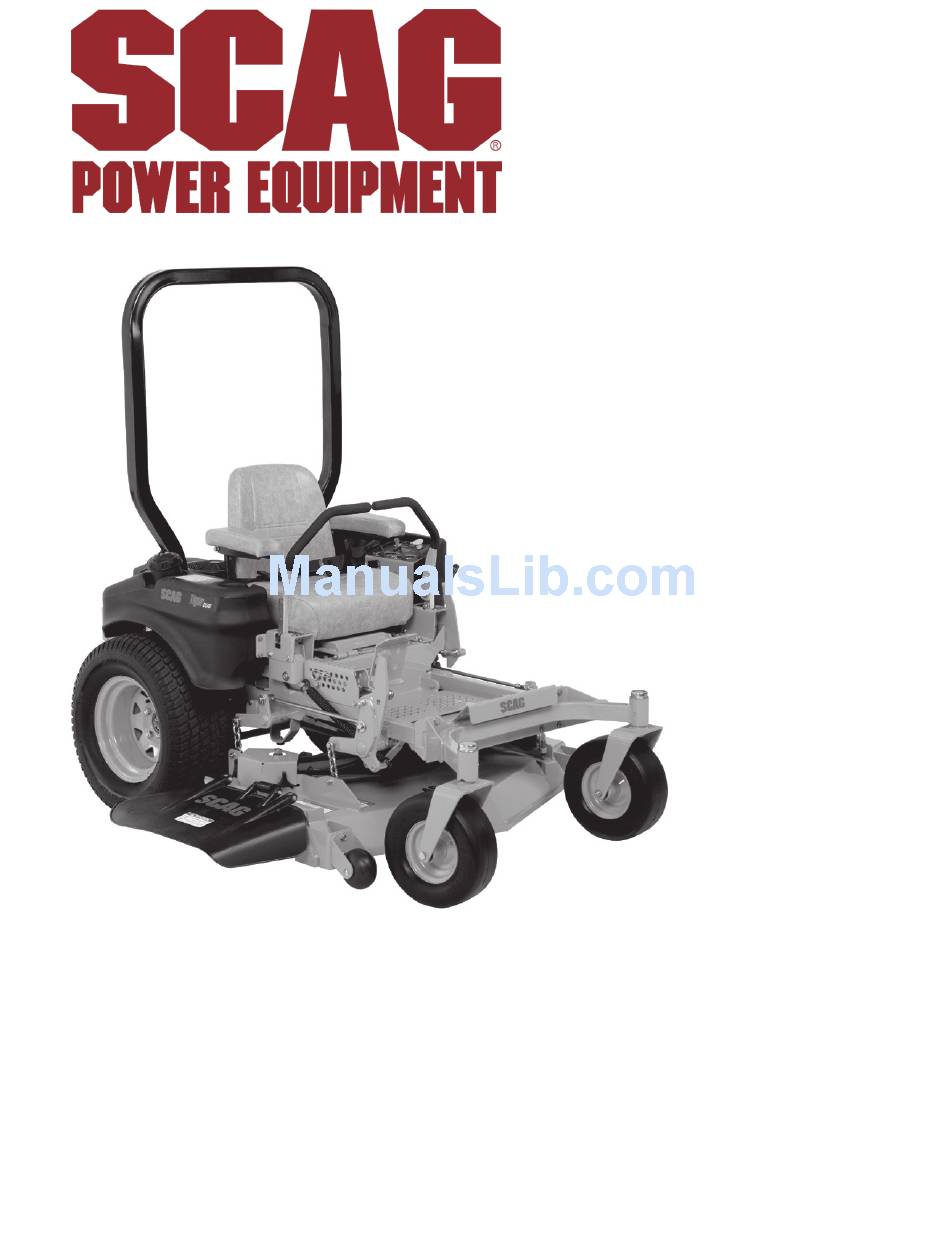

Congratulations on owning a Scag mower! This manual contains the operating
instructions and safety information for your Scag mower. Reading this manual
can provide you with assistance in maintenance and adjustment procedures to
keep your mower performing to maximum efficiency. The specific models that
this book covers are listed on the inside cover. Before operating your machine,
please read all the information enclosed.
© 2009
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.
OPERATOR'S
MANUAL
Tiger Cat
Models:
STC48V-19KAI
STC48V-23CV
STC48V-25CV
STC48V-26BS
STC52V-25CV
STC52V-27CV
STC52V-27CV-SS
STC61V-25CV
STC61V-27CV
PART NO. 03250 Rev.4
PRINTED 9/2009
PRINTED IN USA

Advertisement

Table of Contents
loading

Related Manuals for Scag Power Equipment TIGER CAT STC48V-19KAI

Summary of Contents for Scag Power Equipment TIGER CAT STC48V-19KAI

  • Page 1 The specific models that this book covers are listed on the inside cover. Before operating your machine, please read all the information enclosed. © 2009 Scag Power Equipment Division of Metalcraft of Mayville, Inc. OPERATOR’S MANUAL...
  • Page 2 FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT • Read this manual completely as well as other manuals that came with your mower. • DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down).

  • Page 3: Table Of Contents

    Table of Contents SECTION 1 - GENERAL INFORMATION 1.1 INTRODUCTION ...1 1.2 DIRECTION REFERENCE ...1 1.3 SERvICING THE ENGINE AND DRIvE TRAIN COMPONENTS ...1 1.4 SYMBOLS ...2 SECTION 2 - SAFETY INFORMATION 2.1 INTRODUCTION ...3 2.2 SIGNAL WORDS ...3 2.3 BEFORE OPERATION CONSIDERATIONS ...3 2.4 OPERATION CONSIDERATIONS ...4 2.5 ROLL-OvER PROTECTION SYSTEM ...6 2.6 MAINTENANCE CONSIDERATIONS &...
  • Page 4 SECTION 6 - ADJUSTMENTS 6.1 PARKING BRAKE ADJUSTMENT ...22 6.2 TRAvEL ADJUSTMENTS ...22 6.3 THROTTLE CONTROL AND CHOKE ADJUSTMENTS ...24 6.4 BELT ADJUSTMENT ...24 6.5 BELT ALIGNMENT ...24 6.6 CUTTER DECK ADJUSTMENTS ...24 6.7 CUSTOM-CUT BAFFLE ADJUSTMENT ...26 6.8 ELECTRIC CLUTCH ADJUSTMENT ...27 SECTION 7 - MAINTENANCE 7.1 MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS ...28...

  • Page 5: General Information

    USE ONLY SCAG APPROvED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine. See Section 8, Paragraph 8-1. For pictorial clarity, some illustrations and figures in this manual may show shields, guards or plates open or removed.

  • Page 6: Symbols

    SYMBOLS SYMBOL DESCRIPTION Choke Parking Brake On/Start Off/Stop Falling Hazard Fast Continuously Variable - Linear Pinch Point 481039S Hour meter/Elapsed Operating Hours STT MODELS Seat must be installed under the seat hold down bracket during installation. Failure to secure the seat under the hold down bracket could result in serious injury or death in a roll over.

  • Page 7: Safety Information

    Section 2 INTRODUCTION Your mower is only as safe as the operator. Carelessness or operator error may result in serious bodily injury or death. Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance and storage of the equipment.

  • Page 8: Operation Considerations

    If the operator(s) or mechanic(s) cannot read English or Spanish, it is the owner's responsibility to explain this material to them. DO NOT wear loose fitting clothing. Loose clothing, jewelry or long hair could get tangled in moving parts. Do not operate the machine wearing shorts; always wear adequate protective clothing including long pants.
  • Page 9 Section 2 To prevent tipping or loss of control, start and stop smoothly, avoid unnecessary turns and travel at reduced speed. When using any attachment, never direct the discharge of material toward bystanders or allow anyone near the machine while in operation. Before attempting to start the engine, with the operator in the seat, disengage power to the cutter deck, place the steering control levers in the neutral...

  • Page 10: Roll-Over Protection System

    ROLL-OvER PROTECTION SYSTEM WARNING Keep the roll bar in the raised and locked position and the seat belt securely fastened during operation. Failure to do so could cause serious injury or loss of life. This mower has been designed for good traction and stability under normal mowing conditions.
  • Page 11 Section 2 It is recommended that the seat belt be inspected on a daily basis for signs of damage. Any seat belt system that shows cuts, fraying, extreme or unusual wear, significant discoloration due to UV exposure, dirt or stiffness, abrasion to the seat belt webbing, or damage to the buckle, latch plate, hardware or any other obvious problem should be replaced immediately.

  • Page 12: Maintenance Considerations & Storage

    MAINTENANCE CONSIDERATIONS & STORAGE Never make adjustments to the machine with the engine running unless specifically instructed to do so. If the engine is running, keep hands, feet, and clothing away from moving parts. Disengage drives, lower implement, set parking brake, stop engine and remove key or disconnect spark plug wire to prevent accidental starting of the engine when servicing or adjusting the machine.

  • Page 13: Safety And Instructional Decals

    Section 2 SAFETY AND INSTRUCTIONAL DECALS CAUTI ON Avoid injury from burns. Shut off engine before removing fuel tank cap. 483397 START / DRI VE PROCEDURE W ARNI NG AVOI D SERI OUS I NJ URY OR DEATH 483444 483444 INSTALL BELT COvER BEFORE FORWARD 483407...

  • Page 14: Specifications

    ENGINE General Type ...Heavy Duty Industrial/Commercial Gasoline Brand ...Briggs & Statton, Kohler, Kawasaki Horsepower: (Scag Model STC48V-19KAI) ... 19 HP (Spec.#FH580V-AS37R) (Scag Model STC48V-23CV) ... 23 HP (Spec.# PS-75607) (Scag Model STC48V-25CV, STC52V-25CV, STC61V-25CV) ... 25 HP (Spec# CV730-3112) (Scag Model STC48V-26BS) ...26 HP (Spec.# 44P7770115E1) (Scag Model STC52V-27CV, STC52V-27CV-SS, STC61V-27CV) ...

  • Page 15: Cutter Deck

    Section 3 Tire Pressure: Front Caster... 25 PSI Drive ... 12 PSI Fuel Tanks ... Dual 4-Gallon Seamless Polyethylene Tanks with Large Opening and Fuel Cap Seat ... Padded, Thick Cushion with Extra Spring Support Travel Speed: Forward ...0-10 MPH Reverse ...0-5 MPH -NOTE- The machine will travel at 10 mph for transport purposes.

  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS CAUTION Do not attempt to operate this mower unless you have read this manual. Learn the location and purpose of all controls and instruments before you operate this mower. CONTROLS AND INSTRUMENT IDENTIFICATION Before operating the mower, familiarize yourself with all mower and engine controls.

  • Page 17: Safety Interlock System

    Section 4 Fuse Holders (Figure 4-1). Two 20-amp fuses protect the mower’s electrical system. To replace fuses, pull fuse out of the socket and install a new fuse. Left Steering Control (Figure 4-1). the mower's left wheel when traveling forward or reverse.

  • Page 18: Starting The Engine

    STARTING THE ENGINE CAUTION DO NOT USE STARTING FLUIDS. Use of starting fluids in the air intake system may be potentially explosive or cause a “runaway” engine condition that could result in engine damage and/or personal injury. Be sure the fuel shutoff valve, located behind the operator's seat, is completely open.

  • Page 19: Engaging The Deck Drive (Cutter Blades)

    Section 4 REvERSE TRAvEL CAUTION Disengage power to the mower before backing up. Do not mow in reverse unless absolutely necessary and then only after observation of the entire area behind the mower. CAUTION Before backing up, observe the rear for persons and obstructions.

  • Page 20: Hillside Operation

    HILLSIDE OPERATION WARNING DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution.

  • Page 21: Moving Mower With Engine Stopped

    Section 4 4.11 MOvING MOWER WITH ENGINE STOPPED To “free-wheel” or move the mower around without the engine running, rotate the dump valve levers counter- clockwise. See Figure 4-4. Disengage the parking brake and move the mower by hand. When the machine is in the desired position, engage the parking brake and rotate the levers clockwise until they stop.

  • Page 22: Towing (Optional Hitch Accessory)

    Insert the lanyard pin into the cutting height index at the desired cutting height. Push forward on the deck lift foot lever, hold in place and pull back on the deck release lever. See Figure 4-6. Slowly release the foot pedal.

  • Page 23: Troubleshooting Cutting Conditions

    Section 5 TROUBLESHOOTING CUTTING CONDITIONS CONDITION STRINGERS - OCCASIONAL BLADES OF UNCUT GRASS Width of Deck SGB020 STREAKING - STRIPS OF UNCUT GRASS IN CUTTING PATH Width of Deck SGB018 STREAKING - STRIPS OF UNCUT GRASS BETWEEN CUTTING PATHS Width Width Deck Deck...
  • Page 24 TROUBLESHOOTING CUTTING CONDITIONS (CONT'D) CONDITION U N E v E N C U T O N F L AT GROUND - WAvY HIGH-LOW APPEARANCE, SCALLOPED CUT, OR ROUGH CONTOUR Width of Deck SGB020 UNEvEN CUT ON UNEvEN GROUND - WAvY APPEARANCE, HIGH-LOW SCALLOPED CUT, OR ROUGH CONTOUR Width of Deck...
  • Page 25 Section 5 TROUBLESHOOTING CUTTING CONDITIONS (CONT'D) CONDITION SCALPING - BLADES HITTING DIRT OR CUTTING vERY CLOSE TO THE GROUND Width of Deck SGB022 STEP CUT - RIDGE IN CENTER OF CUTTING PATH Width of Deck SGB024 SLOPE CUT - SLOPING RIDGES ACROSS WIDTH OF CUTTING PATH Width of Deck...

  • Page 26: Adjustments

    PARKING BRAKE ADJUSTMENT WARNING Do not operate the mower if the parking brake is not operable. Possible severe injury could result. The parking brake linkage should be adjusted whenever the parking brake lever is placed in the “ENGAGE” position and the parking brake will allow the mower to move. If the following procedures do not allow you to engage the parking brake properly, contact your Scag dealer for further brake adjustments.
  • Page 27 Section 6 NEUTRAL ADJUSTMENT Be sure the dump valve levers are in the run position and the steering control levers are in the neutral lock position. With an operator in the seat, start the engine and disengage the parking brake. Run the engine at full operating speed and check if the machine creeps forward or backwards.

  • Page 28: Throttle Control And Choke Adjustments

    A. Stop the machine and place the steering control levers in the neutral position. Loosen the lock nuts securing the ball joints at each end of the RH steering control rod. Rotate the control rod to lengthen the rod and tighten the lock nuts. This will cause the control rod to stroke the RH pump less, slowing down the RH wheel.
  • Page 29 Section 6 CUTTER DECK PITCH The pitch of the cutter deck should be equal between the front and rear of the cutter deck for proper cutting performance. To check for proper deck pitch, be sure that the mower is on a flat, level surface and the tires are properly inflated.

  • Page 30: Custom-Cut Baffle Adjustment

    Check the cutter deck cutting height by placing the lanyard pin in the 3" position on the cutting height index. Release the deck from the transport position and allow the deck to move to the 3" cutting height position. Check the measurement from the floor to the cutter blade tip.

  • Page 31: Electric Clutch Adjustment

    Section 6 ELECTRIC CLUTCH ADJUSTMENT The electric clutch serves two functions in the operation of the mower. In addition to starting and stopping the power flow to the cutter blades, the clutch also acts as a brake to assist in stopping blade rotation when the PTO is switched off or the operator presence circuit is interrupted.

  • Page 32: Maintenance

    MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS HOURS BREAK-IN 100 200 500 (FIRST 10) * Perform these maintenance procedures more frequently under extreme dusty or dirty conditions MAINTENANCE PROCEDURE Check all hardware for tightness Check hydraulic oil level C h e c k a l l b e l t s f o r p r o p e r alignment Check hydraulic hoses for leaks Check engine oil level...

  • Page 33: Lubrication

    Section 7 MAINTENANCE CHART - RECOMMENDED SERvICE INTERvALS (CONT'D) HOURS BREAK-IN (FIRST 10) LUBRICATION GREASE FITTING LUBRICATION CHART (SEE FIGURE 7-1) LOCATION 1 Caster Wheel Pivot * 2 Caster Wheel Bearings 3 Brake Actuator 4 Cutter Deck Bellcranks 5 Cutter Deck Pusharms 6 Control Pivot 6 Cutter Deck Spindle 7 Brake Handle...
  • Page 34 Figure 7-1. GREASE FITTING LUBRICATION Lubricant Interval Lithium MP White Grease 2125 (40 Hours/Weekly) Chassis Grease (100 Hours/Bi-monthly) Chassis Grease (200 Hours/Monthly) Chassis Grease (500 Hours/Yearly) Lubrication Fitting Points Section 7...

  • Page 35: Hydraulic System

    Section 7 HYDRAULIC SYSTEM A. CHECKING HYDRAULIC OIL LEvEL The hydraulic oil level should be checked after the first 10 hours of operation. Thereafter, check the oil after every 200 hours of machine operation or monthly, whichever occurs first. - IMPoRtANt - If the oil level is consistently low, check for leaks and correct immediately.

  • Page 36: Engine Oil

    C. CHANGING HYDRAULIC OIL FILTER ELEMENT The hydraulic oil filter should be changed after every 500 hours of operation or annually, whichever occurs first. Remove the oil filter element and properly discard it. See Figure 7-3. Fill the new filter with clean oil and install the filter.

  • Page 37: Engine Air Cleaner

    Section 7 Use only an approved gasoline container. Never remove the gas cap or add fuel with the engine running. Allow the engine to completely cool before fueling. Never fuel the machine indoors or in an enclosed trailer. Never store the machine or fuel container where there is an open flame, spark or pilot light such as on a water heater or other appliances.

  • Page 38: Battery

    BATTERY WARNING Lead-acid batteries produce flammable and explosive gases. To avoid personal injury when checking, testing or charging batteries, DO NOT use smoking materials near batteries. Keep arcs, sparks and flames away from batteries. Provide proper ventilation and wear safety glasses. WARNING Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals...

  • Page 39: Drive Belts

    Section 7 DRIvE BELTS All drive belts are spring-loaded and self-tensioning, however after the first 2, 4, 8 and 10 hours of operation, the belts should be checked for proper alignment and wear. Thereafter, check the belts after every 40 hours of operation or weekly, whichever occurs first.

  • Page 40: Tires

    - Note - The front of the machine will have to be raised slightly to remove the blade bolt from the cutter spindle. To install the new cutter blade, put the flat washer onto the blade bolt and slide the bolt into the hole in the cutter blade.

  • Page 41: Illustrated Parts List

    Section 8 ILLUSTRATED PARTS LIST SCAG APPROvED ATTACHMENTS AND ACCESSORIES. Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine. Scag approved attachments and accessories: • GC-STC-V, GC-STWC-61V (p/n 9057, p/n 9058) •...

  • Page 42: 48V & 52V Cutter Decks

    6 7 8 5 25 * 52" cutter deck has a notch for anti-scalp roller 48v & 52v CUTTER DECKS Section 8 64 60 62 61 59 58 66 63 STC 2006 CD4852 Rev.1...
  • Page 43 Section 8 Ref. Part No. Description 461854 Cutter Deck Velocity Plus 461858 Cutter Deck Velocity Plus 43686 Boss, Spring Anchor 04019-04 Nut, 3/8-16 Serrated Flange 481625-01 Wing Nut, 3/8-16 481632 Anti-Scalp Wheel 04003-26 Bolt, Carriage 3/8-16 x 4” 422478 Bracket, Anti-Scalp Wheel 04017-27 Bolt, Serrated Flange 3/8-16 x 1”...

  • Page 44: 61V Cutter Deck

    6 7 8 5 25 61v CUTTER DECK "A" "A" 2 80 Section 8 64 60 62 61 59 58 66 63 STWC 2006 CD61...
  • Page 45 Section 8 Ref. Part No. Description 461862 Cutter Deck Velocity Plus 43687 Boss, Spring Anchor 424371 Bracket, LH Spring Anchor 61V 481625-01 Wing Nut, 3/8-16 481632 Anti-Scalp Wheel 04003-26 Bolt, Carriage 3/8-16 x 4” 422478 Bracket, Anti-Scalp Wheel 04017-27 Bolt, Serrated Flange 3/8-16 x 1” 04043-06 Flatwasher, 5/8”...

  • Page 46: Cutter Deck Controls

    CUTTER DECK CONTROLS Section 8 CUTTER DECK STC 2006 CDC...
  • Page 47 Section 8 Ref. Part No. Description 482624 Rod, Deck Lift Linkage 04020-28 Nut, Jam 1/2-20 LH Thread 481766 Rod End, 1/2-20 Female Thread 04050-10 Retaining Ring, 1/2” External “E” 483062 Slide, Deck Height Adjust 43487 Pin, Deck Lift 423463 Bracket, Cutting Height Adjustment 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4”...

  • Page 48: Sheet Metal Components

    Seat Assy. With Black Arm Rest SHEET METAL COMPONENTS 18 19 Section 8 7 8 20 STC 2008 BSMC...
  • Page 49 Section 8 Ref. Part No. Description 461918 Main Frame Assembly w/decals 04001-73 Bolt, Hex Head 5/16-18 x 3-3/4” 482632 Cushion, Back 04019-04 Nut, Serr. Flange 3/8-16 461989 Plate, Seat Mounting w/decals 482111 Cushion, Lower Seat 43462 Pin Retainer, Spring 481389 Spring Battery (not available through Scag) 423571...

  • Page 50: Stc Foldable Roll-Over Protection System

    Section 8 STC FOLDABLE ROLL-OvER PROTECTION SYSTEM Seat Assy. With Black Arm Rest STC 2008 FOLDING ROPS...
  • Page 51 Section 8 STC FOLDABLE ROLL-OvER PROTECTION SYSTEM Ref. Part No. Description 9512 STC Foldable ROPS Accessory (incl. all items listed) 04001-145 Bolt, Hex Head 1/2-13 x 3-1/2” 04021-19 Nut, Center Lock 1/2-13 483412 Retractable Seat Belt 04040-13 Flatwasher, 1/2-.562 x 1.375 x .109" 481625-03 Thumb Screw, 5/16-18 NC x 3/4”...

  • Page 52: Stc Suspension Seat

    Ref. Part No. Description 9292 Suspension Seat Assembly w/seat belt 04001-178 Bolt, Hex Head 7/16-20 x 1” 04040-11 Flatwasher, 7/16-.500 x 1.25 x .083 483594 Retractable Seat Belt 482950 Armrest Only 482945 Armrest Assembly Kit, LH 482946 Armrest Assembly Kit, RH 482940 Back Cushion Kit 482943...

  • Page 53: Notes

    Section 8 NOTES...

  • Page 54: Drive System Components

    DRIvE SYSTEM COMPONENTS Section 8 STC 2005 DSC...
  • Page 55 Section 8 Ref. Part No. Description 04021-09 Nut, Elastic Stop 3/8-16 04019-04 Nut, Serrated Flange 3/8-16 483087 Spring, Pump Idler 43286 Spacer 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4” 461603 Idler Arm Assy., Pump Drive 04063-14 Key, 5 x 5 x 25mm 483172 Belt, Transmission 483415...

  • Page 56: Engine & Attaching Parts

    Section 8 ENGINE & ATTACHING PARTS 2008 STC EAPBS...
  • Page 57 Section 8 Ref. No. Part No. Description 482932 Engine, Kawasaki 19hp KAI 483875 Engine, Briggs & Stratton 26hp ELS 483281 Engine, Kohler Command 23hp 483685 Engine, Kohler Command 25hp 482900 Engine, Kohler Command 27hp 423770 Bumper, Rear 424107 Shield, Rear (48” & 52”) 41031 Weight, Rear Shield ( 61”...

  • Page 58: Steering Components

    29, 29A STEERING COMPONENTS Section 8 To Pump STC 2002 SSC...
  • Page 59 Section 8 Ref. Part No. Description 482340 Grip, Control Lever 461386 Handle Bar (Includes item 1) 04001-32 Bolt, Hex Head 3/8-16 x 1-1/4” 04030-04 Lockwasher, 3/8” 04041-07 Flatwasher, 3/8-.391 x .938 x .105" 04040-15 Flatwasher, 5/16-.375 x .875 x .083" 04060-01 Roll Pin, Spring 5/32 x 3/4”...

  • Page 60: Brake Components

    40 16 17 35 31 11 3 BRAKE COMPONENTS Section 8 15 14 13 12 STC 2002 BSC...
  • Page 61 Section 8 Ref. Part No. Description 04019-06 Nut, Serr. Flange 1/2-13 48807 Spring 04001-08 Bolt, Hex Head 5/16-18 x 3/4” 04001-163 Bolt, Hex Head 1/2-13 x 3-3/4” 04001-52 Bolt, Hex Head 1/2-13 x 2-1/2” 04021-19 Nut, 1/2-13 Center Lock SEE NEXT PAGE FOR WHEEL MOTOR PART NUMBER IDENTIFICATION 04063-25 Key, Woodruff 5/16 x 1”...

  • Page 62: Wheel Motor Part Number Identification

    WHEEL MOTOR PART NUMBER IDENTIFICATION HYDRO-GEAR PARKER SCAG MADE IN USA 482639 PARKER Part No. Model No.. Serial Number Range 483190 STC48V-19KAI E4600001 to E4601775 STC48V-19KAI-SS E6400001 to E6400045 STC48V-23CV E4700001 to E4700150 STC48V-26BS E4800001 to E4800600 STC52V-25CV E4900001 to E4900778 STC52V-27CV E6200001 to E6200220 STC61V-25CV...

  • Page 63: Notes

    Section 8 NOTES...

  • Page 64: Fuel And Hydraulic System

    FUEL AND HYDRAULIC SYSTEM 3 55 45 46 18 19 33 47 48 35 32 54 48 47 49 ENGINE Section 8 20 19 STC 2007 FHS...
  • Page 65 Section 8 FUEL AND HYDRAULIC SYSTEM Ref. Part No. Description 482643 Pump, BDP-10A-316 (LH) 482644 Pump, BDP-10A-419 (RH) 482266-01 Elbow, 90 Degree 9/16" O-Ring x 3/8" Hose 48572-02 Fitting, 1/2” JIC x 5/8" O-Ring 48811 Hose, 3/8" Pushlock (Specify length) 482573 Bushing 482574...

  • Page 66: Electrical System

    Section 8 ELECTRICAL SYSTEM STC 2008 ESKA...
  • Page 67 Section 8 Ref. Part No. Description 483537 Hourmeter 48298 Fuse, 20 amp 483366 Key, Ignition 462069 Key Assembly w/Fob 48017-04 Nut, Hex 5/8-32 48017-03 Lockwasher, 5/8” Internal 461660 Electric PTO Clutch GT3.5 48798 Switch, Ignition 483957 Switch, PTO 483013 Relay 04031-01 Lockwasher, #10 External Tooth 04020-01...

  • Page 68: Bdp-10A Hydraulic Pump Assembly

    BDP-10A HYDRAULIC PUMP ASSEMBLY PORT "A" SIDE PORT "B" SIDE Section 8...
  • Page 69 Section 8 BDP-10A HYDRAULIC PUMP ASSEMBLY Ref. Part No. Description HG 70516 Housing Kit HG 70573 End Cap Kit HG 50641 Straight Headless Pin HG 50969 Hex Flange Bolt, M8-1.25 x 60mm HG 51232 Housing O-Ring HG 2513027 Charge Pump Kit HG 50273 Gerotor Assembly HG 9004101-1340...

  • Page 70: Replacement Decals And Information Plates

    REPLACEMENT DECALS AND INFORMATION PLATES FORWARD REvERSE 482100 WARNING INSTALL BELT COvER BEFORE OPERATING MACHINE READ OPERATOR'S MANUAL WARNING 483900 MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING PATENTS: 4,487,006 4,885,903 4,920,733 4,967,543 4,991,382 4,998,948 5,042,239 5,117,617 5,133,176 5,826,416 5,832,708 5,865,018 6,192,666 6,766,633...
  • Page 71 Section 8 REPLACEMENT DECALS AND INFORMATION PLATES Ref. Part No. Description 483407 Decal, Danger-Spinning Blades 483406 Decal, Warning-Rotating Blades 483199 Decal, 48V 483200 Decal, 52V 483201 Decal, 61V 483158 Decal, ROPS 483044 Decal, Patents 482100 Decal, Traction Control 481971 Decal, Heavy Duty Commercial 48404 Decal, Metalcraft - Made in USA 483402...

  • Page 72: Electrical Schematic

    ELECTRICAL SCHEMATIC BRIGGS & STRATTON ADAPTER HARNESS MAIN HARNESS ENGINE WHITE ENGINE GROUND SOLENOID SOLENOID SOLENOID "B+" KOHLER ADAPTER HARNESS GRN W/WHT STRIPE WHITE ENGINE PLUG YELLOW SOLENOID "B+" MAIN HARNESS KAWASAKI ADAPTER HARNESS MAGNETO FUEL SOLENOID RED W/YEL STRIPE YELLOW GRN W/WHT STRIPE SOLENOID...
  • Page 73 Cutter decks are warranted against cracking for a period of three (3) years. (parts and labor 1st and 2nd year; parts only 3rd year.) The repair or replacement of the cutter deck will be at the option of Scag Power Equipment. We reserve the right to request compo- nents for evaluation.
  • Page 74 (Piezas y mano de obra) (La garantía de dos años no incluye las conexiones, mangueras, las correas de transmisión). La reparación o el reemplazo de la bomba hidráulica o el motor hidráulico estarán sujetos a discreción de Scag Power Equipment.
  • Page 75 Sección protección máxima darle Encere Scag. autorizado disponible Scag retoque dañadas metal superficies asiento. limpiar para limpiador jabón suave eléctricos. componentes presión. limpiadores limpiadores fría agua cortacésped lave uso, comprimido. aire motor; está mientras equipo parte PRECAUCIÓN TAPICERíA PLATAFORMA pintura. para cortacésped distribuidor...
  • Page 76 motrices diariamente. cada después llantas presiones 7-8. pie/ apriete cuchillas Evite corte. superior parte perno hexagonal corte. perno cuchilla perno espaciador superior. parte hacia aleta instale cuchilla NOTA cuchilla Reemplazo 390S0160 HEXAGONAL PERNO CORTE CUCHILLA CORTE CUCHILLA ESPACIADOR HEXAGONAL CABEZA TUERCA PERNO CORTE...
  • Page 77 filo. mantener para corte borde parte afile Sólo 7-7. Figura bisel mismo corte 7-7. Figura ancho más cuchillas NOTA cuchilla. quemar puede esmeriladora, cuchilla. afilar para lima NOTA CUCHILLAS tirar cuchilla motor desgaste causa cortacésped velocidad disminuye sino produce sólo desafiladas Cortar cuchillas.
  • Page 78 celdas. cubre electrolito asegúrese cortacésped batería quite posible, cargador. antes entibie batería Permita estallar Puede congelada. batería cargador necesitará batería, puede alternador tiempo, completamente descargado batería. carga mantener para motor alternador normales específicas. para batería cargador BATERíA vómito. induzcan líquidos interno, contacto caso...
  • Page 79 inspecciónelo. aire costado. retire aire filtro conjunto cubierta fijan seguros motor. daños prevenir veces elemento verificar puede polvo, mucho NOTA necesario. elemento ocurra semanas, cada cada después aire filtro aire. filtro servicio períodos operación ambiente aire, AIRE ELEMENTO REEMPLAzO MOTOR AIRE combustible Filtro...
  • Page 80 rellenar. combustible tapa quitar antes enfríe permita quemaduras, PELIGRO COMBUSTIBLE Figure instrucciones. para motor manual Consulte primero. ocurra operación horas cada aceite Después, motor. aceite operación, horas primeras MOTOR ACEITE FILTRO para cortacésped este proporcionado operador manual Consulte semanas, cada operación cada después...
  • Page 81 20W50. motor para aceite superior parte 3-1/4” página hidráulico” filtro elemento “Cambio explica como filtro hidráulico, aceite depósito NOTA ajustado. esté drenaje tapón Tapón hidráulico aceite STC2001HODP HIDRÁULICO HIDRÁULICO ACEITE DRENAJE TAPÓN STC2001HODP apropiadamente. recipiente fluido drenar Figura filtro. base drenaje fondo drenaje...
  • Page 82 conexión horas/anualmente) chasis horas/mensualmente) chasis meses) horas/cada chasis horas/semanalmente) 2125 litio blanca lubricación LUBRICACIÓN GRASA puntos Lubricación (500 Grasa (200 Grasa (100 Grasa Grasa Intervalo CONEXIONES 7-1. Figura Sección...
  • Page 83 grasa. tapa instalación grasa. tapa instalar Vuelva superior parte grasa nueva 482028-01, parte número tapón, industriales almacenes Shell servicio Conoco servicio estaciones Exxon chasis 2125 litio blanca chasis chasis chasis chasis chasis chasis UBICACIONES LUBRICANTE Nº 7-1) Scag distribuidor Consulte párrafo párrafo 20W50.
  • Page 84 polvo extremas condiciones párrafo párrafo párrafo conexiones párrafo párrafo párrafo párrafo bloqueo párrafo seguridad 7.10 párrafo llantas párrafo conexiones párrafo 7.13 párrafo párrafo párrafo hidráulicas. mangueras verificar cuidado mucho Tenga párrafo párrafo aceite tornillería OBSERVACIONES RECOMENDADOS bajo mantenimiento procedimientos aire filtro elemento *Limpie...
  • Page 85 posiciones personalizado 4-1/2” Orificio Orificio 5-1/4” 4-3/4” Orificio Orificio montaje Sección corte deflector 4” 3-1/2” Orificio 4-1/4” 3-3/4” Orificio Orificio accesorios Ubicación seleccionada personalizado corte deflector Ajuste 7-Ajuste 6-8. Figura (pulgadas) Altura "B" Ranura (pulgadas) Altura "A" Ranura montaje Ranura...
  • Page 86 pies-lb. torque tornillos montaje. accesorios 6-9. Figura deseada. personalizado corte deflector plataforma tamaño variar puede accesorios referencia. para sólo usados accesorios NOTA corte. plataforma personalizado deflector aseguran accesorios posición corte plataforma corte deflector corte. plataforma “soplos” hojas) (recogida otoño corte ó...
  • Page 87 corte plataforma altura CONTROL VARILLA CDHA 2006 6-6. Figura altura control varilla ambos contratuercas posición corte plataforma infladas estén llantas nivel esté cortacésped asegúrese apropiada altura verificar señalada altura corte misma realiza corte plataforma CORTE PLATAFORMA disparejo. inferior Plus Velocity plataformas superior borde...
  • Page 88 corte plataforma nivel AQUÍ AFLOJE 6-4. Figura corte. nivel ajuste soporte plataforma frontal izquierdo sigue: como plataforma nivel diferentes, iguales. deben medidas Ambas izquierdo lado piso hasta inferior parte desde distancia piso. hasta corte plataforma desde distancia verifique máquina, lado usará.
  • Page 89 página neutral. ajuste haga atrás, hacia lentamente avanza máquina explicó como ajuste realizar NOTA lado. dicho rueda velocidad izquierdo, lado bomba menos varilla causará Esto bloqueo. apriete varilla estirar para Gire izquierdo. lado dirección varilla extremo cada aseguran bloqueo tuercas neutral.
  • Page 90 neutral, (Ajuste atrás. hacia arrastra máquina neutral están dirección control neutrales ajustes realizar DESPLAZAMIENTO freno varilla Ajuste 390S0153-1 AQUÍ AFLOJE freno Ajuste 6-1. FRENO MANGO Scag. autorizado distribuidor apropiado ajuste logra procedimiento NOTA freno. 23). página hacia adelante posición palancas contratuerca alineación control...
  • Page 91 autorizado SCAG distribuidor Consulte autorizado SCAG distribuidor Consulte autorizado SCAG distribuidor Consulte autorizado SCAG distribuidor Consulte autorizado SCAG distribuidor Consulte cuchilla Reemplace nivel inclinación Ajuste seque césped Corte terreno condiciones ajustarse para velocidad Disminuya corte dirección cambiar corte plataforma altura aumentar terreno, velocidad...
  • Page 92 corrija nivel Verifique autorizado SCAG distribuidor Consulte llantas presión ajuste Revise llantas presión ajuste Revise corte dirección cambiar corte plataforma altura aumentar terreno, velocidad reducir tener puede cuchilla autorizado SCAG distribuidor Consulte autorizado SCAG distribuidor Consulte nivel inclinación Ajuste plataforma abajo parte Limpie...
  • Page 93 pase cada traslape Aumente cuchillas Reemplace seque césped Corte terreno condiciones ajustarse para velocidad Disminuya plataforma abajo parte Limpie correa tensión Ajuste máxima motor Opere cuchillas cuchillas correa tensión Ajuste plataforma abajo parte Limpie cuchillas seque césped Corte terreno condiciones ajustarse para velocidad...
  • Page 94 cortacésped. remolque conectado remolque detenerse. distancia permita lentamente tracción pérdida causar equipo peso cuestas. Kg). (113 peso Máximo remolcado. equipo límite para fabricante recomendaciones punto remolcado equipo remolcar. para diseñado enganche tenga máquina equipo personas otras OPCIONAL) (ACCESORIO plataforma liberación PLATAFORMA 2006 LIBERACIÓN...
  • Page 95 Corte Altura Ajuste 2006 AMARRE 4-5. Figura lugar. asegure derecho adelante hacia corte altura ajuste corte. cuchillas potencia ajuste luego corte cuchillas Desconecte girando. estén cuchillas cuando corte altura ADVERTENCIA corte: Para 1/4”. intervalos 5-1/2” hasta desde ajustarse puede cortacésped CORTE ALTURA mismo.
  • Page 96 normal. corte atascado. material sacar para palo encendido. llave apague atascarse, llega descarga atascado. material quitar objeto palo entonces motor apague obstrucción, MOTIVO! NINGÚN TOLVA MANOS GIRATORIAS CUCHILLAS PELIGRO ATASCADO MATERIAL presión Corrija llantas. octanaje saber para motor manual limpio. combustible tanque llene...
  • Page 97 RPM. máximas opere motor adelante hacia velocidad exceso velocidad disminuir corte. velocidad apropiadamente para aceleración máxima motor desconexión. posición interruptor plataforma, transmisión normal. adquiere cortacésped mientras embrague platos engrane plataforma. transmisión accionar chirrido escucharse NOTA cortador accionamiento Interruptor accionada. posición panel ubicado amarillo,...
  • Page 98 plataforma levantar cómo sobre para 12-14 artículos 4-1, sección ángulo reborde desplácese plataforma Levante sobre detendrá cortacésped reborde sobre adelante hacia IMPORTANTE desplazamiento. velocidad dirección, controles operar cortacésped. suave operación dirección palancas suave NOTA derecha. rápido más palancas, tiren atrás hacia dirección derecha...
  • Page 99 7.3.) depósito. hidráulico aceite sección (Vea operación. horas después aceite filtro motor horas. correas todas alineación correcta HORAS APROxIMADAMENTE ARRANQUE PROCEDIMIENTOS propiedad. causar terceros usted lesiones puede hacerlo interruptor; ponga desconecte funcionando desconectado sistema cortacésped ADVERTENCIA accionado. estacionamiento corte cuchillas neutral dirección control...
  • Page 100 2007 ASIENTO SUJECI”N SEGURO LIBERADOR HOR”METRO SEGURIDAD CINTUR”N CORTE PLATAFORMA LIBERACI”N PALANCA DIRECCI”N DERECHO CONTROL CORTE ALTURA AJUSTE Reinicia después. horas continuará establecida hora destellar empezará programado hidráulico. sistema aceite cambios mantenimiento para recordatorios posición está encendido interruptor cuando Opera motor.
  • Page 101 giros. traslape para cuota tabla día. Scag ...23,7 20,2 61” 52” ...1150# ...1100# 54” 54” 66” 66” 62” 53” 73,5” 64,5 60,5”... 46,5” 46,5”...46,5” 80” 80” cuartos 2-1/2 capacidad ...Nylon; micras (spin-on) roscado Tipo Ogura pesado servicio ...Embrague apretado auto ajustado, Auto Kevlar.
  • Page 102 radial borde capas, cuatro neumática, radial borde capas, cuatro neumática, cónicos rodillos rodamientos motrices ruedas ambas ejes frenos conectado palanca amortiguadores rueda punta accionado palanca doble torque alto fundido hierro Hydro-Gear™ motor operación desplazamiento descarga válvulas cc/rev. torque alto fundido hierro motores variable...
  • Page 103 483300 Decals Safety &STWC 2007 482709 483023 483425 482291 483411 483397 483406 481568 483407 483402 SEgURIDAD INSTRUCTIvAS CALCOMANÍAS Sección...
  • Page 104 herramientas protección ropa desconectarlo conectarlo Desenchufe llamas. chispas bien abierta área baterías techo. llamas cerca combustible almacenamiento durante combustible fuego cerca máquina antes enfríe motor gangrena. producirse puede horas pocas unas dentro retirado debe piel, inyecta fluido Scag. autorizado distribuidor contacte hidráulico, sistema...
  • Page 105 almacenada. energía tengan presión cuidadosamente necesario. componentes apoyar para gato dañadas. desgastadas todas Reemplace funcionamiento. condiciones buenas partes cuchillas. enderece NUNCA cuchillas. cuchillas. servicio CUIDADO guantes cuchillas forre cuchillas. revisar máquina. entrenamiento personal estacionamiento. accione plano terreno máquina aceite grasa, exceso hojas, motor...
  • Page 106 seguridad cinturón Inspección CORREA TEJIDO INSPECCIONE SEGURO HEBILLAS INSPECCIONE Figura agrietada. dañada deformada, gastada, excesivamente placa determine funcionamiento verificar para seguro cinturón sistema reemplace estas existen deteriorado. correas estas física resistencia lleno decolorado extremadamente áreas estas correas extrema. suciedad polvo rayos expuestas áreas...
  • Page 107 sujeción. soporte cinturón Quite 2-2. Figura perillas apriete horquillas pasadores asegúrelos través bloqueo pines vertical. barra suba vuelco, contra barra baja. posición vuelco contra 2-2. Figura bloqueo. pines horquillas chaveta pasadores 2-1. Figura izquierdo lado barras perilla afloje vuelco, contra barra absolutamente cuando...
  • Page 108 muerte. daño causar pueden carbono contienen peligrosos apropiada. ventilación edificio dentro motor PELIgRO causar para como calientes suficientemente estar pueden zonas Estas detenerlo. inmediatamente funcionando, mientras silenciador motor PRECAUCIÓN operar reiniciar antes daño extraño; objeto golpear daños sufrido para detenerse deben accesorios usándolos.
  • Page 109 rápidamente. equipo sepa controles todos función OPERACIÓN CONSIDERACIONES máquina. arrancar buen estén líneas hidráulicas todas apretadas conexiones todas correctamente estén cuchilla pernos frecuentes intervalos instalados. opcionales desmenuzadora recogedor baja instalada lateral descarga tolva equipo. requisitos sobre informarse para locales Contacte S279.
  • Page 110 arrojados recogidos pudieran todos cortada debe juguete. jueguen suban niños área. ingresa niño máquina atento Esté operador. distinto adulto atento cuidado fuera niños Mantenga personas otras niños apropiadas. instrucciones esta operen adultos permita este operen niños PREvIAS CONSIDERACIONES correcta operación prácticas todos comprenda...
  • Page 111 operador manual Desconectar – cortante Elemento Conectar – cortante Elemento básico Símbolo – cortante Elemento lanzados objetos Peligro polea resorte Tensión giratoria Cuchilla Transmisión DESCRIPCIÓN Sección curiosos volcadura. graves sujeción asiento soporte asiento Marca operación Lineal Lento Aceite SÍMBOLO alejados Mantenga lanzados objetos...
  • Page 112 puede garantía período durante estos realizado autorizado componente. fabricante autorizado local agente encontrar Scag contactar importante limitada, durante componentes estos servicio servicio rutina mantenimiento proporcionan sólo manual; están cambios, cajas hidráulicas, motor, reparación servicio TREN MOTOR adelante. hacia dirección cara normal operación sentado...
  • Page 113 Sección ...después ...62 ...60 ...58 ...56 ...54 ...52 ...50 ...48 ...44 ...42 61v...40 ...38 ...37 ...37 ...38 LLANTAS...37 ...36 ...36 ...35 ...34 ...33 MOTOR...33 ...32 ...30 RECOMENdAdOS ...29 ...27 ...25 ...25 ...25 ESTRANGuLACÓN ...23 ...23 ...23 ...20 CORTE CONdCONES Contenido Tabla NFORMATvAS pLACAS...
  • Page 114 ...19 ...18 ...18 ...17 ...17 ...17 ...17 CORTE) ...15 ...15 ...14 ...14 ...13 ...13 ...12 ...12 ...12 ...12 TRACTOR..11 ...9 ...6 ...4 ...3 ...3 ...3 ...3 ...2 TRANSMSÓN ...1 ...1 ...1 OpCONAL) ENGANChE CéSpEd CORTAR dETENdO MOTOR CORTACéSpEd CORTACéSpEd (CuChLLAS pLATAFORMA dRECCÓN...
  • Page 115 número etiqueta aparece E6399999 E6300001 E5099999 E5000001 E8999999 E8900001 E6299999 E6200001 E4999999 E4900001 E4899999 E4800001 E9099999 E9000001 E4799999 E4700001 E4699999 E4600001 para: ilustradas partes TRANSPORTE, OPERACIÓN, INTERÉS, CONOCIMIENTO, OPERADOR! COMO usarlo debe persona móviles. cable quite máquina descarga tolva control tracción OSHA.
  • Page 116 E.E.U.U. IMPRESO 9/2009 IMPRESO 03250 Nº PIEZA Antes interior. específi mantener ayudar seguridad manual Este STC61V-27CV STC61V-25CV STC52V-27CV-SS STC52V-27CV STC52V-25CV STC48V-26BS STC48V-25CV STC48V-23CV STC48V-19KAI Tiger OPERADOR MANUAL Inc. incluida. información cubierta indicados modelos ciencia. efi máxima fi ajuste procedimientos puede manual este lectura...
