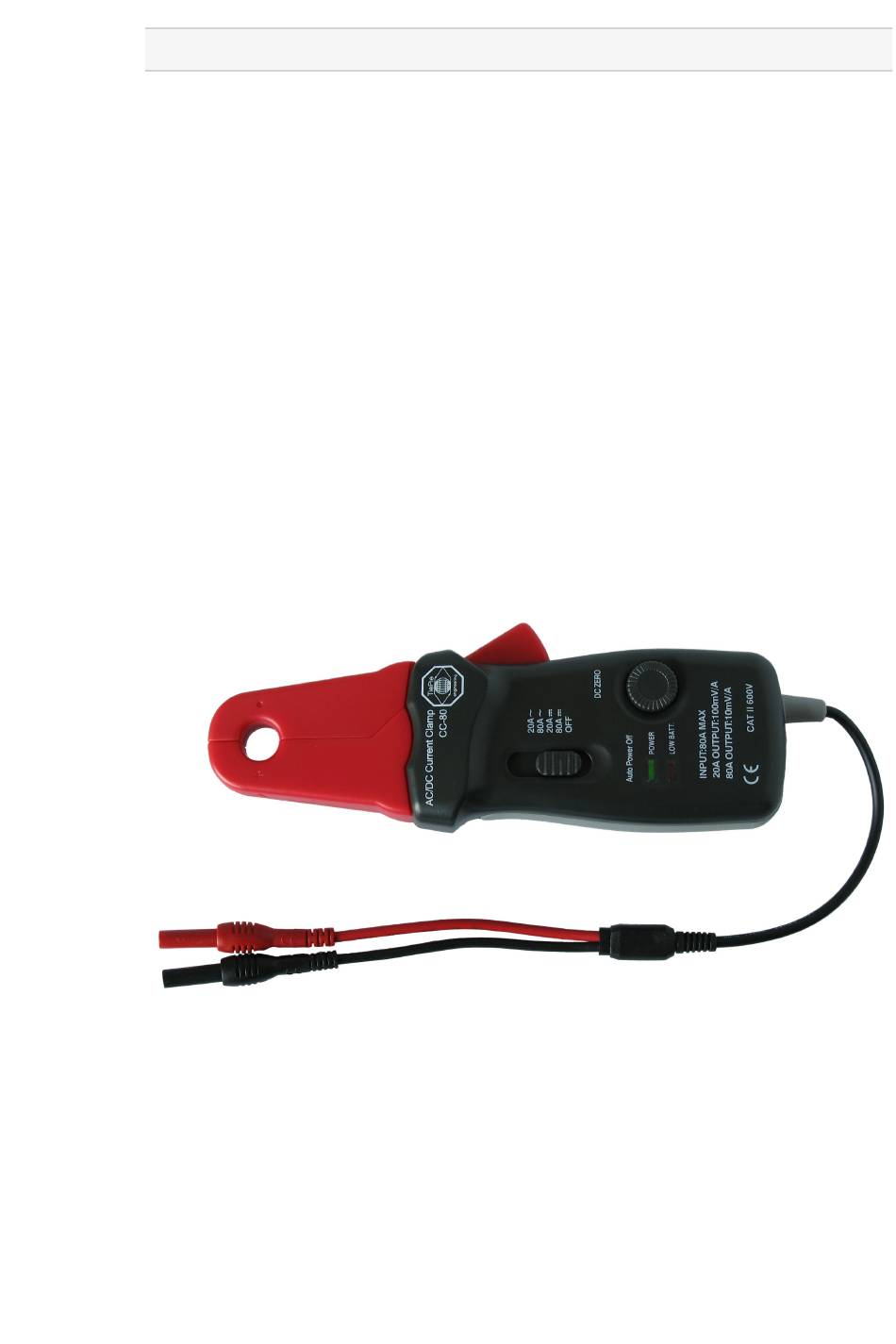

  • Page 1 Current Clamp TP-CC80 User’s manual Revision 1.3...
  • Page 2 The Current Clamp TP-CC80 is designed for indoor use only • Do not use the Current Clamp TP-CC80 if it does not operate properly. Have the equipment inspected by qualified service personal. If necessary, return the Current Clamp TP-CC80 to TiePie engineering for service and repair to ensure that safety features are maintained.

  • Page 3: Ec Declaration Of Confirmity

    Koperslagersstraat 37 8601 WL Sneek The Netherlands EC Declaration of confirmity We declare, on our own responsibility, that the product Current Clamp TP-CC80 for which this declaration is valid, is in compliance with EN 55011:2009/A1:2010 EN 61000-6-1:2007 EN 55022:2006/A1:2007 EN 61000-6-3:2007...
  • Page 4 When the indicator lights, the battery should be replaced Output terminal – (black) This terminal is used as output for DCA – polarity and ACA. Output terminal + (red) This terminal is used as output for DCA + polarity and ACA. Current Clamp TP-CC80...

  • Page 5: Dc Current Measurements

    Connect the negative output of the Current Clamp TP-CC80 (black) to the negative side of the input of the measuring instrument. Connect the positive output of the Current Clamp TP-CC80 (red) to the positive side of the input of the measuring instrument.

  • Page 6: Battery Replacement

    Remove the screw from the battery compartment at the back of the Current Clamp TP-CC80. Remove the old battery. Insert a new 9 V NEDA 1604, IEC 6F22 battery. Restore the battery compartment cover and tighten the screw. Dispose of the old battery properly Current Clamp TP-CC80...

  • Page 7: Specifications

    ±(4% ±30 mA) (100 mA to 40 A, 2 kHz to 10 kHz) ±(6% ±30 mA) (100 mA to 40 A, 10 kHz to 20 kHz) ±(8% ±0.3 A) (40 A to 80 A, 40 Hz to 20 kHz) Current Clamp TP-CC80...
  • Page 8 TiePie engineering Tel.: +31 515 415 416 Koperslagersstraat 37 Fax: +31 515 418 819 8601 WL Sneek E-mail: sales@tiepie.nl The Netherlands www.tiepie.com This information is subject to change without notice. Copyright © 2018 TiePie engineering. All rights reserved. Revision 1.3, August, 2018.
