Current Clamp TP-CC600
User's manual
Revision 1.2

Advertisement

Table of Contents
loading

Related Manuals for TiePie TP-CC600

Summary of Contents for TiePie TP-CC600

  • Page 1 Current Clamp TP-CC600 User’s manual Revision 1.2...
  • Page 2 flammable gases or fumes. The Current Clamp TP-CC600 is designed for indoor use only Do not use the Current Clamp TP-CC600 if it does not op- erate properly. Have the equipment inspected by qualified service personal. If necessary, return the Current Clamp TP- CC600 to TiePie engineering for service and repair to ensure that safety features are maintained.

  • Page 3: Ec Declaration Of Confirmity

    Koperslagersstraat 37 8601 WL Sneek The Netherlands EC Declaration of confirmity We declare, on our own responsibility, that the product Current Clamp TP-CC600 for which this declaration is valid, is in compliance with EN 55011:2009/A1:2010 EN 61000-6-1:2007 EN 55022:2006/A1:2007 EN 61000-6-3:2007...

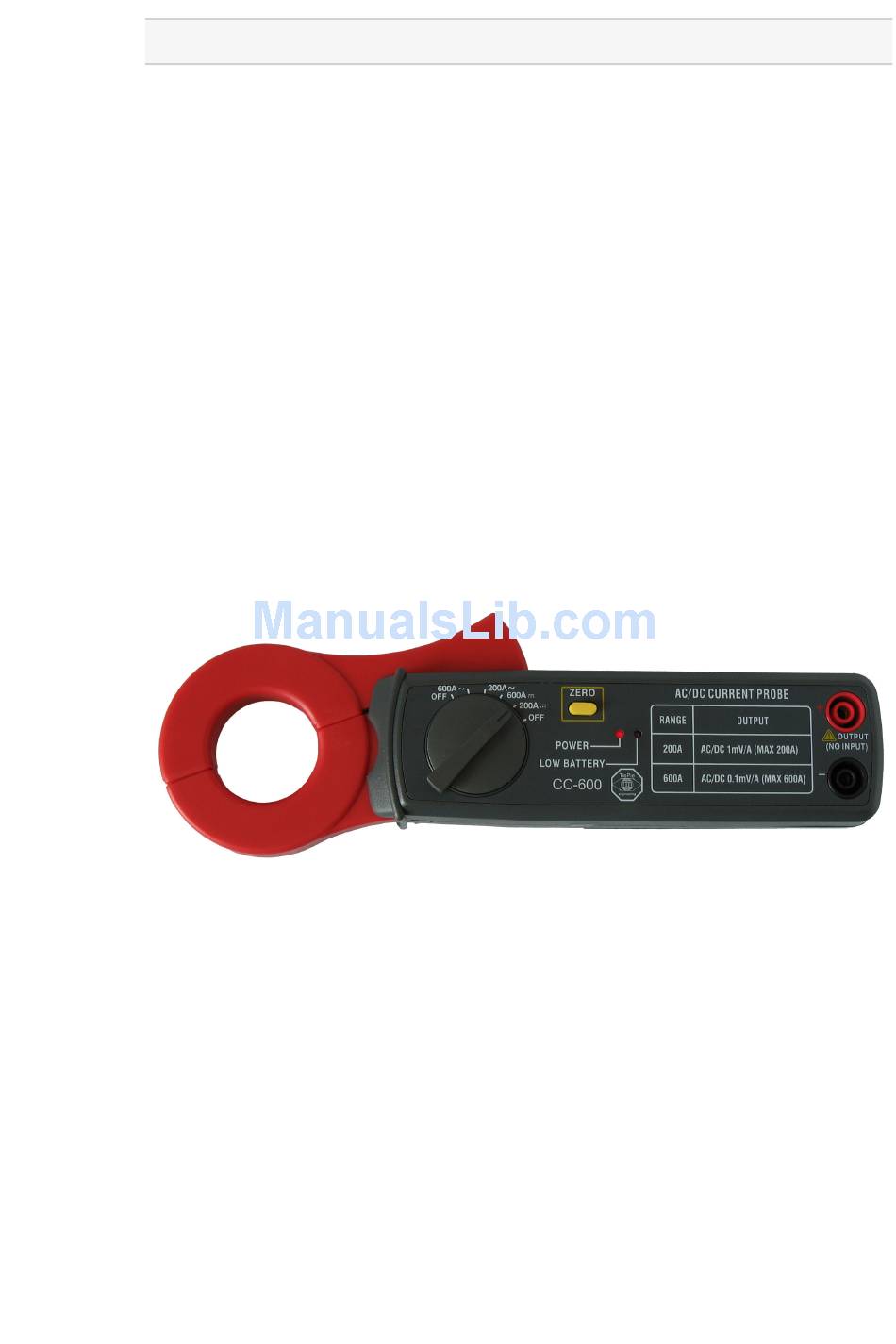

  • Page 4 When the indicator lights, the battery should be replaced 7. Output terminal – (black) This terminal is used as output for DCA – polarity and ACA. 8. Output terminal + (red) This terminal is used as output for DCA + polarity and ACA. Current Clamp TP-CC600...

  • Page 5: Dc Current Measurements

    (black) to the negative side of the input of the measuring in- strument. Connect the positive output of the Current Clamp TP-CC600 (red) to the positive side of the input of the mea- suring instrument. 3. Switch the measuring instrument on and set it to 200 mV DC, 400 mV DC or 2 V DC full scale input range.

  • Page 6: Battery Replacement

    1. Turn the power off and disconnect the test leads from the Current Clamp TP-CC600. 2. Remove the screw from the battery compartment at the back of the Current Clamp TP-CC600. 3. Remove the old battery. 4. Insert a new 9 V NEDA 1604, IEC 6F22 battery.

  • Page 7: Specifications

    DC 200 A range (3.0% + 0.6 A) DC 600 A range (3.5% + 3 A) AC 200 A range, 50 to 400 Hz (3.5% + 0.4 A) AC 600 A range, 50 to 400 Hz (4.0% + 4 A) Current Clamp TP-CC600...
  • Page 8 Tel.: +31 515 415 416 Koperslagersstraat 37 Fax: +31 515 418 819 8601 WL Sneek E-mail: sales@tiepie.nl The Netherlands www.tiepie.com This information is subject to change without notice. Copyright c 2017 . All rights reserved. Revision 1.2, November, 2017.
