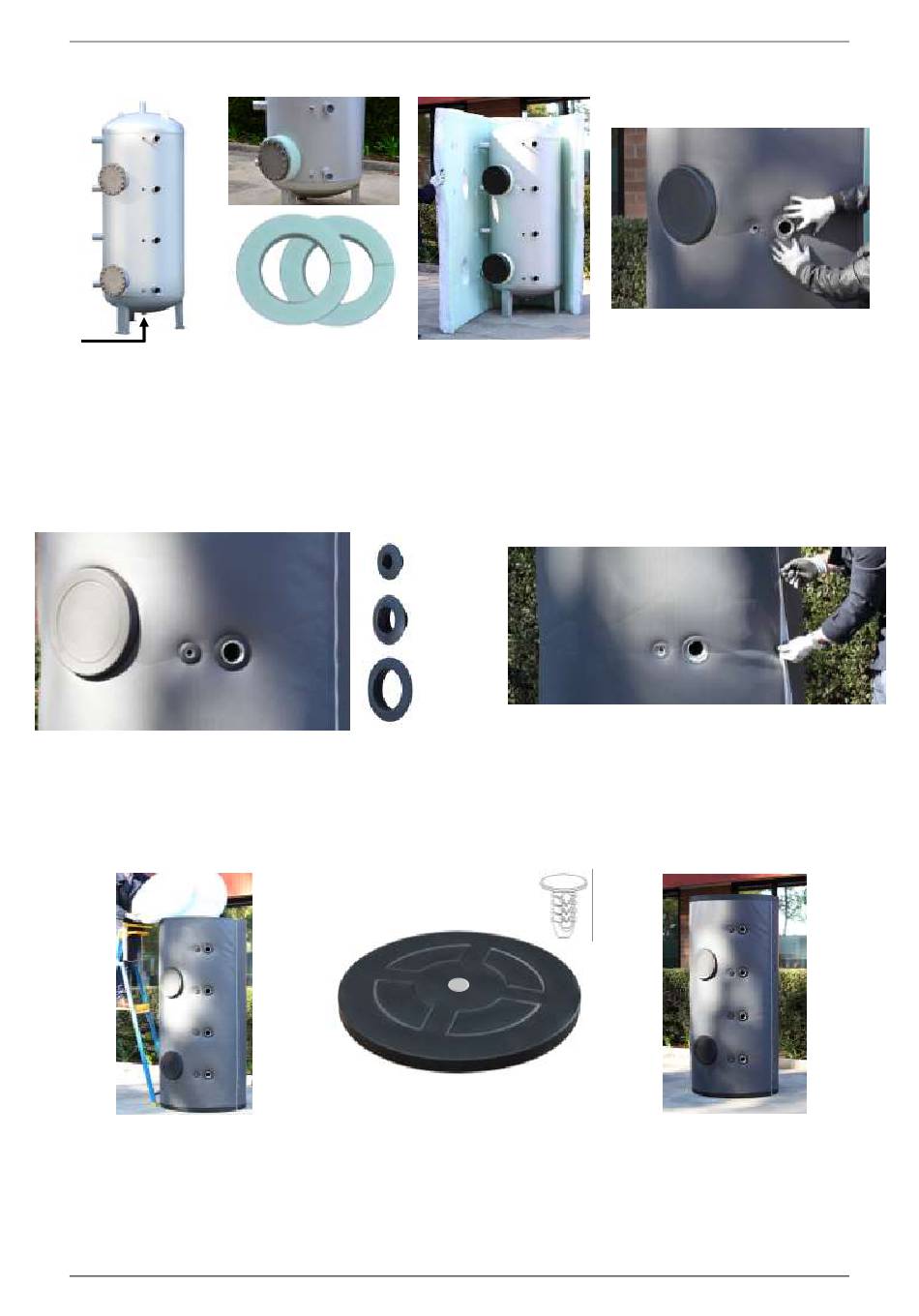

INSTALLATION
PVC OUTER COVER
Ensure the drain is fitted
or plugged. Ensure the
tank is in position where
it's going to be installed,
as it can be difficult to
move once the insulation
is attached.
There are 14 plastic fitting surrounds, these vary in size
and should fit tightly around the fitting. The fitting surrounds
are placed on after the insulation and should sit flush with
the front of the fitting. Attach the fitting surrounds as each
section is put in place, this will help to hold the section in
the correct position as each is added.
There are two round pieces of
insulation that fit on top of the tank.
The smaller white high density foam
piece fits over the top fitting and the
larger green piece fits around the
white piece.
Fit the two green foam insulation rings around the
upper and lower flange. Fit the two black plastic
flange covers over the foam ring.
The insulation can come in multiple sections that
will vary both in quantity and layout depending on
the size of the tank. These sections zip together
along the edges.
The large plastic lid may be supplied in one piece or two semi circles depending
on the tank size. Place the large plastic lid or the two halves on top of the tank.
If supplied in two semi circles use the plastic plugs (supplied) to join along where
the two halves meet. Fit the final top fitting surround in the centre.
Line up the section that has the two
larger holes with the flanges on the
tank. The bottom of the insulation
should be touching the ground. If there
are further holes in the section fit them
over the fittings ensuring the insulation
is clear of the fittings.
When the first panel is in place, fit the section to the left
using the same process. Where the sections meet zip
together. Make sure to relieve the stress from the zipper
by pulling in the two sections either side of the zipper.
Note: failure to observe this precaution may result in
damage to the zipper / insulation.
16
