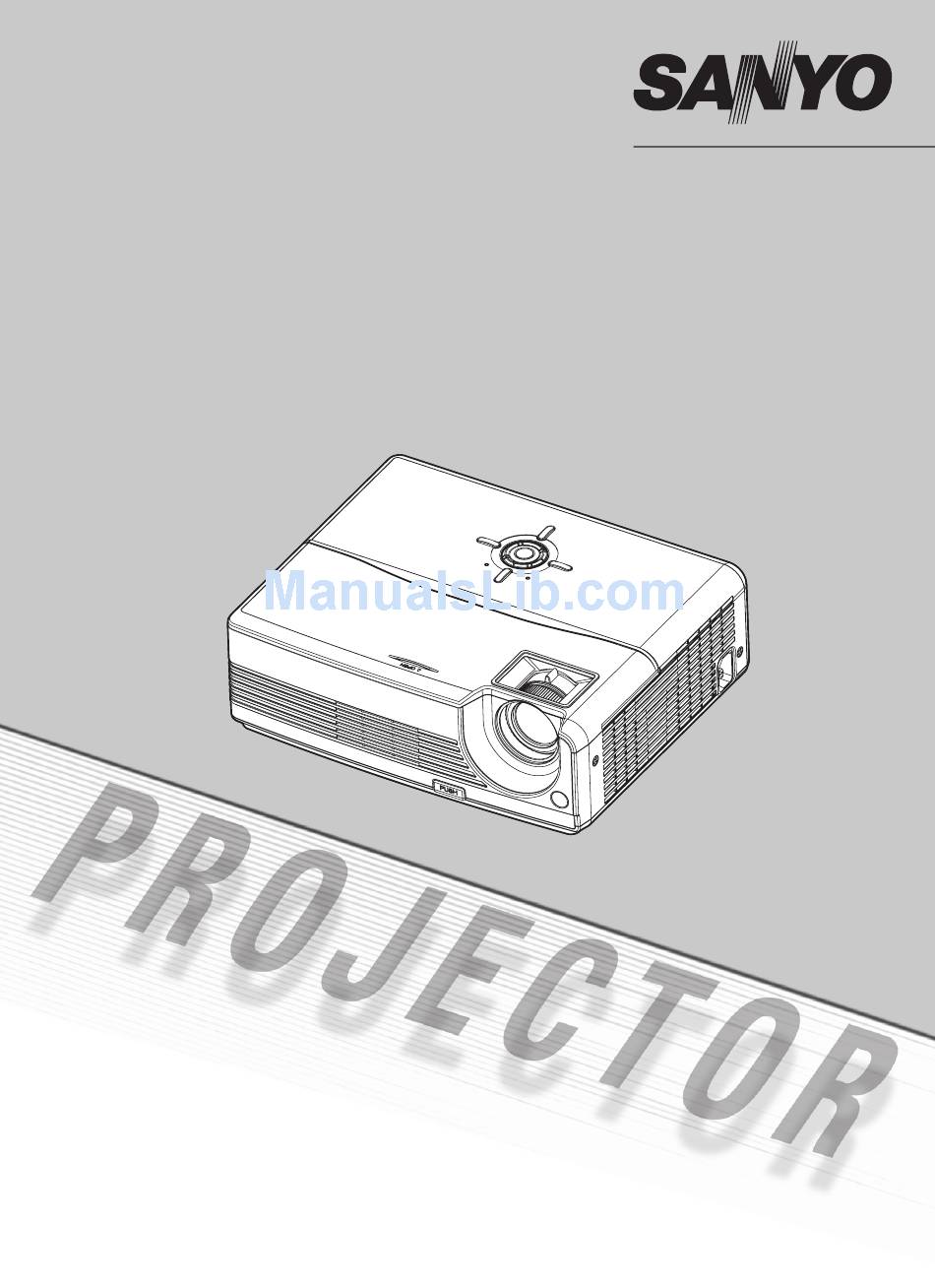

Multimedia Projector/Projecteur Multimédia
Multimedia-Projektor/Proyector Multimedia
Proiettore Multimediale/Projetor Multimédia
OWNER'S MANUAL/MODE D'EMPLOI
BEDIENUNGSANLEITUNG/MANUAL DEL USUARIO
MANUALE D'USO/MANUAL DO PROPRIETÁRIO
MODEL/MODÈLE/MODELO/MODELL/MODELLO/MODELO
PDG-DSU21N/DSU21E/DSU21B
Advertisement
Table of Contents
Related Manuals for Sanyo DSU21B
Summary of Contents for Sanyo DSU21B
- Page 1 Multimedia Projector/Projecteur Multimédia Multimedia-Projektor/Proyector Multimedia Proiettore Multimediale/Projetor Multimédia OWNER'S MANUAL/MODE D'EMPLOI BEDIENUNGSANLEITUNG/MANUAL DEL USUARIO MANUALE D'USO/MANUAL DO PROPRIETÁRIO MODEL/MODÈLE/MODELO/MODELL/MODELLO/MODELO PDG-DSU21N/DSU21E/DSU21B...
-
Page 3: Safety Precaution
Minimum clearance maintained. If the projector is to be built into a compartment similarly minimum distances must be maintained. not cover the ventilation slot on the projector. - Page 4 KCA. SANYO FISHER Sales (Europe) GmbH Stahlgruberring D-81829 Germany SANYO Electric Co., Ltd. 1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan EN-2 Notes on Lithium Battery (CARIFORNIA USA ONLY) This product uses a Lithium Battery which contains Perchlorate Material - special handling...
-
Page 5: Safety Instructions
The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers. -
Page 6: Air Circulation
When the projector is not in use for an extended period, put it into a suitable case with the lens side up to protect the projector. - Page 7 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818)998-7322 The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).AC Power Cord has a grounding-type AC line plug.
- Page 8 If the supplied AC Power Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent signal interference due to voltage fluctuations.
-
Page 9: Table Of Contents
Remote Control ...14 Replacing the Battery ...15 Remote Control Operation ...16 Installation ...17 Connecting the Projector ...17 Powering On/Off the Projector ...18 Adjusting the Projector ...19 Menu Operation ...21 Maintenance ... 26 Cleaning the Lens ...26 Cleaning the Projector Housing ...26 Replacing the Lamp ...27... -
Page 10: Introduction
Introduction Projector Features The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use. The projector offers the following features: Single chip 0.55" Texas Instruments DLP SVGA (800 x 600 pixels) Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling compression... -
Page 11: Package Contents
Package Contents When you unpack the projector, make sure you have all these components: Projector with Lens Cap (USA: J2552-0109-00) (UK: J2552-0108-00) (Europe: J2552-0107-00) Remote Control (IR) Save the original shipping carton and packing material; they will comein handy if you ever to ship your unit. -
Page 12: Projector Overview
Projector Overview Front View Lens cap Elevator button Lens cap strap Projection lens Front IR remote control sensor Speaker EN-10 Ventilation holes AC power socket Zoom ring Focus ring Control panel Lamp cover... -
Page 13: Rear View
Connection ports Kensington lock Rear IR remote control sensor Ventilation holes Bottom View Elevator foot Ceiling mount (3-M4*6) Tilt-adjustment foot This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package. EN-11... -
Page 14: Using The Product
Enter to sub-menu and confirm the menu selection. Activate in Color Setting, Lamp Counter Reset and Factory Default menu operations. AUTO PC Resynchronize the projector to the input signal from a computer. ON / STAND-BY Turn the projector on or off. -
Page 15: Connection Ports
COMPUTER IN / COMPONENT IN Connect image input signal (Analog RGB or Component) to this jack. RS-232C Connect RS232C cable to RS232C port when operating the projector via a computer. S-VIDEO IN Connect S-Video output from video equipment to this jack. -
Page 16: Remote Control
- Act as mouse left button when mouse function is selected. POINTER(Computer mode only) Toggle this button to activate keyboard function or mouse function when your projector is connected with a USB cable. (Refer to section titled "POINTER function" for further details.) KEYSTONE + / - Correct the keystone distortion. -
Page 17: Replacing The Battery
Replacing the Battery For the first time use: Remove the transparent insulation tape by pulling it before use. For battery change: Remove the battery holder. Remove the old Lithium coin cell and install new one (CR2025). Ensure that the side with the mark "+" is up. Push the battery holder back into the remote control until you feel a click. -
Page 18: Remote Control Operation
Remote Control Operation Point the remote control at the infrared remote sensor and press a button. Operating the projector from the front Operating the projector from the rear The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor. -
Page 19: Installation
The figure above is a sample connection. This does not mean that all of these devices can or must be connected simultaneously. The cables that come with the projector may differ from the above illustration. The included cables are based on actual shipment delivery. -
Page 20: Powering On/Off The Projector
When the LAMP LED begins flashing, the projector has entered stand-by mode. If you want to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered stand-by mode. Once in stand-by mode, simply press I/ button to restart the projector. -
Page 21: Adjusting The Projector
The tilt-adjustment foot in the bottom of the projector will fall from the projector when you loosen the foot to the maximum. In this case, turn it back into position. Do not let the tilt- adjustment foot fall from the projector when making the adjustment. -
Page 22: Adjusting Projection Image Size
Position the projector in a horizontal position; other positions can cause heat build-up and damage to the projector. Make sure the heat ventilation holes are not blocked. Do not use the projector in a smoky environment. Smoke residue may cause build-up on critical parts (i.e. DMD, lens assembly, etc.) EN-20 127.5... -
Page 23: Menu Operation
Menu Operation The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. Picture Computer Image Video Image Sound Setting Language Factory Default 0 - 100 Brightness Contrast 0 - 100... -
Page 24: How To Operate
To exit OSD, Press the Menu button on the control panel or the MENU button on the remote control again. The OSD menu will close and the projector will automatically save the new settings. Picture (Computer / Video Mode) Brightness Brighten or darken the image. - Page 25 4:3 : The input source will be scaled to fit the projection screen. 16:9 : The input source will be scaled to fit the width of the screen. Aspect Ratio (Video Mode) Select how the picture fits on the screen: 4:3 : The input source will be scaled to fit the projection screen.
- Page 26 Setting (Computer / Video Mode) Menu Position Choose the menu location on the display screen. Mounting Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly. Logo Choose to display the logo or not.
- Page 27 Input Search Automatically scan the input source. ECO Mode Use this function to dim the projector lamp light output which will lower power consumption and increase lamp life. Highland Turning on Highland mode operates the fans at full speed continuously to allow for proper high altitude cooling of the projector.
-
Page 28: Maintenance
Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first. -
Page 29: Replacing The Lamp
The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury inside the lamp will go out of the projector. Leave the area immediately if the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. - Page 30 Since the lamp is made of glass, do not drop the unit and do not scratch the glass. Do not reuse the old lamp. This could cause the lamp to explode. Be sure to turn off the projector and unplug the AC power cord before replacing the lamp.
-
Page 31: Specifications
Specifications Display Type Single 0.55" DLP Resolution (Pixels) SVGA (800 × 600) Lens Manual Zoom (1.1x) Screen Size 30” – 300” Lamp 180W Input Source D-Sub 15 pin, S-video, composite video, USB AUDIO IN (stereo phone jack), RS-232C Video Compatibility NTSC3.58, NTSC4.43 PAL-60, M, N SECAM... -
Page 32: Appendix
Change the lamp. If the lamp is off, then the ballast will become malfunction. Solid The projector is shutting and the fan motor is Solid cooling the lamp for shutdown. Do not unplug the power cord or turn the power off before the Lamp LED changes to flashing. -
Page 33: Compatibility Modes
Compatibility Modes Computer: Compatibility Resolution 640 x 480 SVGA 800 x 600 1024 x 768 SXGA 1152 x 864 1280 x 960 1280 x 1024 WXGA 1280 x 768 1280 x 800 Video: Signal Horizontal Frequency (kHz) 480i 480p 576i 576p 720p 720p... -
Page 34: Troubleshooting
Use the remote control within the effective range. Aim the remote control at the screen or at the front or back of the projector. Move the remote control so it is more directly in front of or behind the projector and not as far to the side. -
Page 35: Serial Control Interface
0-9 and a-f) for controlling the projector. Command Format The command is sent from PC to the projector with the format as below table. The projector decodes the command and returns the confirmation 'ACK' = '06'. -
Page 36: Pointer Function
Configuration of RS-232C Terminal Mini DIN 6 pin POINTER function Connect the projector and PC with USB cable. Press POINTER button on the remote control, and its flow follows as below: Normal mode Mouse mode Keyboard mode Available button Icon... - Page 38 Printed in China Part No. 1AA6P1P5587-- (KA7AA) SANYO Electric Co., Ltd.
