Using the Component Audio/Video Input Jacks

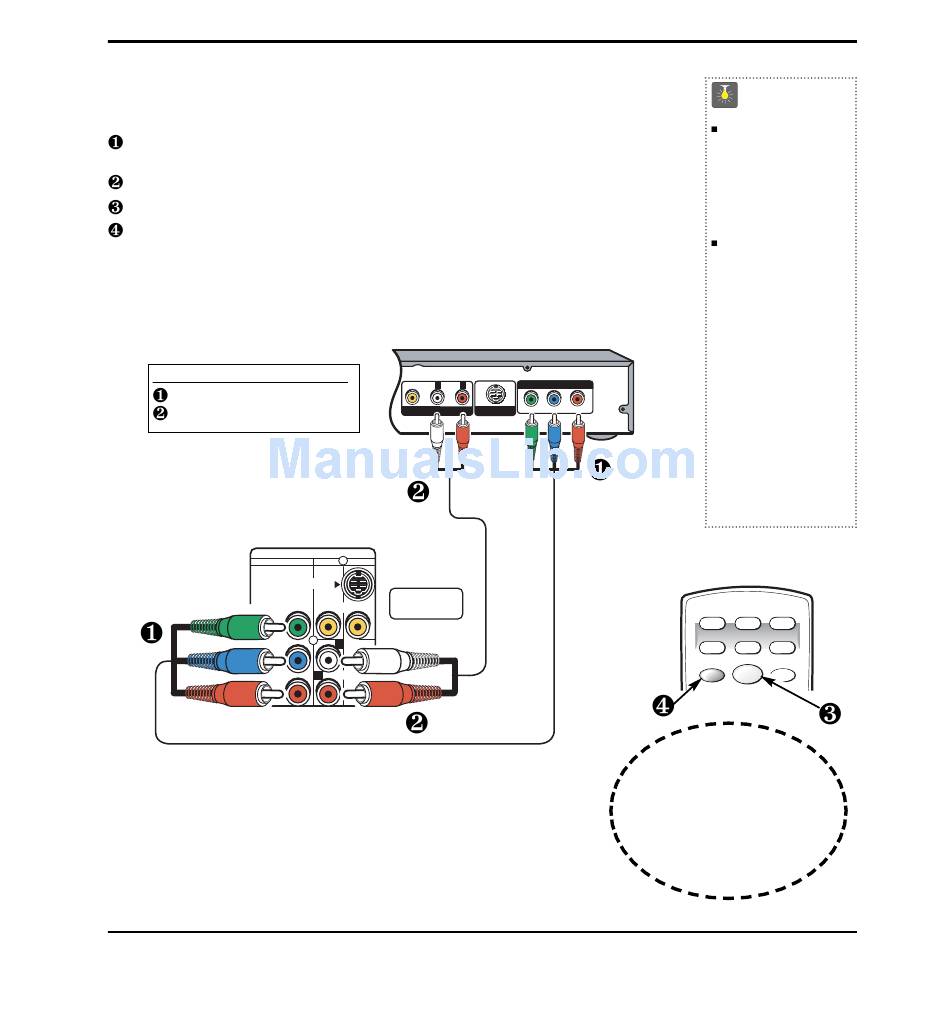

CONNECTING A DVD PLAYER
Switch off TV and external equipment before connecting cables. (Cables are not supplied.)
Connect a DVD Player or other equipment's interlaced Component Video Out to the TV
Component Video In (Y-Pb-Pr) Jacks.
Connect the DVD Player's Audio Out to the TV A/V2 Audio In (L/R) Jacks.
Press POWER to turn on the TV. Turn on external equipment also.
To access Audio/Video inputs, press the INPUT key to select COMPONENT2.
Notes: Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input
jacks.
Connect equipment to the component video inputs or the AV2 video input, but not
both types at the same time.
What you will need for connections:
Component video cable – 1
Audio Cable – 1
TV BACK
VIDEO AUDIO INPUT
COMPONENT
Y
P
P
VIDEO L AUDIO R
A/V OUT
AV2 AV1
S-VIDEO
UHF/VHF/CATV
VIDEO
75Ω
(MONO)
b
L
R AUDIO
r
DVD Player
COMPONENT VIDEO OUT
S-VIDEO OUT Y P P
B R
connecting cables to
access the A/V inputs.
There is NO need to tune
Connect a DVD Player to Component AV In
QuickTips
You may be able
to use the TV
remote control to
operate your DVD
Player. (See
pages 10~12.)
A solid Blue screen
with Component2
displayed means that
the Video mode is
selected, but no
signal is being
detected at the
Component jacks.
Check connection,
and turn on external
equipment.
