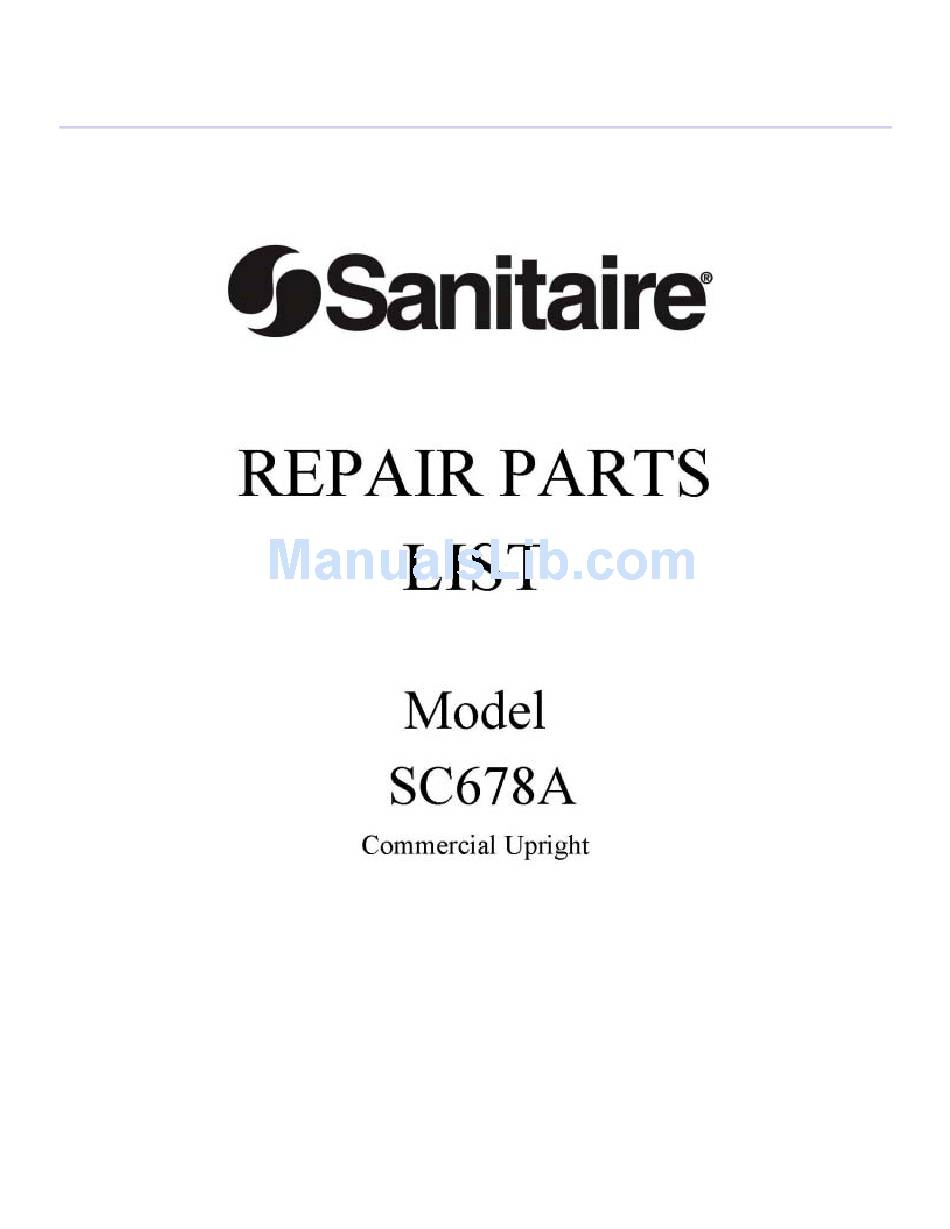

- Page 1 Print Preview Page 1 of 1 Cover - SC678A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6433&ModelID=2070&... 3/1/2007...
- Page 2 Print Preview Page 1 of 2 Base and Hood - SC678A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6428&ModelID=2070&... 3/1/2007...
- Page 3 BUTTON - SWITCH 37989 CLIP - SWITCH 30517 GASKET - MOTOR SEAL 24834A-3 PEDAL - FOOT 37034 SPRING - ADAPT RETAINER 53238-11 SCREW PACKAGE 36263 COVER - WHEEL http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6428&ModelID=2070&... Base and Hood - SC678A Description Page 2 of 2 Comments 3/1/2007...
- Page 4 Print Preview Page 1 of 2 Furniture Guard and Brush Roll - SC678A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6429&ModelID=2070&... 3/1/2007...
- Page 5 BELT PKG ASSY (UPRIGHT) 38138 CAP & BEARING ASSEMBLY 26059A CAP - COVER 55015 CLIP - WIRE 38218-1 BRACKET - BUSHING 25922-1 BOTTOM PLATE ASSEMBLY http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6429&ModelID=2070&... Furniture Guard and Brush Roll - SC678A Description Page 2 of 2 Comments 3/1/2007...
- Page 6 Print Preview Page 1 of 2 Handle - SC678A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6431&ModelID=2070&... 3/1/2007...
- Page 7 53238-13 SCREW PACKAGE 38183-1SV HANDLE SOCKET ASSEMBLY 53213-5 NUTS - PACKAGE 10 53145 BOLT PACKAGE (10) 35293-8 GRIP - HANDLE 25329-16SV HANDLE ASSEMBLY (UPPER) 12637-8 TUBE - HANDLE (LOWER) http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6431&ModelID=2070&... Handle - SC678A Description Page 2 of 2 Comments 3/1/2007...
- Page 8 Print Preview Page 1 of 2 Motor - SC678A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6430&ModelID=2070&... 3/1/2007...
- Page 9 FAN BLOWER - MOTOR 37012-2 PULLEY - MOTOR DRIVE 53131-1 SCREW PACKAGE (10) 53470-3 ARMATURE - CARTONED 54171-1 MOTOR BASE ASSEMBLY 53148 WASHER - FAN PACKAGE (10) 54811 FAN WASHER - PACKAGED http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6430&ModelID=2070&... Motor - SC678A Description Page 2 of 2 Comments 3/1/2007...
- Page 10 Print Preview Page 1 of 2 BAG AND WIRING DIAGRAM - SC678A http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6215&ModelID=2070&... 3/1/2007...
- Page 11 77491 DIRT TUBE & OVERMOLD ASSE 49461B-4SV 78091 47722 SPRING - BAG 48410 SPRING - GARTER 63213 UPR ST DUSTBAG W/A&H PATC http://homecareparts.electroluxusa.com/print_assembly.asp?AssemblyID=6215&ModelID=2070&... BAG AND WIRING DIAGRAM - SC678A Description Page 2 of 2 Comments Not illustrated. Not illustrated. 3/1/2007...
