Summary of Contents for Kodak IP101WG

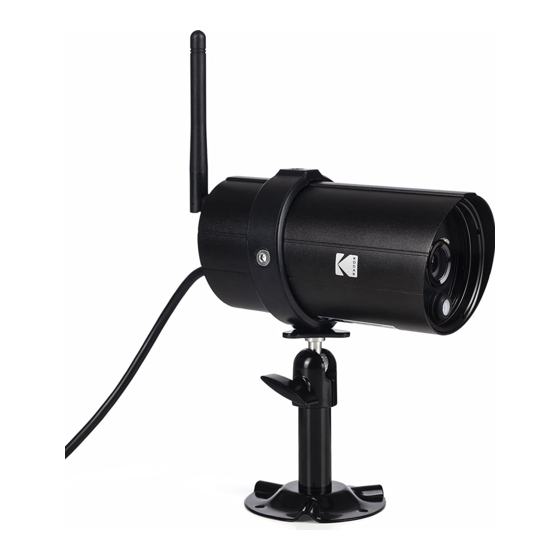

- Page 1 User manual for the cameras KODAK IP101WG, EP101WG, IF101W and EF101B...
- Page 2 PART 1. INSTALLATION First installation page 3 Wifi installation pages 4 et 5 III- Ethernet installation page 6 PART 2. APPLICATION Main page pages 7,8 et 9 Advanced settings Base setting pages 10,11,12 et13 B- Video setting page 14 C- Sensitivity setting page 15 D- SD Card setting page 16...
- Page 3 PARTIE 1. INSTALLATION First installation Before the first installation of your camera, please reset by pressing the RESET button shown below for about 8 seconds, then wait a minute.
- Page 4 IN 2.4Ghz (5Ghz OFF). MOREOVER, YOUR WIFI SECURITY KEY MUSTN T EXCEED 21 CHARACTERS & MUST BE IN WPA (NOT WEP) 1 From your phone, download and install the free KODAK Security app. 2 Plug in the camera. 3. Reset the camera as previously indicated (wait 60 seconds) 4 In the WIFI settings of your Iphone, select the WiFi HD-XXXXX.
- Page 5 IN 2.4Ghz (5Ghz OFF). MOREOVER, YOUR WIFI SECURITY KEY MUSTN EXCEED 21 CHARACTERS & MUST BE IN WPA (NOT WEP) 1 From your phone, download and install the free KODAK Security app 2 Plug in the camera. 3 Reset the camera as previously indicated (wait 60 seconds) 4 Press "+"...
- Page 6 III- Ethernet installation 1 From your phone, download and install the free KODAK Security app 2 Plug in the camera. 3. Reset the camera as previously indicated (wait 60 seconds) 4 Tap « + », and select « Wifi cameras ».
- Page 7 PART II. APPLICATION Main page Once your camera has been installed, you will find a menu with your camera (s). You have 4 icons : + : Add a new camera. : Access Advanced Settings / Delete Camera / View Recorded Videos. By clicking on the calendar (right icon), you will be able to define a search range for videos recorded on the SD card.
- Page 8 : Refresh the connection with the servers : Different settings Setup Pin Lock: Enable and enter a PIN if you want to protect access to your application and camera viewing Notify : Activate deactivate notifications. Video hardware acceleration: On recent phones, you can enable this function for optimal video quality.
- Page 9 ANDROID...
- Page 10 Advanced settings A- Base settings Admin password : This menu allows you to change the admin password to access the advanced settings of your camera. Like all passwords, we recommand you to modify it regularly. Device security code : Modify the security code of your camera. Accessories configuration : Add here the different accessories compatible with your camera : door sensor, motion sensor and remote controle.
- Page 11 Siren volume : Your camera has an integrated siren. Setup the volume in this menu (Only IP10x Model) Siren duration : Choose the duration during which the siren will sound. If the alarm is disabled during the alarm, the siren will stop immediately. Cloud storage : This feature allows you to automatically transfer recorded videos (1min each) when there is a detection to your own Google Drive account.
- Page 12 Create a google drive account If you have not create a cloud account at the time setting up the camera, you can do here at anytime. The app automatically detects the fact that cloud account/storage do not exist. The wizard will take you step by step to setup your private cloud, using your personal Google Drive as storage site.
- Page 13 Time zone : Indicate your time zone and activate the time change if you want it to be done automatically. Wifi settings : Find here the informations of your network. Once the installation done, your Wifi name will automatically appear. Time stamp : Select how to display the date and time on the video.
- Page 14 B- Video setting Video quality : You can choose if you prefere a better quality or a better streaming. This menu is important if your Wifi network is low. If you select HD Video at times your Internet speed is decreasing or insufficient, the application will automatically offers you to reduce the quality of the image to the benefit of fluidity.
-
Page 15: Sensitivity Setting
Sensitivity setting Notify enable Detect mode Motion mask : This part : Activate : Select or allow you to activate the the motion detection deselect the areas you notifications and set the sensitivity.(In (message your Detect mode: click with motion detection. screen indicating that Software). - Page 16 D- SD Card setting Format SD Card : If you insert an SD card, we recommend you to format it using this menu. After formatting, you will see the total capacity of the card and the available capacity. Overwrite SD Card : By activating this menu, the application will automatically rewrite E- Device setting Device Profile settings...
- Page 17 Add an accessory and preset To add an accessory, go to the advanced settings of your camera and : 1- Go in the Base settings, and Sensor settings 2- Tap + 3- Select the accessory you want add 4- Remove the tab, or remove the batteries and replace them 5- Position the angle of the camera towards your accessory, and press the validate icon at the bottom right.
- Page 18 VII- Point memorization Thanks to the memorized points function, you will be able to pre-register positions in order to access them more quickly 1- Rotate your camera by using the live view 2- Select the point you want to record (1,2 ou 3) 3- Test it by clicking on the point you recorded Attention, in case of motion detection, the camera is automatically redirected to point n°1.
- Page 19 VIII- Arming the camera Step 1 : Activate « Notify enable » in of the main page Step 2 : In the advanced settings, enable notifications and motion detection Step 3 : Arm your camera...
- Page 20 Live view Vue en direct Tap it to take a photo. The photos will be save in the gallery of your phone Appuyez pour prendre une photo. Les photos seront stockées dans la galerie de votre téléphone. Press to turn on / off the sound Appuyez pour allumer/éteindre le son.
- Page 21 More informations 1 In order to activate the SOS mode via the remote control, please press the button for 3 consecutive seconds « ! ». The notifications are in English despite the language choose. This is due to the application software. Examples of notifications: ➔...
- Page 22 Note: You can access the live view of the camera by clicking on the notification you receive We regularly update our products and applications. An SD card is required to perform the updates. To perform the update, please go to the advanced settings and then to device settings.
- Page 23 You do the information you need in this manual? Check our Youtube channel for installation tutorials. https://www.youtube.com/channel/UCWO04hpwAZxBC7-CSKi3hbg/videos You can also consult our questions / answers section on our website. https://be-connected.com/faq/ If you still can find the information you want, please contact our technical support by email indicating the model of your camera, the application you have and your problem.
