ADEMCO 5890PI Installation Instructions Manual

GENERAL INFORMATION

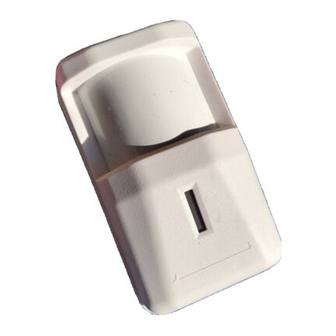

The 5890PI Passive Infrared
Detector/Transmitter is a
wireless device intended for use as part of a
5800 series wireless alarm system.
Designed for use in commercial and residential
installations, the 5890PI is a wall-mounted unit
with a standard lens that provides wide-angle
protection up to a range of 35 ft (10.6m). For
best coverage, mount the detector so that the
likely direction of intruder motion is across the
pattern.
When installed per the guidelines, the Split-
Zone Optics technology in the 5890PI provides
reasonable false alarm protection against pets
and other animals up to 40 lbs.
This document provides installation instructions
for the 5890PI, but the installer must be familiar
with the installation instructions for the 5800
Wireless Alarm System with which the 5890PI
is intended to be used.
FEATURES
• Split-Zone Optics provides pet immunity
against animals up to 40 lbs.
• Wireless operation for fast installation.
• Dual-element pyroelectric sensor provides
positive protection while minimizing false
alarms.
• Alternate-polarity pulse count option offers
greater stability in adverse environments.
• Provision to turn LED on while Walk Testing
(LED is turned off after testing).
• Tamper-protected cover;
message if cover is removed.
• Wall or corner mounting options.
SYSTEM DESCRIPTION
Optical System
Uses efficiently designed Fresnel lenses with
Split-Zone Optics.
Radio Transmitter
The built-in transmitter serves only as the
communication link to the alarm system's
Receiver/Control, and can send alarm, tamper,
supervisory, and battery status messages to
the system's receiver/control. The transmitter is
not used for detection purposes. Each detector
has a unique ID code permanently assigned at
the factory. You must enroll this ID into the
control system at the time of installation. This
allows each detector used in the system to be
uniquely identified. You must program the
control to enroll the 5890PI as an "RF" type unit
(i.e., supervised RF).
To conserve battery life
operation, no more than one transmission
sequence will occur within a 3-minute period.
There is no such time restriction in Test mode.
Alternate-Polarity Pulse Count
Two jumper-selectable detection
modes are provided: Instant response (Pulse
Count OFF) and Alternate-Polarity Pulse Count
(Pulse Count ON). With Pulse Count OFF, any
detected change in infrared energy triggers an
3$66,9(,1)5$5('027,21'(7(&72575$160,77(5

INSTALLATION INSTRUCTIONS

immediate
recommended when the detector is used to
Motion
monitor a narrow hallway where coverage is
battery-operated
provided by only a single zone. Use the Pulse
Count ON mode when the detector is installed
in areas where periodic changes in infrared
energy levels are normal (for example, where
forced-air heating ducts are present). In this
mode, at least two changes in infrared energy
must be detected within a short period before
an alarm is triggered.
Important
applications,
recommended.
SPECIFICATIONS
Pet Immune
Lens:
Pulse Count: Installer-selectable On/Off link.
Detectable
Walk Rate:
Mtg. Height: 7.0 ft recommended (2.1m),
Walk Test
Indicator:
Batteries:
unit transmits
0perating
Temperature: 32°F – 122°F (0°C - 50°C).
Operating
Humidity:
Dimensions: 2-11/16"W x 5"H x 1-7/8"D
25'
(7.6m)
0
25'
(7.6m)
during normal
7.5'
(2.3m)
0
response
0
Figure 1. Protection Pattern
alarm signal. This mode
Note:
For pet immune
Pulse Count ON
35 ft x 45 ft (10.6m x 13.7m).
30 zones (8 long, 7 over 7 inter-
mediate, 4 over 4 short-range).
0.5–10 ft/Sec (0.15–1.5m/Sec).
but may be mounted at other
heights (see Table 1).
Red LED with Test/Normal
(disable) link.
Two 3-volt Lithium batteries.
Use only ADEMCO No. 466,
Duracell DL123A, Panasonic
CR123A, Sanyo CR123A, or
Varta CR123A.
Up to 95% RH (max.), non-
condensing.
68mm x 127mm x 48mm.
ALTERNATE
COUNT POLARITY
EACH ZONE CONSISTS
OF 2 FIELDS
10' 20' 30' 35'
(3m) (6m) (9m) (10.6m)
10' 20' 30' 35'
(3m) (6m) (10.6m)
(9m)
N5987-2V1 10/99 Rev. B
$'(0&2 3,
is
BATTERY INSTALLATION
1. Remove front cover by inserting a large
screwdriver blade (or small coin) in groove
between cover and base at the location
shown in Figure 2; rotate blade to override
snap fit, then lift cover off.
2. Observing correct polarity, install the two
Lithium batteries (supplied) into the battery
holders, as shown in Figure 5. Make sure
the batteries are firmly seated.
3. Replace the cover (snap fit).
Battery Caution
is
Risk of fire, explosion, and burns. Do not
recharge, disassemble, heat above 100°C, or
incinerate. Dispose of used batteries promptly.
Keep away from children.
Programming Note:
programmed the detector's ID into the
system (i.e., this is an initial detector
installation), refer to the PROGRAMMING
section below and perform the ID enrolling
procedure before mounting or testing the
detector.
PROGRAMMING
You must enroll the detector's ID during
installation of the system.
program the 5890PI as an "RF" type unit
(i.e., supervised RF),
number as "1."
To program the detector, place the LED jumper
in the TEST position (see Figure 5), the Pulse
Count jumper in the OFF position, batteries
installed and cover on. Temporarily cover the
lens (a cloth will do) to prevent any activation
by the detector.
When prompted for the device's serial number,
you may either manually enter it or transmit
from the unit (remove the cloth cover and
motion your hand over the lens to activate the
detector, press the tamper switch, etc.). Refer
to the control panel installation instructions for
programming details.
Return LED jumper to the NORMAL position
after it is enrolled in the control.
INSTALLATION
Installation Hints
• Do not install where the detector is exposed
to direct sunlight or directly above strong
sources of heat.
• Make sure the detection area does not have
obstructions (curtains, screens, large pieces
of furniture, plants, etc.) that may block the
pattern of coverage.
• Avoid locating a unit in areas that contain
objects likely to produce a rapid change in
temperature, such
radiators, or ducts (or heaters of any kind),
air conditioners, open flame, etc.
• Do not mount on an unstable surface.
IMPORTANT: For installation with pets, be
sure to follow the guidelines described in
Table 2.
If you have not
You should
and the "Loop"
as central heating,
