ADEMCO 5890 Installation Instructions

N5987V2 5/98
®
No. 5890
PASSIVE INFRARED MOTION
DETECTOR/TRANSMITTER
INSTALLATION
INSTRUCTIONS
For use with QED control panels ONLY!
GENERAL INFORMATION

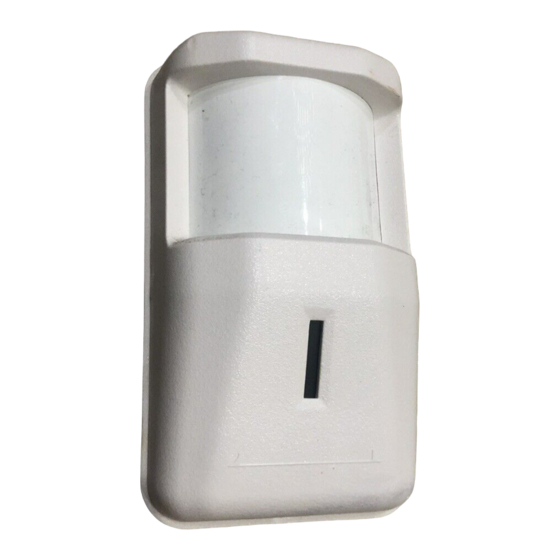

The 5890 Passive Infrared
Detector/Transmitter is a battery-operated
wireless device intended for use as part of a
QED 5800 series wireless alarm system.
Designed for use in commercial and residential
installations, the 5890 is a wall-mounted unit
with a standard lens that provides wide-angle
protection up to a range of 40 feet (12m). For
best coverage, mount the detector so that the
likely direction of intruder motion is a cross the
pattern.
Two optional interchangeable lenses are
available for this detector – the 199PA Pet Alley
lens, and the 199LR Long Range lens (see
PROTECTION PATTERNS FOR OPTIONAL
LENSES on last page).
This document provides installation instructions
for the 5890, but the installer must be familiar
with the Installation Instructions for the QED
5800 Wireless Alarm System with which the
5890 is intended to be used.
FEATURES
•
Wireless operation for fast installation.
•
Dual element pyro-electric sensor provides
positive protection while minimizing false
alarms.
•
Alternate polarity pulse count option offers
greater stability in adverse environments.
•
Provision to turn LED on while walk testing
(LED is turned off after testing).
•
Tampered cover – unit transmits message if
cover is removed.
•
Wall or corner mounting options.
•
Optional Pet Alley and Long Range lenses
available.
SYSTEM DESCRIPTION
Optical System: Uses efficiently designed
Fresnel lenses.
Radio Transmitter: The built-in transmitter
serves only as the communication link to the
alarm system's Receiver/Control, and can send
alarm, tamper, supervisory, and battery status
m e s s a g e s t o t h e s y s t e m ' s
receiver/control. The transmitter is not used for
detection purposes. Each detector has a unique
ID code permanently assigned at the factory.
This ID needs to be "enrolled" by the QED
control system at the time of installation. This
allows each detector used in the system to be
uniquely identified. The QED control must be
programmed to "enroll" the 5890 as an "RF"
type unit (i.e., supervised RF).
To conserve battery life during normal
operation, no more than one transmission
sequence will occur within a 3-minute period.
There is no such time restriction in "test" mode.
Alternate Polarity Pulse Count: Two jumper-
selectable detection response modes are
provided: Instant response (Pulse Count OFF)
and Alternate Polarity Pulse Count (Pulse
Count ON). With Pulse Count OFF, any
detected change in infrared energy will trigger
an immediate alarm signal. This mode is
recommended when the detector is used to
monitor a narrow hallway where coverage is
provided by only a single zone.
Use the Pulse Count ON mode when the
detector is installed in areas where periodic
changes in infrared energy levels are normal
(for example, where forced air heating ducts are
present). In this mode, it requires at least two
detected changes in infrared energy within a
short period before an alarm will be triggered.
Important Note: If the detector is to be used in
the Pulse Count mode, be sure to walk test the
unit in this mode.
SPECIFICATIONS
Coverage:
Standard Lens
Motion
199LR Lens :
199PA Lens :
Pulse Count: Installer-selectable On/Off link.
Detectable
Walk Rate: 0.5 – 5ft/sec (0.15 – 1.5m/sec).
Mtg. Height: 7ft nominal (2.1m), but may be
mounted at other heights (see
Table 1).
Walk Test
Indicator: Red LED with Test/Normal
(disable) link.
Batteries: Two 3-volt Lithium batteries.
Use only Ademco No. 466,
Duracell DL123A, Panasonic
CR123A, Sanyo CR123A, or
Varta CR123A.
0perating
Temperature: 32°F – 122°F (0°C – 50°C)
Operating
Humidity: Up to 95% RH (max.), non-
condensing.
Dimensions: 2-11/16"W x 5"H x 1-7/8"D
(68mm x 127mm x 48mm).
Q E D
Standard Wide Angle Protection Pattern
BATTERY INSTALLATION
1. Remove front cover by inserting a large
screwdriver blade (or small coin) in groove
between cover and base at the location
shown in Figure 2; rotate blade to override
snap fit, then lift cover off.
:
40 ft x 56 ft (12 m x 17 m).
18 zones (9 long, 5 inter-
mediate, 4 short range).
60 ft x 6 ft (18m x 1.8m).
5 zones (1 long, 2 inter
mediate, 2 short range).
40 ft x 60 ft (12m x 18m)
12 zones.
Figure 1.
1
2. Observing correct polarity, install the two
Lithium batteries (supplied) into the battery
holders, as shown in Figure. 5. Make sure
the batteries are firmly seated.
3. Replace the cover (snap fit).
Battery Caution:
Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 100°C, or incinerate.
Dispose of used batteries promptly. Keep away
from children.
Programming Note: If the detector's ID has
not been programmed into the system (i.e.,
this is an initial detector installation), refer to
the PROGRAMMING section below and
perform the ID "enrolling" procedure before
mounting or testing the detector.
PROGRAMMING
The QED control system must "enroll" the
detector's ID during installation of the system.
The QED control should be programmed to
enroll the 5890 as an "RF" type unit (i.e.,
supervised RF).
To program the detector, place the LED jumper
in the TEST position (see Fig. 5), the Pulse
Count jumper in the OFF position, batteries
installed, and cover on. Temporarily cover the
lens (a cloth will do) to prevent any activation by
the detector.
When prompted for the device's serial number,
you may either manually enter it or transmit
from the unit (remove the cloth cover and
motion your hand over the lens to activate the
detector, press the tamper switch, etc.). Refer
to the QED control panel installation
instructions for programming details.
Return LED jumper to the NORMAL position
after it is enrolled in the control.
INSTALLATION HINTS
¥
Do not install where the detector is exposed
to direct sunlight or directly above strong
sources of heat.
• Make sure the detection area does not have
obstructions (curtains, screens, large pieces
of furniture, plants, etc.) which may block the
pattern of coverage.
• Avoid locating a unit in areas which contain
objects likely to produce a rapid change in
temperature, such as central heating,
radiators or ducts (or heaters of any kind), air
conditioners, open flame, etc.
• Do not mount on an unstable surface.
INSTALLATION
Radio Transmission Path Check
Verify that a strong transmission path between
the 5890 and the system's Receiver/Control
exists before permanently mounting the
detector. Do this by performing the Walk Test
(described later) with the detector temporarily
mounted in its proposed location. The 5890 will
transmit when sensing motion (waving arm or
walking into area). Sometimes, moving the
detector only a few inches means the difference
between a strong and weak transmission path.
Experiment until you are satisfied that the
location provides the strongest transmission
path, while still being practical for the protection
pattern desired. This test also verifies that the
detector has been correctly programmed into
the system.
Normal Mounting
Mount the unit to a firm vertical surface (flat on
wall or in corner).
1. Remove front cover.
2. Temporarily loosen (do not remove) the
screw holding the PC board in the detector
base (see Fig. 5 for location of this screw).
