Samsung Electronics America, Inc.
400 Valley Road, Suite 201 Mount Arlington, NJ 07856
1-800-SAMSUNG (1-800-726-7864)
www.samsung.com

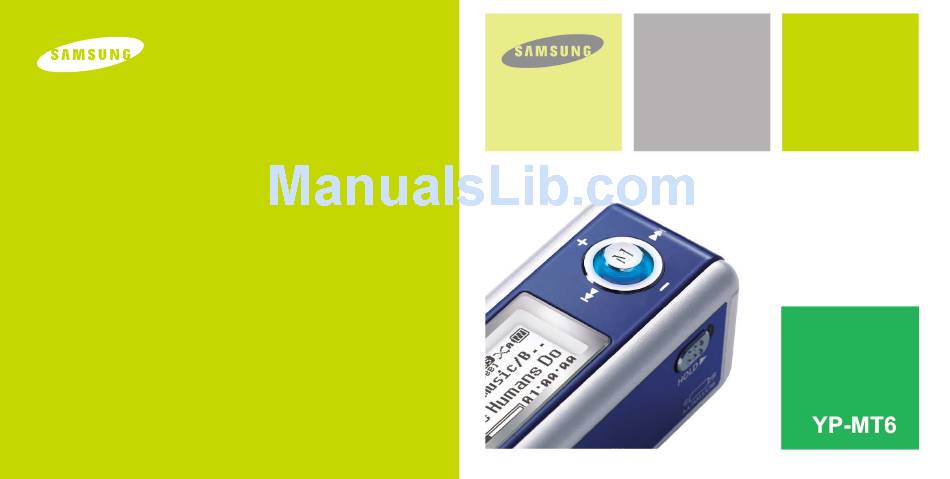

YP-MT6
- MP3,WMA,ASF,Secure WMA and Ogg Playback
- Removable Storage Device
- Direct MP3 Recording
- FM Reception
- 3D Sound
- USB 2.0 Support
- Upgradable
- 42 Hours of Continuous Play
- Voice Recording Function
Advertisement
Table of Contents
Related Manuals for Samsung YP-MT6
Summary of Contents for Samsung YP-MT6
- Page 1 Samsung Electronics America, Inc. 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) www.samsung.com YP-MT6 - MP3,WMA,ASF,Secure WMA and Ogg Playback - Removable Storage Device - Direct MP3 Recording - FM Reception - 3D Sound - USB 2.0 Support...
-
Page 2: Table Of Contents
Contents Preparations Safety Instructions...4 Features ...6 Components ...8 Location of Controls ...9 Connection to Computer Connecting the player to PC ...11 Manual Installation of USB Driver ...15 Using the removable storage(PC)...18 Formatting on your PC ...18 Downloading/Uploading files ...18 Disconnecting the USB cable...19 Downloading Secure WMA Files ...20 Installing Music Studio...22 Using Music Studio ...23... -
Page 3: Safety Instructions
Safety Instructions Read and understand all the instructions to avoid injury to yourself and damage to the equipment. Do not expose to extreme temper- Do not subject the unit to severe atures (above 95°F or below 23°F). impact, or place heavy objects Do not expose to moisture. -
Page 4: Features
Upgradable You can upgrade the built-in programs when available. Add functions, CODEC, etc. Please check the home page (www.samsung.com) for upgrades. 42 Hours of Continuous Play This player uses one AA/LR6 alkaline battery. Operation can last up to 42hours. Actual playing time may vary according to the type and capacity of the battery. -
Page 5: Components
Line In Cable USB Cable (1.5V AA/LR6 type) AH39-00488B AH39-00692A 4301-000101 Model YP-MT6 H YP-MT6 V Built-in memory 128MB 256MB The capacity of the useable built-in memory is less than indicated as the internal firmware uses part of the memory as well. -
Page 6: Connecting The Player To Pc
- If the YP-MT6 program has not been installed in Windows 98, then it will not communicate with your removable disc. You must install the USB driver file first. - Page 7 You may not see the display screen during installation. Go to the device manager (see next page) to check that installation has been successfully completed. Upon installation of the USB driver "Samsung YP-MT6 USB Device" will appear in the [System Properties] [Device Manager].
-
Page 8: Manual Installation Of Usb Driver
System Hardware Device Manager Samsung YP-MT6 USB Device When the USB driver is not installed automatically, refer to the next page. Go to “Downloading/Uploading files”(p18) if the USB driver is installed. Follow these steps if the USB driver is not in installed :... - Page 9 Follow the instructions in the window to complete the installation. : You must reboot your computer to complete the installation. - You cannot use the player as a removable disc in Windows 98 if the YP-MT6 program is not installed. Make sure to install the USB driver file first.
-
Page 10: Using The Removable Storage(Pc)
Using the removable storage(PC) Formatting on your PC Select the removable disc icon Press the [Start] button. and click the right mouse button All saved files will be formatted. to select [Format]. You can change the name of removable disc by selecting [Volume label]. -
Page 11: Downloading Secure Wma Files
Using the removable storage(PC) Downloading Secure WMA Files Make sure to download the Secure WMA file you purchased from a pay site through Windows Media Player Version 9 or higher. pay site : www.walmart.com, www.buymusic.com, www.musicnow.com, www.napster.com, etc. Select the Secure WMA file and right-click to select [Play] or [Play with Media Player]. -
Page 12: Installing Music Studio
Music Studio is a program that enables you to play back music files on your PC. Insert the Installation CD into CD-ROM drive. Select [Install Samsung Music Studio]. Follow the instructions in the window to complete the installation. Please refer to Help for more information on how to use Music Studio. - Page 13 Using Music Studio Creating an Album Double click the Music Studio icon on your PC. Click the [To Album List] button in the Play List Window. The Album List Window appears. Click your right mouse button to select [New Group] which opens the [New Album] dialog box.
-
Page 14: To View Help On Music Studio
Using Music Studio Converting Music File Formats Double click the Music Studio icon on your PC. Insert an audio CD into your CD drive and click the [To CD-ROM Mode] button in the File List Window. After selecting the tracks to be converted, click with the right mouse button to choose the file format. -
Page 15: Playing Music And Turning Off The Device
Playing Music and Turning Off the Device Turning Power On and Off Power On : Press the button to turn on the power. Power Off : Press and hold the button to turn off the power. Playing Music (Power On) Press the button. - Page 16 MP3 Encoding To move to other modes from the LINE_ENC mode,refer to page 37 "Changing Mode" Connect the Audio Output port on the external audio source (or the Line Out port) to the ENC port on the device with the Line cable. Press and hold the REC button to start MP3 encoding.
- Page 17 Listening to FM Radio Press the "M" button to display the menu screen. Press the joystick down to select FM Radio and press the "M" button again. Manual Search for a Frequency Push the joystick left or right briefly to search manually for the frequency you want.
- Page 18 FM Encoding Press and hold the REC button during FM reception. Encoding of the currently transmitted FM broadcast begins. Press the REC button again. A file is created and the encoding stops. Files are encoded in the order F001, F002, F003...and saved as MP3 files in FM_ENC folder. - If the battery is not sufficiently charged, the player will not completely encode the file.
-
Page 19: Using Navigation
Using Navigation You can easily search for files or switch modes using the Navigation function. Press the “M” button to enter Navigation mode. (except if you are in FM radio mode). or press and hold the “M” button to move to Menu and then select Navigation in Menu. -
Page 20: Setting Playlist
Using Navigation Playing/Exiting Folder √ √ Playing Folder Press the “M” button to move to the Navigation mode. to move to the folder you want and press the When " " appears, the selected file will be played. √ √ Exiting Folder Play Press the “M”... -
Page 21: Setting The Advanced Functions
Setting the Advanced Functions Select Settings in the MENU. (refer to “MENU Options”) In Settings, use to move to the function you want and press the “M” button to select. To move to a previous menu, use or select Return. Selecting the Playmode Press and hold the "M"... -
Page 22: Setting The Eq Mode
Setting the EQ mode Press and hold the "M" button. Select Settings In My Sound, use to move to the sound mode you want and press the “M” button. Preset EQ to move to the sound mode you want and then press the “M” button. TruBass Normal Classic... -
Page 23: User Eq Set
Setting the EQ mode User EQ Set If User is selected in Preset EQ, EQ can be set to your preference in the User EQ Set. to move to right or left and use adjust the level. Press the “M” button after completing the setting. is a trademark of SRS Labs, Inc. -
Page 24: Backlight
Display Settings Press and hold the "M"button. Select Settings Display √ √ Backlight [ Jog ] to set the Light-On time from Off to 60 seconds. When set to On, the Light stays on continuously. [ LCD ] to set the LCD Light-Off time from Off to 60 seconds When set to On, the Light stays on continuously. -
Page 25: Setting The System
On: Beep sounds whenever you press the button. Off: No beep sounds when you press the button. √ √ About If you select About, you can check the software version information, total number of tracks and remaining capacity. - Go to samsung.com for software updates. -
Page 26: Mp3 Encoding
Record Settings Press and hold the "M" button. Select Settings Record. √ √ Bitrate to set the encoding bit rate. When encoding music into an MP3 file, you can select one of the following bit rates: 32Kbps, 48Kbps, 64Kbps, 96Kbps and 128Kbps. √... -
Page 27: Menu Table
Managing Files Deleting Press the "M" button. Select Settings File Delete. to move to the file you want to delete and then press the “M” button. to move to Confirm and then press the “M” button. The selected file will be deleted. Formatting the player Press the "M"... -
Page 28: Troubleshooting
Check to see if the battery is inserted to the right poles ( + , – ) After connecting it to PC, execute YP-MT6 Updater in the desktop to update the product. In PLAY mode, music is not played after pressing the Check to see if MP3 or WMA files are saved in the built-in memory. -
Page 29: Specifications
Specifications Model YP-MT6 Built-in Memory capacity 128MB(YP-MT6 H), 256MB(YP-MT6 V), 512MB(YP-MT6 X), 1GB(YP-MT6 Z) Voltage 1.5V X 1 (AA/LR6 size alkaline battery) Playing time lasts up to 42hours (Alkaline battery, MP3 128Kbps, Vol level 20) Dimensions/Weight 0.98” X 2.40” X 0.94” / 1.27oz (without battery) -
Page 30: Safety Information
Address: 416, Maetan-3Dong, Paldal-Gu, Suwon City, Kyungki-Do, Korea 442-742 declares under its sole responsibility that the Party Responsible for Product Compliance product Trade Name: Samsung Electronics Co., Ltd Samsung Electronics America Model Number: YP-MT6 QA Lab. has been tested according to the 3351 Michelson Dr. -
Page 31: Warranty
2.Samsung's obligations are to the repair of the warranty. defective part, and at its discretion, replacement of Return of the product for defective reasons the product (service exchange unit). - Page 32 OR CORPORATION WITH RESPECT TO THIS ORIGINAL PURCHASER OF THIS PROD- PRODUCT SHALL BE BINDING ON SAMSUNG, UCT, IS NONTRANSFERABLE AND SAMSUNG SHALL NOT BE LIABLE FOR LOSS STATES YOUR EXCLUSIVE REMEDY. OF REVENUE OR PROFITS,FAILURE TO REAL- IZE SAVINGS OR OTHER BENEFITS, OR ANY...
