Summary of Contents for Blaupunkt PHILADELPHIA 865

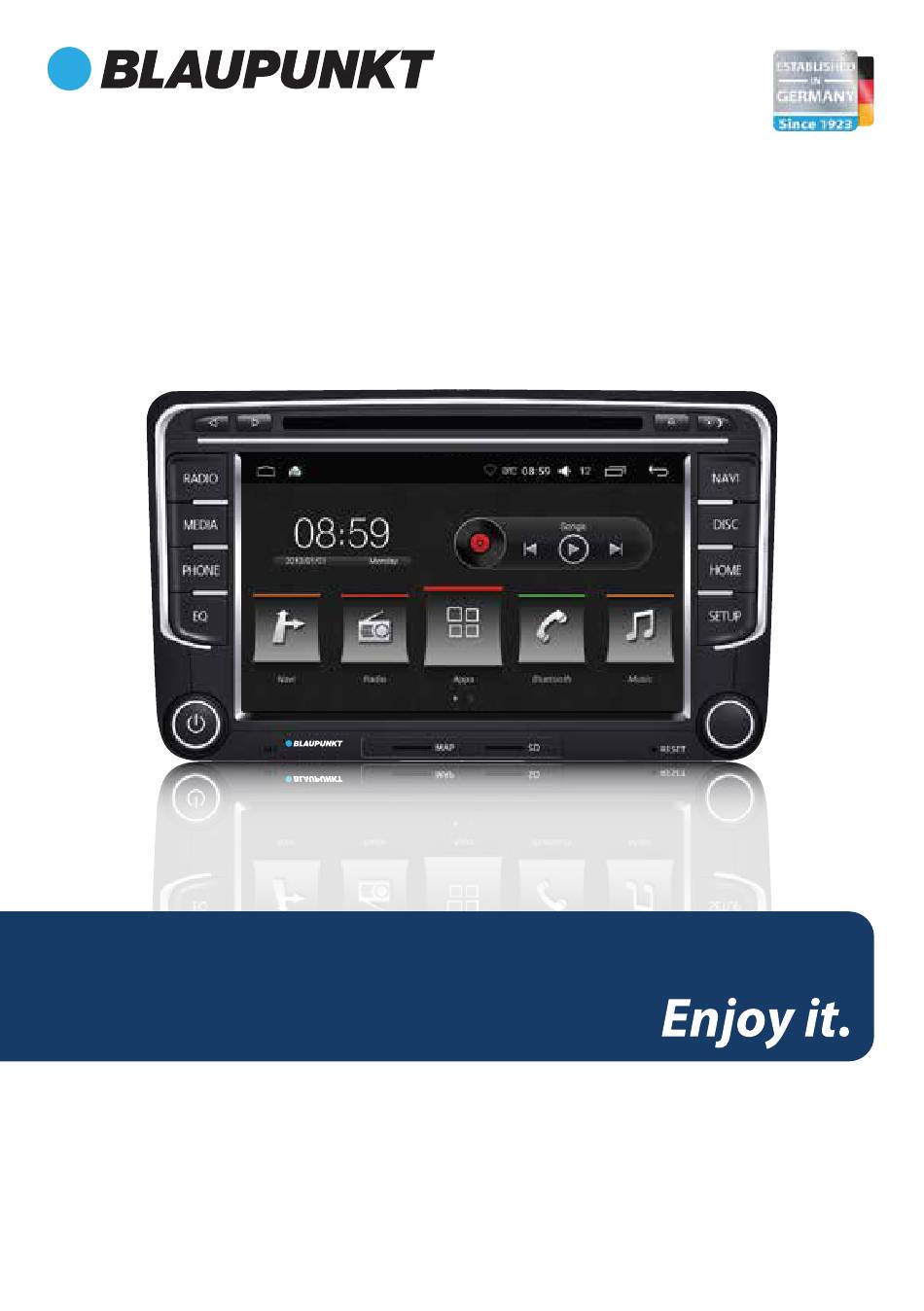

- Page 1 MULTIMEDIA NAVIGATION PHILADELPHIA PHILADELPHIA 865 P H I L A D E L P H I A 8 6 5 Operating and Installation Instructions...
- Page 2 In no event shall Blaupunkt be liable for any direct, warning signals (e.g. police and ambulance sirens). indirect, punitive, incidental, special consequential...
-
Page 3: Key Functions
KEY FUNCTIONS PHILADELPHIA 865 1 RADIO • Press to automatically search and save stations into all preset stations Note : Saved radio stations will be overwritted when is selected. • Press to go to Radio Settings. • Press PTY to switch between programme types •... - Page 4 KEY FUNCTIONS • Pre-pair Bluetooth TUNER Ensure mobile phone supports Bluetooth • Radio mode : Rotate to select saved radio function stations, then press & hold to save the selected before pairing. Di erent mobile phone will have frequency. • di erent emissive power.
- Page 5 OPERATIONS EASYCONNECTION CAR INFO • Android - Support Android 5.0 & above (2-way with Fuel Level • USB cable, 1-way with WiFi) Temperature • iOS - Support 7.0 & above (1-way with WiFi) Battery Voltage • Pre-pair PhoneLink • Water Level •...
-
Page 6: Wiring Diagram
GENERAL Power supply ............11 ~ 16V DC Current consumption ..........max. 10 A Maximum power output ..... 4 x 50W channels (max) Dimension (WxDxH) ........ 177 x 102 x 42mm Weight ................. 0.52kg Operation temperature ........... -40° ~ 85° Screen size ................ -
Page 7: Troubleshooting
TROUBLESHOOTING If any of the following problems happens to your system, please resort to Troubleshooting for possible solutions. Consult Blaupunkt authorized dealer if problem persist. Possible Causes Solutions Problems Insert the car key and turn on the ignition. Unable to start up The car key is not inserted into the ignition;... - Page 8 1 107 18 003 20 01 1 107 18 004 20 01 1 107 18 005 20 01 1 107 18 006 20 01 Designed and engineered by Blaupunkt 1 104 18 015 20 01...
