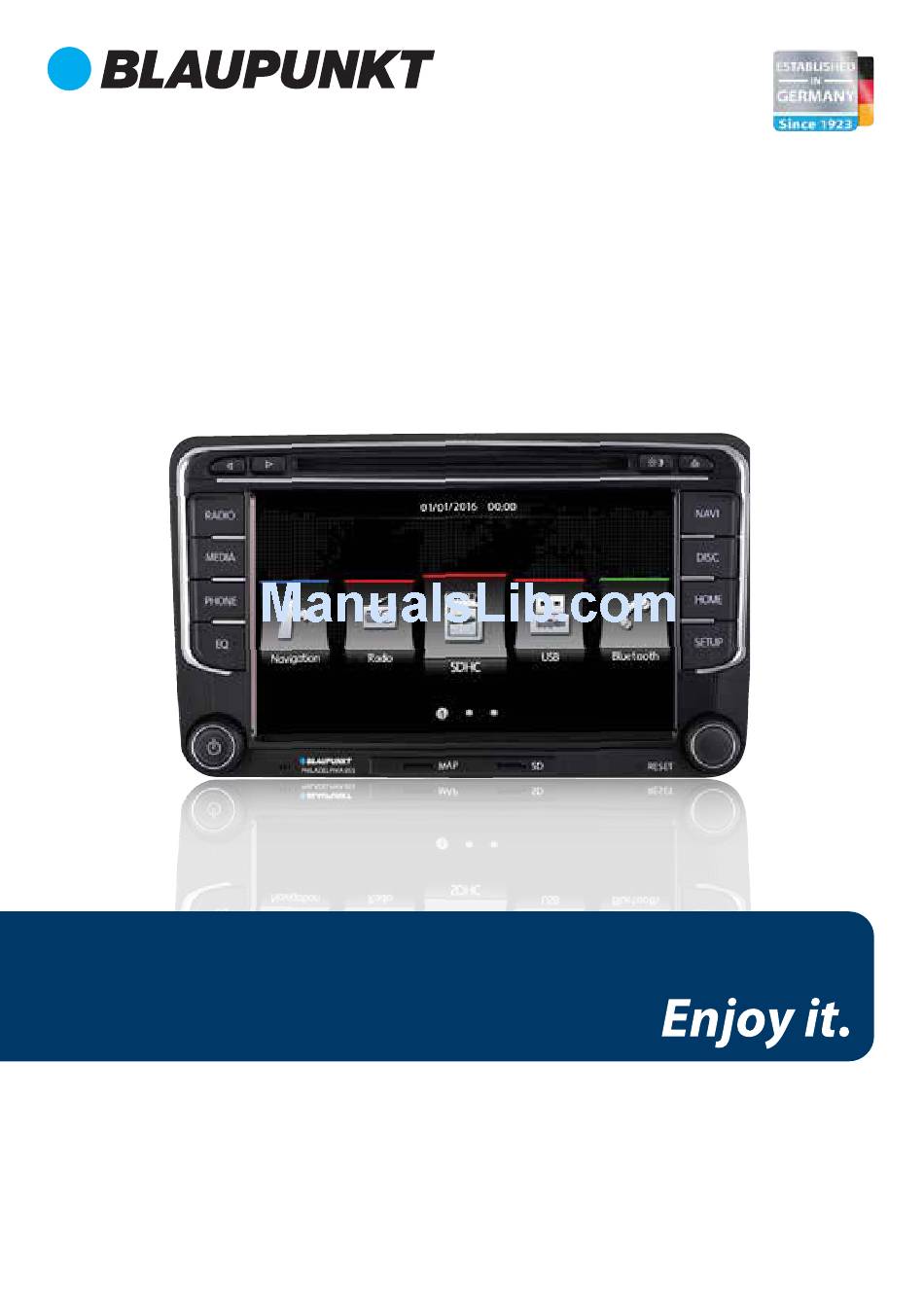

- Page 1 MULTIMEDIA NAVIGATION PHILADELPHIA Operating and Installation Instructions...
- Page 2 The car radio volume can be too loud when the car radio is unmuted. In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential General Safety Notes:...
-
Page 3: Key Functions
KEY FUNCTIONS RADIO TUNER • Press to Play / Pause Start radio mode • Turn knob to browse les / frequency MEDIA Start media modes (Disc, Navigation, SETUP SDHC, USB, Bluetooth, Aux In) Start/Exit Settings menu PHONE HOME Start Bluetooth Phone Connection Return to HOME menu DISC Start equalizer mode... - Page 4 OPERATIONS HOME PAGE Radio Stations List Press 11 to return to HOME PAGE • Press List to view the saved radio stations. Storing Stations Manually • Press Manual or rotate knob 9 to search radio stations from the frequency bar. Press &...
- Page 5 OPERATIONS • Select EQ or press 4 to change equalizer setting. Manually change the EQ setting by moving the EQ bars or select for preset EQ mode as below Flat / Pop / Classic / Rock / Jazz / Techno / Optimal / User to return to Setup.
-
Page 6: Operation
Note : To ensure proper functioning, use only • Press Loud to activate or deactivate the function. original CD/VCD/DVD. Blaupunkt cannot guarantee the awless function of copy-protected Note : Media Setting is available at Audio Player only discs and all disc blanks, USB data carriers and memory cards available in the market. - Page 7 OPERATION Next page Next page Press to skip to previous le / press & hold to Press to skip to previous le / press & hold to rewind rewind Pause/Play Pause/Play Press to skip to next le / press & hold to forward Press to skip to next le / press &...
- Page 8 OPERATION NAVIGATION Current Speed • Ensure GPS SDHC is inserted into 6 before Sub Menu operating. PIP (Picture in Picture) • At HOME PAGE, select Navigation or press 13 GPS signal status : Green (Connected) / Red (Lost to start Navigation. Connection) Next Turn Polnav Main Menu...
- Page 9 Bluetooth) Ensure to press “Allow” on mobile phone to allow “PHILADELPHIA 855” should appear on your device to have phonebook access of the mobile available Bluetooth scanning list. Select “PHILA- phone.
- Page 10 OPERATION Setup • Press Setup for Bluetooth Setting. • Select EQ or press 4 to change equalizer setting. Manually change the EQ setting by moving the EQ bars or select for preset EQ. to return to Media Setting. (Refer Select RADIO OPERATION for more details) •...
- Page 11 OPERATION CAR INFO At HOME PAGE, select Car Info to display : • Car signals • Door status • Handbrake status • Fuel level • Car odometer • Car temperature • Clock • Current media playback Attention lane 1. 2. 3. 4. Radar warning sound - On / O Rear-view display setting - Brightness, Contrast, Ratio, Saturation, Resolution.
- Page 12 OPERATION Steering Wheel Control (SWC) This car radio is compatible with the following Multi-Function Steering Wheel buttons: VOL+ : Increase Volume VOL- : Decrease Volume SEEK+ : (Audio Mode) Next Song; (Radio Mode) Search Radio Station backward SEEK- : (Audio Mode) Previous Song; (Radio Mode) Search Radio Station forward MUTE : Mute the system...
- Page 13 OPERATION SETUP At HOME PAGE, select Setup or press 10 to go to Setting. Reverse Camera Type Car info Display Language : Set the corresponding radio language (Simpli ed Chinese, English, Deutsch, French, Russian, Spanish, Danish, Portugese, Traditional Chinese, Italian, Greek). System Setting Beep : Set whether there will be a beeping sound when the touch screen is touched (On, O )
- Page 14 OPERATION Car Info Display : Set the duration after which the car info will be displayed automatically on the car radio (OFF, 3 min, 5 min, 8 min) Factory Reset : To reset the car radio based on original factory setting. User will need to con rm/- cancel this action.
- Page 15 OPERATION Radio Region : Set the radio region (USA, China, Europe, OIRT) (Jimmy, Smile says OIRT or OIRA is Eastern Europe. But I can’t nd both these abbreviation on Google) LOC/DX : Specify whether to detect local/far radio stations (Distance, Local) Stereo : To turn on/o the stereo (On, O ) RDS : To turn on/o the car radio RDS feature (On, O ).
- Page 16 GENERAL Working Voltage ...............12V Working Voltage Range ..........10.5-14.8 Maximum Working Current ..........15A Dimensions ..............220 Width of Higher Part (210 Width of Lower Part) x 130 x 175mm Ground System ........Negative Electrode of the Car-mounted Storage Battery Frequency Range ..........87.5 - 108MHz ....................60dB Stereo Separation (1KHZ) ..........≥30dB...
-
Page 17: Troubleshooting
TROUBLESHOOTING If any of the following problems happens to your system, please resort to Troubleshooting for possible solutions. Consult Blaupunkt authorized dealer if problem persist. Possible Causes Solutions Problems Insert the car key and turn on the ignition. Unable to start up The car key is not inserted into the ignition;... -
Page 18: Wiring Diagram
WIRING DIAGRAM... -
Page 19: Supported Format
