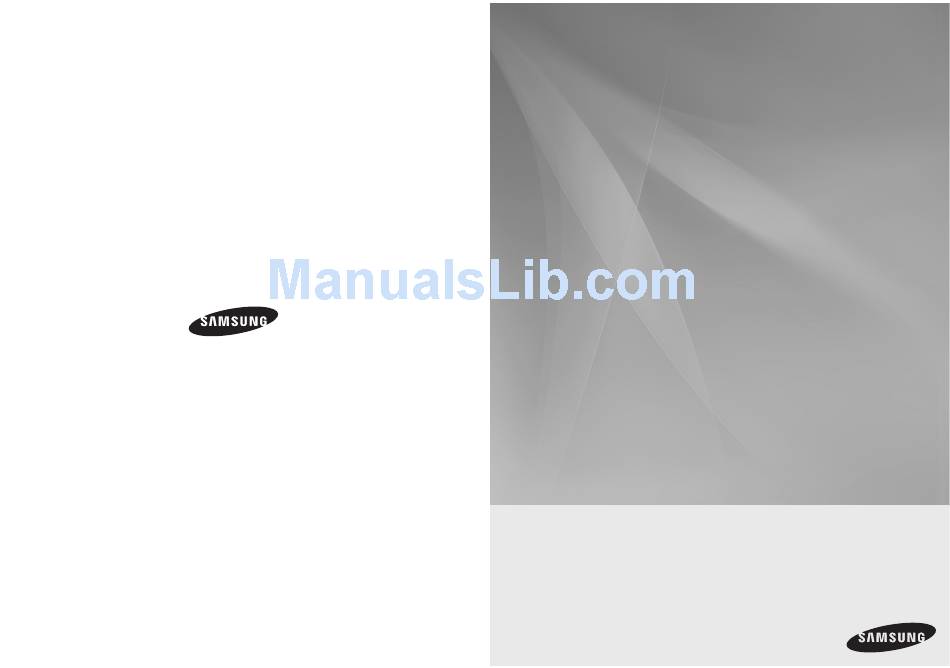

- Page 1 Code No. AH68-02055K(0.0) Digital Home Cinema System user manual imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/global/register HT-Z210 HT-TZ212 HT-TZ215 HT-Z310 HT-TZ312 HT-TZ315...
-
Page 2: Features 2
Anynet+ (HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Cinema to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support Anynet+.) -
Page 3: Table Of Contents
safety information PRECAUTIONS Ensure that the AC power supply in your house complies with the identification sticker located on the Ensure that the AC power supply in you with the identification sticker located on t back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10 cm). -
Page 4: Before Reading The User's Manual
If a problem occurs, check the Troubleshooting. (See pages 66~67) Copyright ©2008 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. )" are applicable to DVD-... -
Page 5: Playable Discs
getting started DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie cinema or concert hall. DVD players and the discs are coded by region. -
Page 6: Front Panel
description FRONT PANEL AUX IN 1 AUX IN 1 FUNCTION BUTTON TUNING UP & SKIP ( ) BUTTON TUNING DOWN & SKIP ( ) VOLUME CONTROL BUTTON (¦) OPEN/CLOSE BUTTON STOP BUTTON PLAY/PAUSE ( ) BUTTON DISC TRAY DISPLAY FUNCTION DISPLAY USB INDICATOR BLUETOOTH INDICATOR REPEAT INDICATOR... -
Page 7: Tour Of The Remote Control
remote control TOUR OF THE REMOTE CONTROL DVD RECEIVER PORT REMAIN STEP PAUSE AUDIO TITLE P.BASS DVD RECEIVER button TV button POWER button Number (0~9) buttons Number 8 button: COMPONENT SEL. Number 0 button: VIDEO SEL. REMAIN button STEP button Tuning Preset/CD Skip buttons VOLUME button MENU button... -
Page 8: Setting The Remote Control
If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default. Operation Range of the Remote Control The remote control can be used up to approximately 23 feet (7 meters) in a straight line. -
Page 9: Connecting The Speakers
connections This section involves various methods of connecting the Digital Home Cinema to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. CONNECTING THE SPEAKERS Position of the DVD Player Place it on a stand or cabinet shelf, or under the TV stand. - Page 10 connections Front / Rear & Center Speakers Cradle Stand and Wall Mount Installation Installing the Cradle Stand <Front/Rear> 1. Insert the stand so that it fi ts into the hole as described in the fi gure. 2. Turn the stand clockwise to lock it. (Turning it counter-clockwise will loosen from the hole.) 3.
- Page 11 connections Front/Rear Tallboy Stand How to Install the Speaker on the Stand Turn the STAND upside-down and connect it to the STAND BASE. Insert two small SCREWS into the two holes marked with arrows using a screwdriver as shown in the illustration. (HT-TZ215 : 2EA, HT-TZ315 : 3EA) Insert a large SCREW into the hole on the...
-
Page 12: Connecting The Wireless Receiving Amplifi Er (Ht-Z310/Tz312/Tz315 Only)
connections Connecting the Front, Rear, Center and Subwoofer Speakers HT-TZ215/HT-TZ315 only Center Speaker Front Speaker (R) Rear Speaker (R) Subwoofer Do not let children play with or near the speakers. They could get hurt if a speaker falls. When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct. -
Page 13: Connecting The Video Out To Your Tv
connections Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference. If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (5.8GHz) near the system, some sound interruption may be heard due to interference. -
Page 14: Hdmi Function
This product operates in Interlace scan mode (576i, 480i) for component output. If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Cinema using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC). -
Page 15: Connecting Audio From External Components
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this Home Cinema to a SAMSUNG TV using a HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+. -
Page 16: Connecting The Fm Antenna
connections AUX2 : Rear Panel OPTICAL : Rear Panel AUX IN 2 Audio Cable (not supplied) If the external analog component has only one Audio Out, connect either left or right. External Digital Component External Analog Component AUX2 : Connecting an External Analog Component Analog signal components such as a VCR. -
Page 17: Before Using Your Home Cinema
The DVD Home Cinema's remote can be used to control Samsung TVs. Plug the main unit's power cord into the AC power supply. Press the DVD RECEIVER button to operate the DVD Home Cinema. Press the FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback. -
Page 18: Mp3/Wma-Cd Playback
playback MP3/WMA-CD PLAYBACK Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played. Place the MP3/WMA disc on the disc tray. • The MP3/WMA menu screen will appear and playback will start. • The appearance of the menu depends on the MP3/WMA disc. -
Page 19: Divx Playback
playback DIVX PLAYBACK The functions on this page apply to DivX disc playback. Skip Forward/Back During playback, press the #,$ button. • $ button, Goes to the next fi le whenever you press the if there are 2 fi les or more on the disc. •... -
Page 20: Using The Playback Function
playback USING THE PLAYBACK FUNCTION Displaying Disc Information You can view disc playback information on the TV screen. Press the INFO button. Depending on the disc, the disc information display may appear different. Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC. - Page 21 playback USING THE PLAYBACK FUNCTION Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 fi le). Press the REPEAT button. • Each time the button is pressed during playback, the repeat playback mode changes as follows: REPEAT : CHAPTER ➞...
- Page 22 playback USING THE PLAYBACK FUNCTION Angle Function This function allows you to view the same scene in different angles. Press the INFO button. Press the Cursor button to move to ANGLE ( display. Press the Cursor button or numeric buttons to select the desired angle.
- Page 23 playback USING THE PLAYBACK FUNCTION Audio Language Selection Function Press the INFO button twice. Press the Cursor button or numeric buttons to select the desired audio language. • Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.
-
Page 24: Using Bluetooth
Select a Stereo headset menu on the Bluetooth device. • You will see a list of scanned devices. Select " Samsung Home Theater" from the searched list. • When the Home Cinema System is connected to the Bluetooth device, the Home Cinema System will display "Connect"... -
Page 25: Playing Media Files Using The Usb Host Feature
playback To disconnect the Bluetooth device from the Home Cinema System You can disconnect the Home Cinema System from the Bluetooth device (refer to Bluetooth devices’ user manual). • The Home Cinema System will be disconnected. • When the Home Cinema System is disconnected from the Bluetooth device, the Home Cinema System will display "DISCONNECT"... -
Page 26: System Setup
playback Fast playback During playback, press the , button. • Each time you press either button, the playback speed will change as follows: 2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal. Compatible Devices USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) MP3 Player: HDD and fl... -
Page 27: Setting Tv Screen Type
system setup SETTING TV SCREEN TYPE Depending on your TV type (Widescreen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press the MENU button. ▼ button to move to Setup and then press the Press the Cursor ENTER button. -
Page 28: Setting The Wallpaper
This selects one of the 3 wallpaper screens. 5. Press the EXIT button to exit the setup screen. • ORIGINAL : Select this to set the Samsung Logo image as your wallpaper. • USER : Select this to set the desired image as your wallpaper. -
Page 29: Setting The Delay Time
system setup SETTING THE DELAY TIME If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press the MENU button. -
Page 30: Setting The Drc (Dynamic Range Compression)
system setup SETTING THE AUDIO Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button. Press the SOUND EDIT button and then press the Cursor , button. Adjusting Front/Rear Speaker Balance You can select between 00, -06, and OFF. ... -
Page 31: Sound Fi Eld (Dsp)/Eq Function
system setup SOUND FIELD (DSP)/EQ FUNCTION DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments. EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing Press the DSP/EQ button. -
Page 32: Radio
radio LISTENING TO RADIO Remote Control Press the TUNER button to select the FM band. Tune in to the desired station. : When the #,$ button is • Automatic Tuning 1 pressed, a preset broadcast station is selected. • : Press and hold the , , . button Automatic Tuning 2 to automatically search for active broadcasting stations. -
Page 33: Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. SYMPTOM Check/Remedy Disc tray does not open. -
Page 34: Language Code List
USB 2.0 128MB Product Product Company Type Creative 128 MB MP3 Player YP-K3 Iriver 20G HDD MP3 Player YP-U3 Samsung 20G HDD MP3 Player YP-Z5F Samsung MP3 Player iAUDIO U2 Samsung MP3 Player iAUDIO G3 Samsung MP3 Player iAudio M3... -
Page 35: Appendix
appendix CAUTIONS ON HANDLING AND STORING DISCS Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. - Page 36 Center Subwoofer 3 Ω 3 Ω 140Hz~20KHz 45Hz~160Hz 86dB/W/M 86dB/W/M - Samsung Electronics Co., Ltd reserves the right to change the specifi cations without notice. 133W 135W - Weight and dimensions are approximate. 266W 270W 5.1ch speaker system Speaker system...
- Page 37 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Region Country Customer Care Center CANADA 1-800-SAMSUNG(726-7864) North America MEXICO 01-800-SAMSUNG(726-7864) U.S.A 1-800-SAMSUNG(726-7864) ARGENTINE 0800-333-3733 BRAZIL 0800-124-421 , 4004-0000...
