Please read this manual and save
it with your original sales receipt.
•
Tools needed for assembly:
screwdriver and adjustable wrench
(tools not included).
•
Use only with the Power Wheels
12 Volt Lead-Acid Rechargeable
Battery and Power Wheels® 12 Volt
Charger with Type 12V Connector
(both included).
•
Requires four "C"(LR14) alkaline
batteries for FM radio operation
(batteries not included).

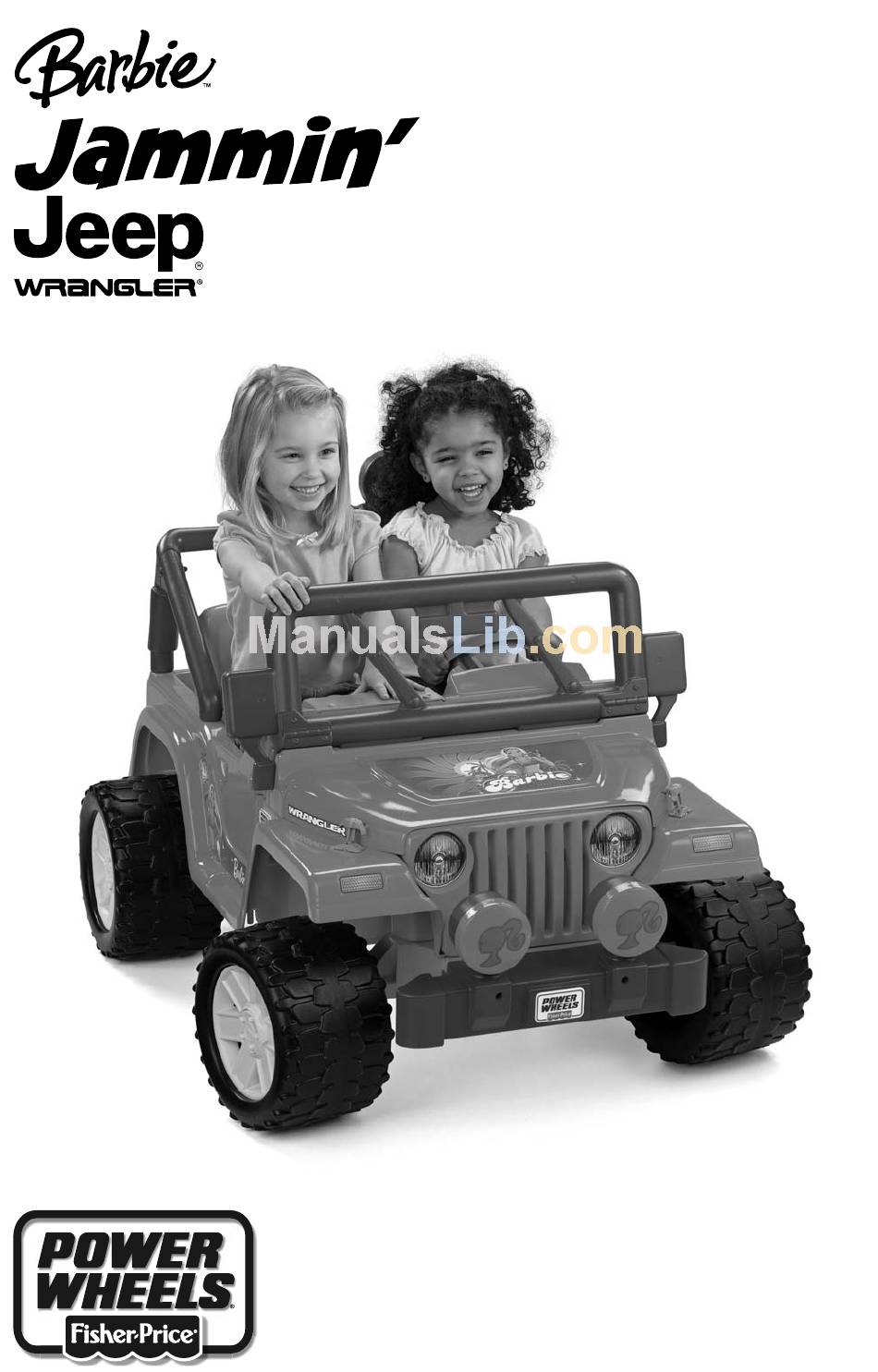

Owner's Manual
Owner's Manual
with Assembly Instructions
with Assembly Instructions
For Model T8396
For Model T8396
®
Advertisement
Table of Contents
Related Manuals for Barbie JAMMIN' JEEP T8396
Summary of Contents for Barbie JAMMIN' JEEP T8396
- Page 1 • Please read this manual and save it with your original sales receipt. • Tools needed for assembly: screwdriver and adjustable wrench (tools not included). • Use only with the Power Wheels 12 Volt Lead-Acid Rechargeable Battery and Power Wheels® 12 Volt Charger with Type 12V Connector (both included).
-
Page 2: Electrical Hazard
IMPORTANT INFORMATION ELECTRICAL HAZARD • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. - Page 3 IMPORTANT INFORMATION • Read this manual carefully for important safety information and operating instructions before using your vehicle. Keep this manual for future reference, as it contains important information. • The vehicle is designed for use on grass, asphalt, and other hard surfaces;...
-
Page 4: Assembled Parts
• If you experience a problem with this product, please call us at to a store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. • Metal parts have been coated with a lubricant to protect them during shipment. - Page 5 ASSEMBLED PARTS Key Assembly Steering Column Cap 12 Volt Battery 12 Volt Charger Light Cover – 2 Hood Latch – 2 Spacer - 2 #8-32 x 1 " Screw – 2 "x 1 " Pin – 1 #10 x " Screw – 23 #8 x 3"...
- Page 6 ASSEMBLED PARTS Note: Some parts shown are assembled on both sides of the vehicle. Fasteners not shown. T8396pr-0920...
-
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system. -
Page 8: Front View
WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle. -
Page 9: Bottom View
Steering Column BOTTOM VIEW • Wipe the steering column with a paper towel to remove any excess lubricant. • Turn the vehicle on its side. • Insert the straight end of the steering column up through the hole in the vehicle frame and the vehicle floor and out through the hole in the dash. - Page 10 Steering Column Steering Rod Hole BOTTOM VIEW • Turn the vehicle on its side. • Insert the end of the steering column through the hole in the steering rod. • Fit the steering column cap onto the end of the steering column.
- Page 11 Large Large Slots • Position the windshield so that the molded detail on the wipers faces the front end of the vehicle. • Insert and “snap” the two large tabs on the windshield into the large slots in the dash. •...
- Page 12 Short Seat Belt Strap T-Loop (Pull through slot) T-Loops Slot Seat • Turn the seat upside down. • Insert the fastener end of a short seat belt strap through the slot near the outer edge of the seat. Make sure the side of the seat belt with the fastener faces the outer edge of the seat.
- Page 13 • Fit a support to one side of the sport bar. " screw through the support, the • Insert a #8- 32 x 1 sport bar and out through the support. • Fit a #8 acorn lock nut to the end of the screw. •...
- Page 14 Door Hinge BOTTOM VIEW • Fit a hinge over the top end of the door. Hint: Each hinge is designed to fit one way. If the hinge does not fit, try the other hinge. • Insert three #10 x " screws into the hinge and tighten.
-
Page 15: Rear View
• Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations and avoid repositioning the labels • After applying a label, rub it firmly with a clean dry cloth, starting at the center, to remove any air bubbles. DASH VIEW T8396pr-0920 DECORATION... -
Page 16: Front Left Side
DECORATION FRONT LEFT SIDE FRONT RIGHT SIDE T8396pr-0920... -
Page 17: Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels Use of any other battery will damage your vehicle. Hood Battery Compartment Hood Latches • Turn the hood latches a turn. • Lift the hood to access the battery compartment. Power Wheels 12 Volt Battery Battery Retainer •... -
Page 18: Safe Driving Rules
RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: Away from swimming pools and other bodies of water to prevent drownings. -
Page 19: Vehicle Operation
Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving, and automatically knows how to stop. Beginner Use – Low Speed • Make sure the shifter is in the low speed •... -
Page 20: Battery Care
BATTERY CARE If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See next section for proper disposal. If acid comes in contact with skin or eyes, fl ush with cool water for at least 15 minutes and call a physician. -
Page 21: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels authorized service center. POSSIBLE PROBLEM Vehicle does not run Undercharged battery Charger is not working Tripped thermal fuse... - Page 22 PROBLEMS AND SOLUTIONS GUIDE POSSIBLE PROBLEM Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs in low speed High speed lock-out not but does not run in high disconnected speed...
- Page 23 PROBLEMS AND SOLUTIONS GUIDE POSSIBLE PROBLEM Vehicle runs sluggishly Vehicle is overloaded (continued) Driving conditions are too stressful Sometimes the vehicle Loose wire or connector doesn’t run, but other times it does Motor or electrical switch damage When the foot pedal is Loose wire or connector pressed, the vehicle won’t run without a push...
- Page 24 Jeep® Wrangler and its trade dress are used under license from Chrysler LLC. © Chrysler LLC 2010. BARBIE and associated trademarks and trade dress are owned by Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
