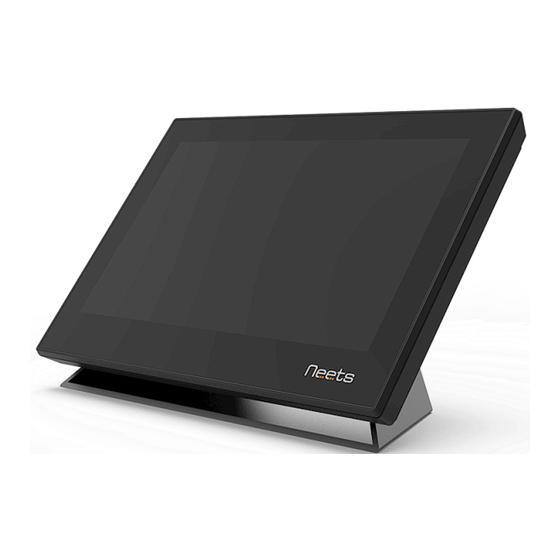

Neets - Touch Panel
Configuration guide
Doc#: 313-0001-002 REV 0
1 of 11

Advertisement

Table of Contents
loading

Related Manuals for Neets Touch Panel

Summary of Contents for Neets Touch Panel

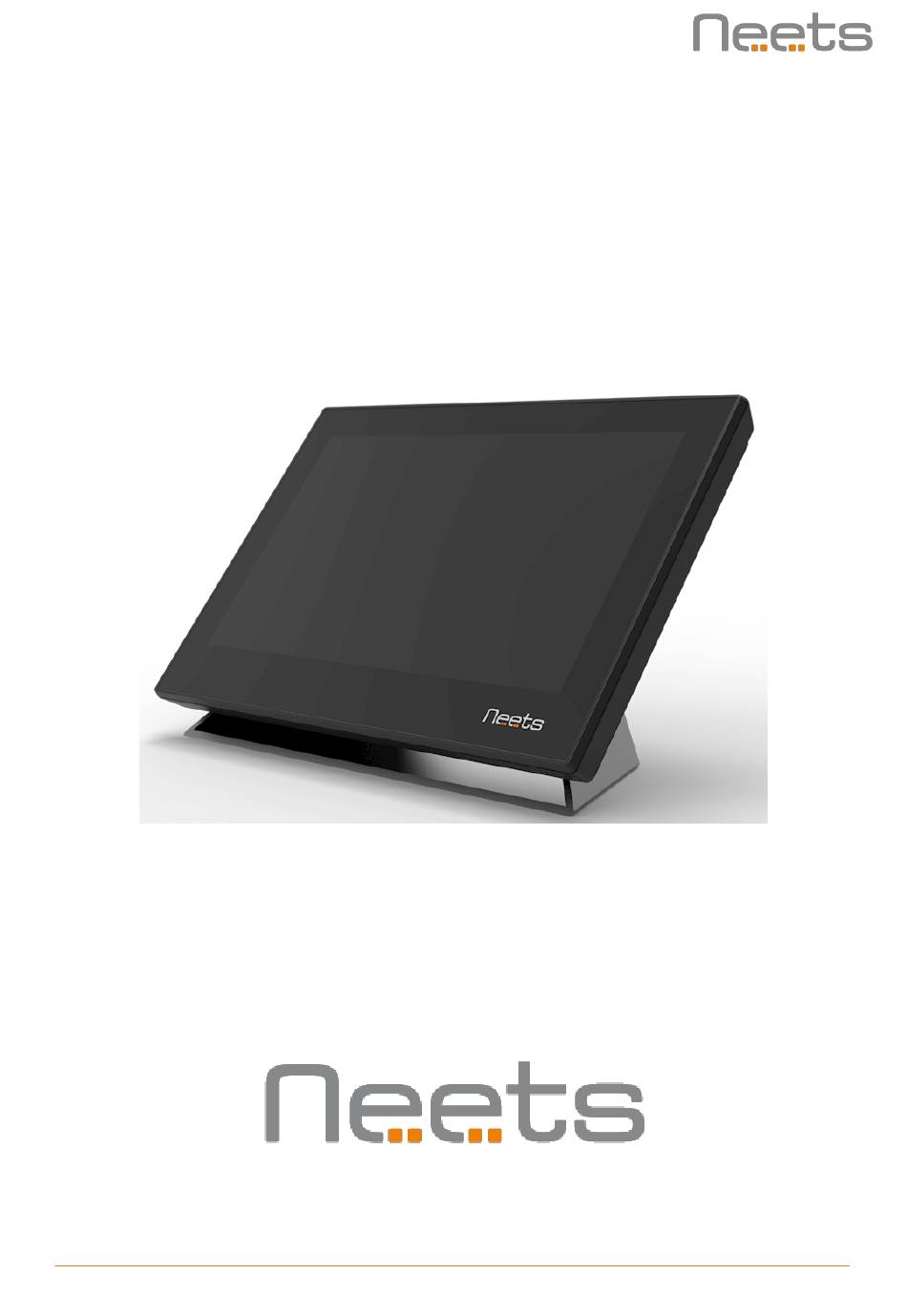

  • Page 1 Neets - Touch Panel Configuration guide Doc#: 313-0001-002 REV 0 1 of 11...

  • Page 2: Foreword

    COPYRIGHT - All information contained in this manual is the intellectual property and copyrighted material of Neets. All rights are reserved. You may not allow any third party access to content, information or data in this manual without Neets’ express written consent.

  • Page 3: Table Of Contents

    Specifications ........................4 Installation ..........................4 Configurations of the Touch Panel .................... 5 Entering the settings ......................5 Set the Touch Panel IP address .................... 5 Customizing the Touch Panel ....................7 Display ..........................7 Security: ..........................8 System ..........................9 Factory reset ........................10...

  • Page 4: Specifications

    Please visit the Neets - Touch Panel section at neets.dk for detailed specifications. Installation The Neets – Touch Panel is designed to be easily installed on the wall or it can be placed on a desk free standing using the Neets – Table Stand design to fit the Touch Panel.

  • Page 5: Configurations Of The Touch Panel

    Configurations of the Touch Panel Entering the settings To change the settings of the Touch Panel you need to press the settings button located at the button right of the Touch Panel. To access the settings menu, use the include ejector pin and press gently on the settings button.
  • Page 6 Static IP address To configure the Touch Panel with static IP: 1. In "Control system IP address" -> Enter the IP address of the control system 2. In "Ethernet settings" -> "Ethernet" -> "Advanced configure" -> Uncheck DHCP Enter the static IP address (must be in the same range as the control system)

  • Page 7: Customizing The Touch Panel

    Customizing the Touch Panel Display The display backlight of the Touch Panel will turn off after a period without user activity. When off, the display backlight will turn on immediately by tapping the display or by using the proximity sensor feature; see below.

  • Page 8: Security

    The detection range increases the lower the sensitivity level is. Change orientation To accommodate if the Touch Panel is mounted in portrait mode, the orientation of the device can be changed from the 'change orientation' setting. Note: This change require a reboot of the device.

  • Page 9: System

    Under normal condition this function is not necessary to use. Application settings From the application settings the Neets Application can be restarted by pressing force stop. Debug overlay Can be used to monitor the values of the proximity and built-in ambient light sensor.

  • Page 10: Factory Reset

    If the device is not responding and a reboot does not recover the device, a factory reset can be performed. The reset is initiated by pressing the upper pinhole switch on the backside of the Touch Panel. After the reset, the Neets application need to be updated (See how to on page 11).

  • Page 11: Application Upgrade

    2. Insert USB flash disk with new Neets Remote APK (Found on Neets.dk) 3. Push the Settings switch at the button of the Touch Panel using the included ejector pin 4. Scroll down to "Application settings" 5. Press the ”Neets Remote”...
