White Rodgers 1F82-261 Installation And Operation Instructions Manual

White Rodgers 1F82-261 Installation And Operation Instructions Manual

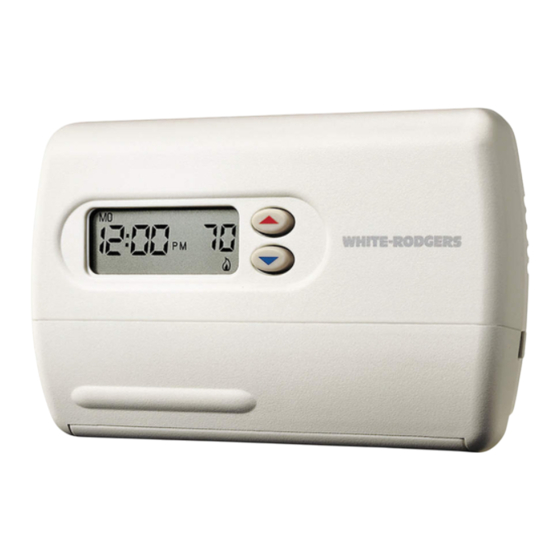

Programmable electronic digital heat pump thermostat
Hide thumbs Also See for 1F82-261:
Table of Contents

Advertisement

Quick Links

Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
nology of a solid-state microcomputer to provide precise time/
Features:
periods per day
This thermostat is intended for use with a low voltage NEC
Class II system. Do not use this thermostat with a line voltage
conditioning contractor or electrician.
All wiring must conform to local and national electrical codes
and ordinances.
carefully. Rough handling or distorting components could cause
the control to malfunction.
!
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
ELECTRICAL DATA
Electrical Rating:
20 to 30 VAC 50/60 Hz. or D.C.
0.05 to 1.0 Amps (Load per terminal)
1.5 Amps Maximum Total Load (All terminals combined)
THERMAL DATA
Setpoint Temperature Range:
45°F to 90°F (7°C to 32°C)
Operating Ambient Temperature Range:
32°F to 105°F
Operating Humidity Range:
0 to 90% RH (non-condensing)
CAUTION
-
displays time and room temperature
two-transformer systems
Do not use on circuits exceeding specified voltage.
Higher voltage will damage control and could cause
shock or fire hazard.
Do not short out terminals on gas valve or primary
control to test. Short or incorrect wiring will damage
thermostat and could cause personal injury and/or
property damage.
Thermostat installation and all components of the sys-
tem shall conform to Class II (current limited) circuits per
the NEC code. Failure to do so could cause a fire hazard.
Shipping Temperature Range:
-4°F to 149°F
APPLICATIONS
For use with the following Class II systems:
heat with 24VAC Hot and Common available
24VAC Hot and Common available
DO NOT USE WITH:
www.white-rodgers.com
www.emersonclimate.com
1F82-261
Programmable Electronic Digital
Heat Pump Thermostat
INSTALLATION AND
OPERATION INSTRUCTIONS
DESCRIPTION
PRECAUTIONS
WARNING
!
SPECIFICATIONS
PART NO. 37-6175F
Replaces 37-6175E
1338

Advertisement

Table of Contents
loading

Related Manuals for White Rodgers 1F82-261

Summary of Contents for White Rodgers 1F82-261

  • Page 1 1F82-261 Programmable Electronic Digital Heat Pump Thermostat INSTALLATION AND OPERATION INSTRUCTIONS Operator: Save these instructions for future use! FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE. DESCRIPTION...

  • Page 2: Installation

    INSTALLATION REMOVE OLD THERMOSTAT Optional (2) "AA" batteries Screw anchors complete. Ensure that electrical power is disconnected. 2. Remove the front cover of the old thermostat. With wires still attached, remove wall plate from the wall. If the old and the wall mounting plate as an assembly. 3.

  • Page 3: Wiring Diagrams

    WIRING DIAGRAMS THERMOSTAT SYSTEM See Note ** SYSTEM Changeover MONITOR Emergency Relay* SWITCH Compressor Relay Relay Relay Contactor (Stage 2) 24 VAC 120 VAC Neutral * Changeover Relay is energized in COOL when O/B switch is in the “O” position Changeover Relay is energized in HEAT when O/B switch is in the “B”...

  • Page 4: Check Thermostat Operation

    OPERATION CHECK THERMOSTAT OPERATION CAUTION If at any time during testing your system does not operate Do not allow the compressor to run unless the compressor oil heaters have been operational for 6 Turn on power to the system. hours and the system has not been operational for at least 5 minutes.

  • Page 5: Configuration Menu

    OPERATION 1) Select Temporary Hold Time - The thermostat can hold any 11 Flame icon ( temperature you set it to for the amount of time you select on in the HEAT position. Flame icon ( ) is displayed flashing increments.

  • Page 6: Manual Operation

    OPERATION 5) Select Energy Management Recovery OFF or ON - Energy MANUAL OPERATION HOLD TEMPERATURE HEAT or COOL, HOLD reach the program setpoint at the time you specify. will be displayed. Use to adjust the tempera- 6) Select filter replacement run time - The thermostat will ture.

  • Page 7: Check Your Programming

    OPERATION 7. Repeat steps 3 through 5 for the 3rd and 4th heating program 1st period heating periods. 1st period cooling start time and temperature). Use the table to plan your program time periods and the tem- heating period and the currently programmed temperature. peratures you want during each period.

  • Page 8: Troubleshooting

    TROUBLESHOOTING Reset Operation pressing contact your heating/cooling service person or place of purchase. Symptom Possible Cause Corrective Action No Heat/No Cool/No Fan (common problems) 3. Furnace blower compartment door or panel Replace door panel in proper position to engage safety inter- loose or not properly installed.
