Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.

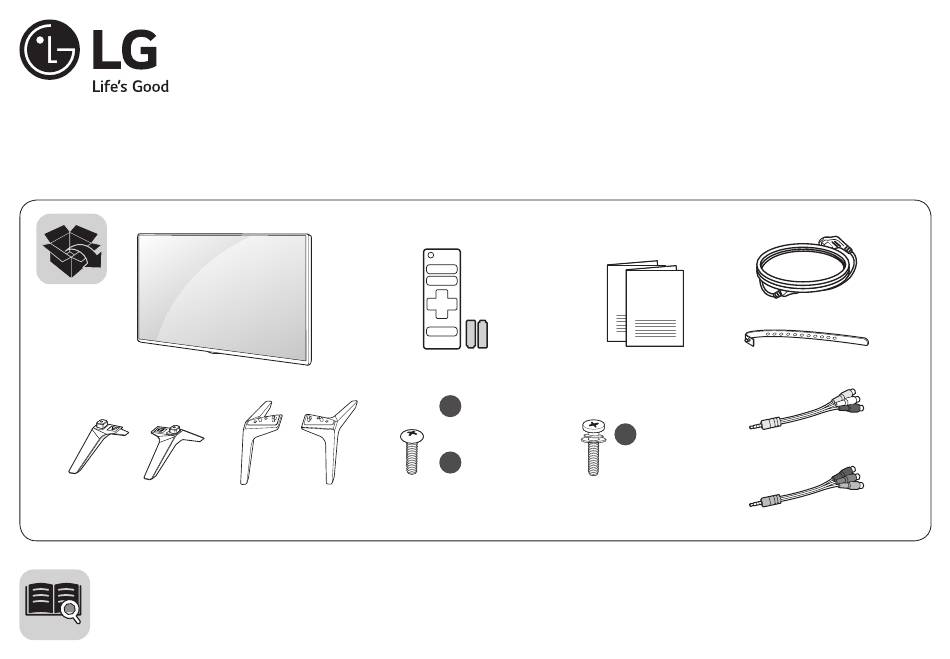

43UU340C
49/55/65UU340C
www.lg.com
12
14
AAA
12
14
16
20
a
X 2
(M4 X L16)
43UU340C
a
X 4
(M4 X L16)
49/55UU340C
16
20
b
X 6
(M4 X L20)
65UU340C
LED TV
43UU340C
49UU340C
55UU340C
65UU340C
