Installation
Manual

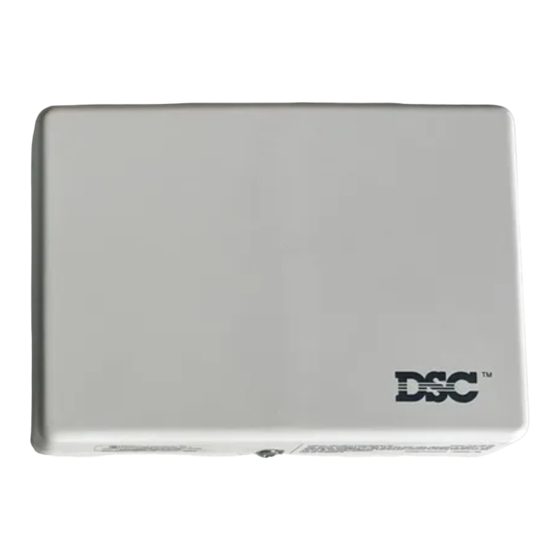

PC5132-RS
Version 3.O

Advertisement

Table of Contents
loading

Summary of Contents for DSC PC5132-RS

  • Page 1: Installation Manual

    Installation Manual PC5132-RS Version 3.O...
  • Page 2 FCC COMPLIANCE STATEMENT CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use this equipment. This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.
  • Page 3: Table Of Contents

    Batteries ....................5 Section 2: PC5132-RS Set up & Wiring Unpack the PC5132-RS ................ 6 Choose a Mounting Location for the PC5132-RS ......... 6 Installing the Antennas ................. 6 Connect the PC5132-RS Receiver ............7 Section 3: Enroll & Program Devices A Note about Electronic Serial Numbers ..........
  • Page 4 WARNING follow. The smoke detectors may have been improperly in- Please Read Carefully stalled or positioned. Smoke may not be able to reach the smoke detectors, such as when the fire is in a chimney, walls or roofs, Note to Installers or on the other side of closed doors.
  • Page 5 PC5010 v2.1, PC1555 v2.1 and PC580 v2.1 or higher. For more information regarding this feature, see Section 3.4 “Identified Wireless Keys.” We are confident you will find the PC5132-RS Wireless Receiver a unique and useful control panel enhancement.
  • Page 6: Section 1: Introduction

    Read this manual before you begin installing the PC5132-RS. 1.1 How to use this Manual To install and set up the PC5132-RS and wireless devices, follow these steps: 1. Temporarily mount and wire the PC5132-RS module (see Section 2 ) 2.
  • Page 7: Compatible Wireless Devices

    Please refer to the Installation Instruction sheets of the following devices for more information. The PC5132-RS v3.0 can receive signals from the following devices: This unit is listed as a single or multiple station smoke detector accessory. • WLS904 Motion Detector •...
  • Page 8: Section 2: Pc5132-Rs Set Up & Wiring

    2. Attach both antennas to the terminals marked ANT1 and ANT2, (not GND1 and GND2). Install the antennas ONLY as shown in the following diagrams: DO NOT install the antennas this way. The PC5132-RS will not be able to receive signals:...
  • Page 9: Connect The Pc5132-Rs Receiver

    Once power is restored, the system will automatically detect the presence of the new module. Now that you have wired the PC5132-RS and installed the antennas, you should enroll and program the wireless devices. See section 3 for instructions.
  • Page 10: Section 3: Enroll & Program Devices

    New Wireless Device ESNs All new devices have both a 5-digit and a 6-digit serial number printed on them so that they can be used with all versions of the PC5132-RS wireless receiver. When enrolling devices with the PC5132-RS: For PC5132-RS v2.x and lower: enter the 5-digit ESN For PC5132-RS v3.0 and higher: enter the 6-digit ESN...
  • Page 11: Enroll Wireless Devices Using Zones (Wls904, Wls905, Wls906, Wls907 And Wls908)

    3.2 Enroll Wireless Devices Using Zones (WLS904, WLS905, WLS906, WLS907 and WLS908) Enroll wireless devices which use zones (universal transmitters, motion detec- tors, smoke detectors, and panic pendants): 1. At a system keypad, enter [ ][8][Installer’s code] to go the installer’s programming section.
  • Page 12: Enroll & Program Wireless Keys (Wls909)

    3.3 Enroll & Program Wireless Keys (WLS909) For wireless keys to work on the system, you need to enroll them and then program the function buttons. Wireless keys are not assigned to zones and require no zone programming. You can enroll up to 16 wireless keys on the system.
  • Page 13: Identified Wireless Keys

    (using [ ][5] access code programming) for this feature to work correctly. NOTE: Program these access codes on the system after you have connected the PC5132-RS to the Keybus (see section 2.4). Refer to your system Installation Manual for information on access code programming.
  • Page 14: Enrolling & Programming Handheld Keypads (Wls910)

    3.5 Enrolling & Programming Handheld Keypads (WLS910) For handheld keypads to work on the system, you need to enroll them and then program the function buttons. You can enroll up to 4 handheld keypads on the system. Enroll Handheld Keypads 1.
  • Page 15: Deleting Wireless Devices

    3.6 Deleting Wireless Devices To remove a wireless device from the system, follow the guideline for adding a wireless device. Program the ESN as [000000]. The wireless device for the zone will be removed. NOTE: You may need to remove power from the panel in order to clear troubles caused by deleted zones.
  • Page 16: Section 4: Other Programming

    3. To exit press [#]. If the PC5132-RS module does not show on the keypad, one of the following conditions may be present: • the module is not connected properly to the Keybus •...
  • Page 17: Enable Supervision Of Wireless Zones

    To program the wireless supervisory window: 1. Enter [ ][8][Installer Code] to enter Installer Programming. 2. Enter [804] to enter the PC5132-RS Module Programming. 3. Enter sections [81]. 4. Enter the time period for the supervisory window (valid entries are 01-24 hours).
  • Page 18: Pc5132-Rs Software Default

    For instructions on restoring the default programming of the control panel or any other connected module, see your system Installation Manual. Now that you have completed all PC5132-RS related programming, you can test and mount the receiver and devices. See section 5 for more information.
  • Page 19: Section 5: Testing & Mounting

    NOTE: Do not mount any device where a “bad” test result was indicated. If several wireless devices produce BAD test results, you may need to move the PC5132-RS to a better location. (See section 2.2 for tips on finding a location for the PC5132-RS.) 7.
  • Page 20: Test Wls908, Wls909 And Wls910 Reception

    PC5132-RS receiver. Moving the PC5132-RS higher will usually improve the reception. If you move the PC5132-RS, repeat the tests described in sections 5.1 and 5.2 on all the wireless devices. Continue to test the devices until you have found...
  • Page 21 & Follow these steps to test panic pendants: 1. Begin testing when your system is in the ready state and the keypad Ready light is on. 2. Go to an LCD keypad. NOTE: If your system is partitioned, you can only view the Panic Pendant test result on a partition LCD keypad.
  • Page 22: Section 6: Additional Notes

    3 When the fresh batteries are in place, re-attach the cover to the back plate. The tamper is restored and the zone sends a battery trouble restoral signal to the PC5132-RS. The battery trouble is now clear and the device should function normally.
  • Page 23: Section 7: Troubleshooting

    • Verify that you are testing the correct zone • Verify that the correct ESN was entered when the device was enrolled • Verify that the device is in range of the PC5132-RS. Try testing the device in the same room as the receiver.
  • Page 24: Programming Worksheets

    • 6-digit entry is required. See Section 3.1 “A note on Electronic Serial Numbers” for details on programming 6-digit serial numbers. • When enrolling devices with 5-digit serial numbers on the PC5132-RS v3.0, the first digit must be zero (0), followed by the 5-digit serial number (6-digits total).
  • Page 25 **30 Panic Alarm * Sensor Reset can be used when the PC5132-RS is connected to the PC5010. Command outputs are not available for PC5010 software v1.x. ** These can only be used for wireless key function keys and should not be used...
  • Page 26 Default = 00 Partition 1 Handheld Keypad Options [57] Function Key 1 Function Key 3 l _ ___ l _ ___ l l _ ___ l _ ___ l Function Key 2 Function Key 4 l _ ___ l _ ___ l l _ ___ l _ ___ l Partition 2 Handheld Keypad Options [58] Function Key 1...
  • Page 27 [83] Zone Device Supervision Options (9-16) Default = ON Option ON Option OFF Option 1 Zone 09 Supervision enabled Disabled l _ _______ l Option 2 Zone 10 Supervision enabled Disabled l _ _______ l Option 3 Zone 11 Supervision enabled Disabled l _ _______ l Option 4...
  • Page 28 Partition Assignments [90] Handheld Keypads (1-4) Partition Assignments Default = OFF Option ON Option OFF Option 1 Keypad 1 on partition 2 On partition 1 l _ _______ l Option 2 Keypad 2 on partition 2 On partition 1 l _ _______ l Option 3 Keypad 3 on partition 2 On partition 1...
  • Page 29: Appendix A: Guidelines For Locating Smoke Detectors

    Guidelines for Locating Smoke Detectors Experience has shown that all hostile fires in family living units generate smoke to a greater or lesser extent. Experiments using typical fires in family living units indicate that detectable quantities of smoke precede detectable levels of heat in most cases. In existing homes, NFPA Standard 72 requires that a smoke detector be installed outside each sleeping area and on each additional story of the family unit.
  • Page 30: Index

    17 Keybus 7 mount receiver 7 handheld keypad 18 devices 18 motion detector 17 PC5132-RS 18 panic pendant 18 PC5132-RS 17 default pendant battery 18 module 16 number placement 17 panel 16 electronic, serial 8...
  • Page 31: Limited Warranty

    LIMITED WARRANTY ter a reasonable number of attempts will be lim- ited to a replacement of the product, as the ex- Digital Security Controls Ltd. warrants the origi- clusive remedy for breach of warranty. Under nal purchaser that for a period of twelve months no circumstances shall Digital Security Controls from the date of purchase, the product shall be Ltd.
  • Page 32 © 1998 Digital Security Controls Ltd. 1645 Flint Road, Downsview, Ontario, Canada M3J 2J6 Tel. (416) 665-8460 • Fax (416) 665-7498 • Tech. Line 1-800-387-3630 www.dscgrp.com Printed in Canada 29003018 R1...
