DSC PC5320 Installation Instructions Manual

FCC COMPLIANCE STATEMENT
CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority
to use this equipment.
This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with
the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found
to comply with the limits for Class B device in accordance with the specifications in Subpart "B" of Part 15 of FCC Rules,
which are designed to provide reasonable protection against such interference in any residential installation. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to
television or radio reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Re-orient the receiving antenna
•Relocate the alarm control with respect to the receiver
•Move the alarm control away from the receiver
•Connect the alarm control into a different outlet so that alarm control and receiver are on different circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet prepared by the FCC helpful: "How to Identify and Resolve Radio/Television
Interference Problems". This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402,
Stock # 004-000-00345-4.
Limited Warranty
DSC warrants that for a period of one year from the date of purchase, the product shall be free
of defects in material and workmanship under normal use and that in fulfillment of any breach
of such warranty, DSC shall, at its option, repair or replace the defective equipment upon return
of the equipment to its repair depot. This warranty applies only to defects in materials and
workmanship and not to damage incurred in shipping or handling, or damage due to causes
beyond the control of DSC, such as lightning, excessive voltage, mechanical shock, water dam-
age or damage arising out of abuse, alteration or improper application of the product
.
The foregoing warranty shall apply only to the original buyer, and shall be in lieu of any and all
other warranties, whether expressed or implied and of all other obligations or liabilities on the
part of DSC. This warranty contains the entire warranty. DSC neither assumes responsibility
for, nor authorizes any other person purporting to act on its behalf, to modify or to change this
warranty, nor to assume for it any other warranty or liability concerning this product.
In no event shall DSC be liable for any direct, indirect or consequential damages, loss of antic-
ipated profits, loss of time or any other losses incurred by the buyer in connection with the pur-
chase, installation or operation or failure of this product.
Important!
DSC recommends that the entire system be completely tested on a regular basis. However,
despite frequent testing, and due to but not limited to criminal tampering or electrical dis-
ruption, it is possible for this product to fail to perform as expected.
©2001 Digital Security Controls Ltd.
Toronto • Canada • 1-800-387-3630 • www.dsc.com
Printed in Canada 29005808 R001

INSTALLATION INSTRUCTIONS

PC5320 Multiple Wireless
Receiver Module
The PC5320 connects to the primary Keybus of a control panel* and provides four secondary 4-wire
connections for up to four PC5132 wireless receiver modules. The PC5320 does not provide addi-
tional zones but enables the 32 zones to be distributed over a greater area. The four PC5132
are programmed identically, each programmed zone redundant on the remaining PC5132 modules.

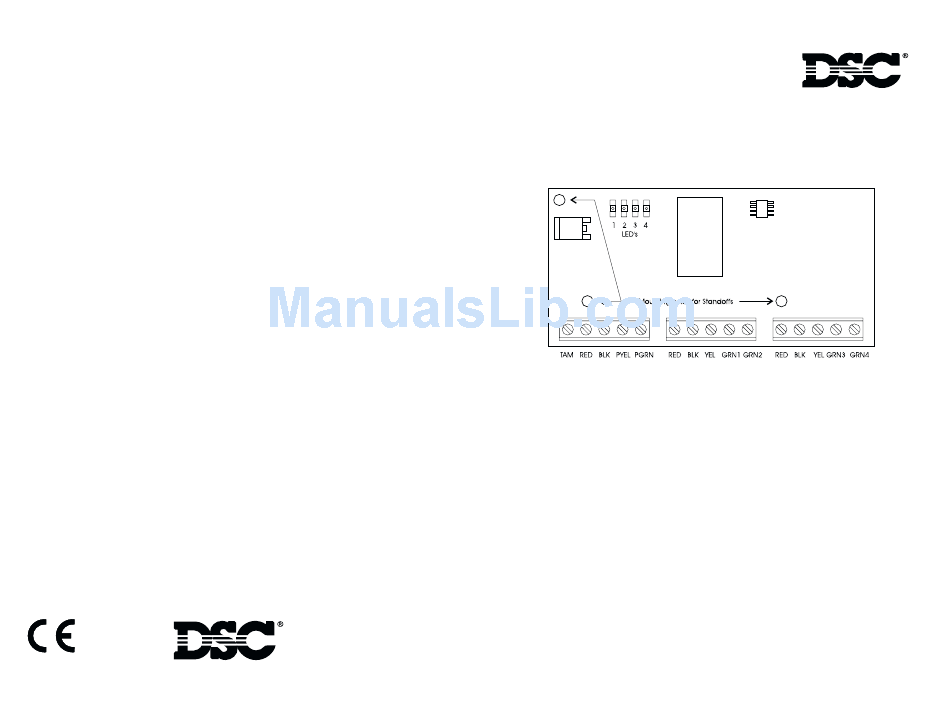

Figure 1 PC5320 Module
SPECIFICATIONS
• Voltage...12 V ( NOM)
DC
• Current...55mA, plus current drain of each PC5132
connected.
Compatible Modules
• PC5132-433 v3.00 and up
• LCD5501Z32
Zone Supervision
Each zone is supervised by all PC5132s connected to the PC5320. A zone must be missing from all the
PC5132s before it will send a zone supervision trouble to the control panel. Only one PC5132 is required to
detect a zone and restore the trouble.
Zone Tampers, Violations and Restorals
Zone tampers, violations and restorals are processed by the PC5320. When a PC5132 connected to the
PC5320 detects a tamper, violation or restoral, the PC5320 will send the information to the panel.
Module Tampers & Troubles
The PC5320 tamper uses the PC5132 tamper slot. When a PC5132 is tampered or has a supervisory trouble
condition the PC5320 sends the tamper/trouble to the control panel and flashes the corresponding Keybus
LED. The panel will log the first PC5132 tamper, and will not log the PC5132 tamper restoral until all
PC5132s are restored. The PC5320 tamper is identical to a PC5132 tamper and must also be restored.
LED Field
The LED field indicates when a PC5132 has been enrolled on a PC5320 bus and indicates when there is a
trouble condition on a PC5320 bus. When a PC5132 is enrolled, the corresponding LED will turn on. For a
trouble condition the corresponding LED will flash. For a PC5320 tamper, the LEDs will remain unchanged.
A fault on a PC5320 bus will cause all LEDs to flash.
.
*Compatible Control Panels
• PC5008
• PC501x
• PC1555
• PC580
• PC5020
