Lorex LWB4901AC Quick Start Manual

Package Contents
* Per camera in multi-camera packs
• HD Wire-Free Security Cameras
• Camera Mounting Kit*
• Rechargeable Power Pack*
• Camera Antenna*
• Allen Key
• Power Pack Adapter
Safety Precautions
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Use only the supplied regulated power supply provided with the
product or compatible accessories. Use of a non-regulated, non-
conforming power supply can damage the product and void the
warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
any harsh, chemical-based cleaners.
Disclaimers
• For a full list of compatible recorders, visit lorex.com/compatibility.
• Not intended for submersion in water. Installation in a sheltered
location recommended.
Resources

Need Help?

Visit us online for up-to-date software
and complete instruction manuals
1
Visit lorex.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab
Copyright © 2018 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves
the right to modify product design, specifications and prices, without
notice and without incurring any obligation. E&OE. All rights reserved.
LWB4801AC_LWB4901AC_QSG_EN_R1

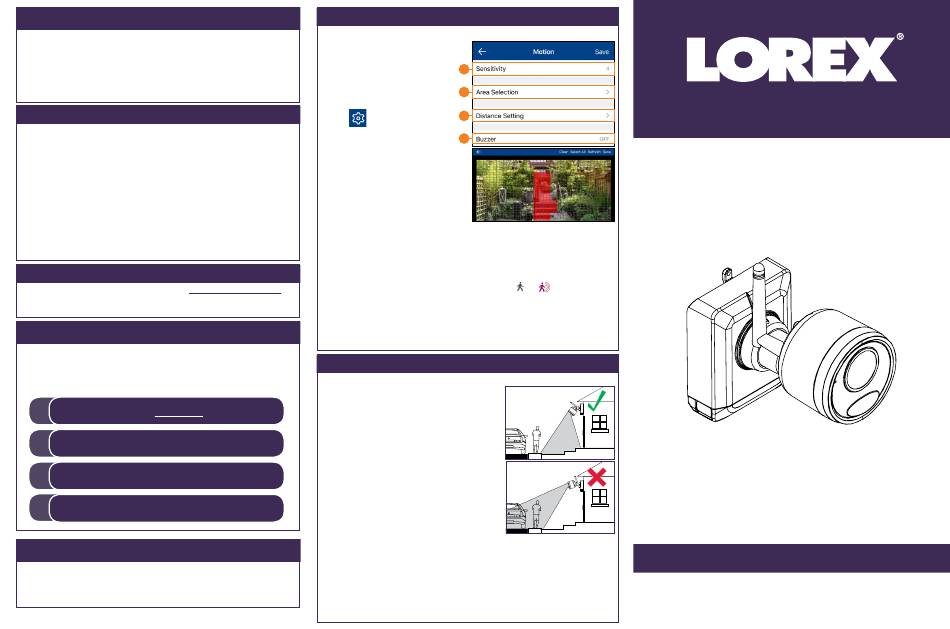

Optimizing Motion Detection
Customize motion detection settings to ensure motion events are being
recorded and reduce false alarms.
To optimize motion detection:
1. Launch the Lorex Cirrus
a
app.
2. Tap a channel in Live View to
b
select it.
c
, then tap Motion.
3. Tap
4. Configure the following as
d
needed:
a. Sensitivity: The amount of motion
needed to trigger recording (e.g.,
higher sensitivity requires less
motion to trigger recording).
b. Area Selection: Set the active area
for motion detection. Video appears
with a red grid overlayed, meaning
the whole image is active. Tap red
squares to disable motion detection in those areas (see example image to the
right). Tap Save when finished.
TIP: Disable areas that will trigger unwanted motion events, like busy streets
or trees and shrubs that will move in the wind.
c. Distance Setting: Configure distance setting for motion detection. While
watching the camera's video on your mobile device, recreate a motion event
in front of your camera. The icon will change from
detected by the camera. Change the distance setting if motion detection is
being triggered by unwanted events.
NOTE: Distance will be affected by temperature.
d. Buzzer: Set the recorder to sound an alarm when motion is detected.
5. Tap Save. Repeat for other cameras on the system.
Installation Tips
Follow the tips below for more accurate motion detection and to optimize
battery life:
• See images to the right for ideal setup. It is
recommended to place your camera at least
7ft (2.1m) above the ground and angle it slightly
downward toward the monitoring area, excluding
any busy areas (e.g., sidewalks or roadways).
• Ensure the camera image is free of obstructions
(i.e., tree branches).
• Position the camera no more than 20ft (6.1m)
away from the area you wish to monitor.
• See the "Optimizing Motion Detection" section to
customize motion settings for each camera on
your system.
• Ensure you have configured the active area for
motion detection so that only areas of interest
are selected. See the "Optimizing Motion
Detection" section for details.
• For best performance, position the camera so that objects of interest will move
from side-to-side across the camera image, rather than moving towards or away
from the camera.
• Install the camera within range of the recorder (noted in the camera's
specifications).
• This camera is weather resistant for outdoor use (IP66 rated). Installation in a
sheltered location is recommended.
• Battery life will vary based on temperature, settings and number of events.

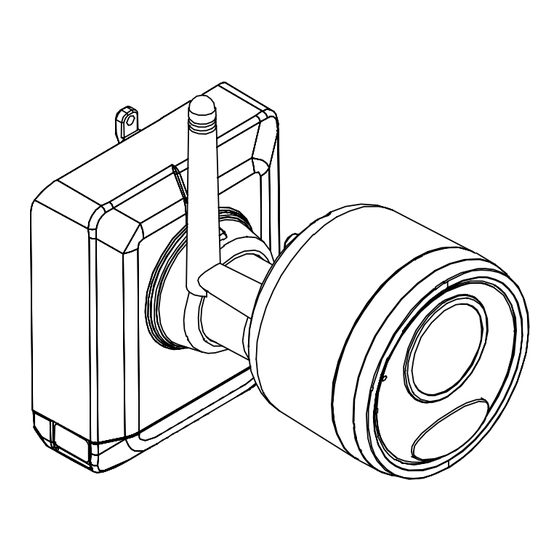

HD Wire-Free Add-On Camera
Quick Start Guide
English Version 1.0
to when motion is
LWB4801AC / LWB4901AC SERIES
www.lorex.com
