TABLE OF CONTENTS INTRODUCTION FOREWORD FEATURES FCC, IC AND SAFETY INFORMATION INFORMATlON.. IC COMPLIANCE NOTICE WARNING AND CAUTIONS SAFETY TIPS OPERATING GUIDE CONNECTING TO YOUR COMPUTER CONTROL LOCATIONS AND FUNCTIONS POWER MANAGEMENT SYSTEM SIGNAL CONNECTlONS AND PIN ASSIGNMENT TROUBLESHOOTlNG SPEClFlCATlONS APPENDIX SIGNAL TIMING CHART Note...

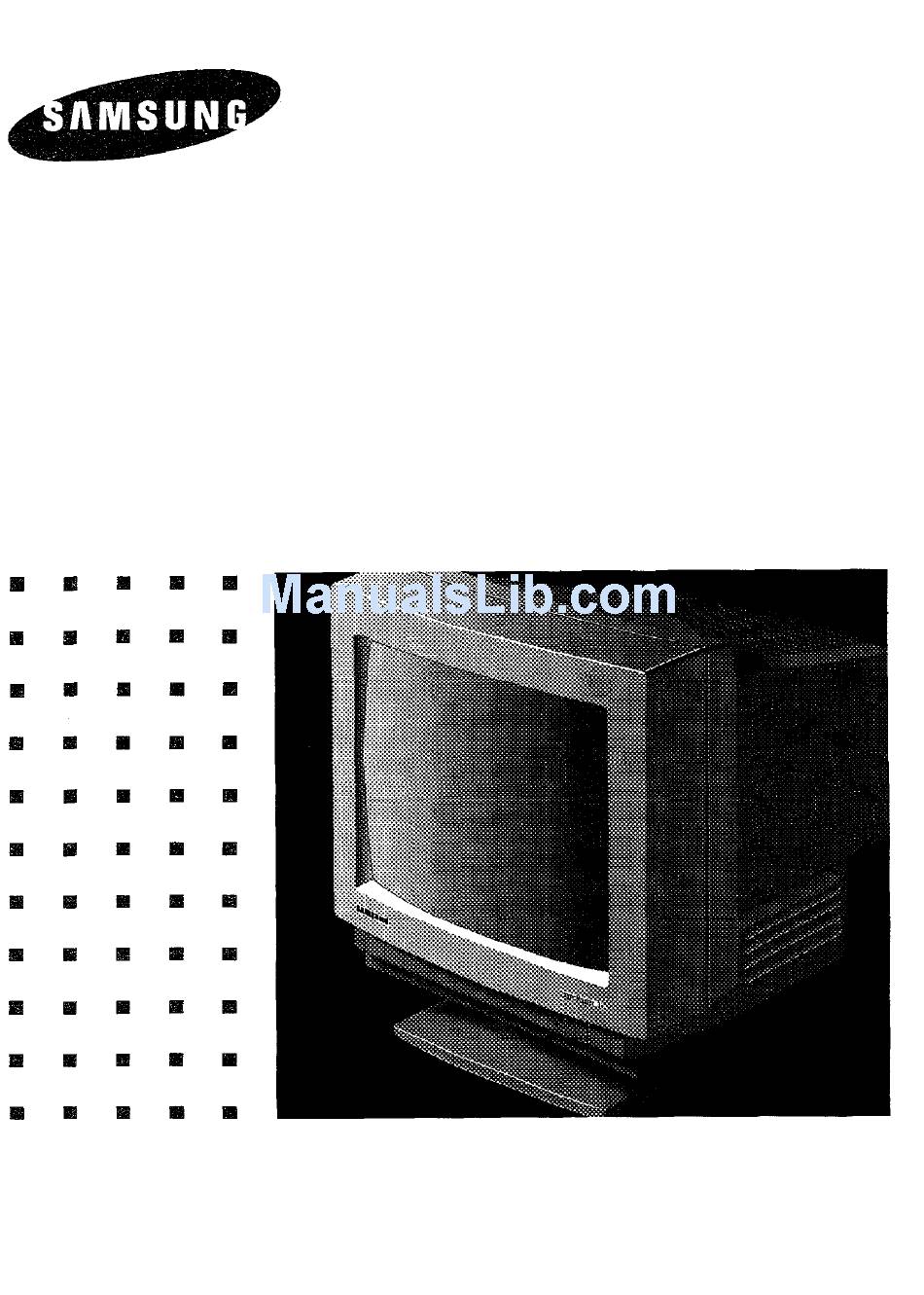

INTRODUCTION FOREWORD First, we would like to thank you for your purchase of this monitor. This monitor is 14 inch, high resolution, color display monitor. This manual covers the use, and points of caution, when operating this monitor. Please take the time to read this manual so that you will obtain the best performance and most use from your monitor.
FCC, IC AND SAFETY INFORMATION FCC INFORMATION INSTRUCTIONS TO USER Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
IC COMPLIANCE NOTICE This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations of ICES-003. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement ICES-003 sur le Matériel brouilleur du Canada. WARNING AND CAUTIONS The lightning flash and arrowhead within the triangle is a warning sign alerting you of “dangerous voltage”...
SAFETY TIPS Make sure the voltage designation on your monitor corresponds to local electrical supply before connecting the AC power cord to an outlet. To avoid electric shock, never touch the inside of the monitor. Only a qualified technician should open the monitor's case.
OPERATING GUIDE CONNECTING TO YOUR COMPUTER Signal Input AC Cord Inlet This monitor can be connected to any IBM compatible analog display adapter. Such adapters include VGA, 8514/A, XGA, and the built-in video system of IBM PS/2 computers and compatibles. To attach the monitor to your system, use the following instructions: 1.
CONTROL LOCATIONS AND FUNCTIONS BEFORE OPERATING THE MONITOR Please take the time to familiarize yourself with the locations and functions of all the monitor’s controls so that you can adjust it for the optimum display. Front View 1. Power Switch (PUSH) 2.
Page 10
1. Power Switch Use to turn monitor power on and off. Push switch once to turn monitor power on. LED power on indicator will also turn on. Push switch once again to turn monitor power off. 2. Brightness Control Use to adjust the overall brightness of the displayed image.
If your computer system can not support a display power management function, you may purchase a optional DPMS software program to have power saving function. Please contact SAMSUNG or your dealer for detail information. Table : Display Power Management Signaling (DPMS) Standard...
SIGNAL CONNECTIONS AND PIN ASSIGNMENTS D-SUB CONNECTOR The 9 pin D-SUB connector can be used with the supplied 9-15 pin cable. The 15 pin side connects to any IBM compatible VGA video port, the 9 pin side to the monitor’s connector.
TROUBLESHOOTING Before calling an authorized service center, please check this troubleshooting chart. Many of the problems that can occur are easily corrected without the need of a technician. TROUBLE CONDITION Image is not displayed. Color of image on screen is abnormal.
SPECIFICATIONS CRT Size CRT Screen Dot Pitch Scanning Frequency Display Colors Analog Input Maximum Resolution (Interlaced Mode) Horizontal Vertical Input Signal Video Signal Separate Sync Video Band Width (Pixel Time) Power Supply Power consumption Dimensions/Weight (Approximately) Unit Carton Environmental Considerations Operating Temperature Humidity Storage Temperature...
