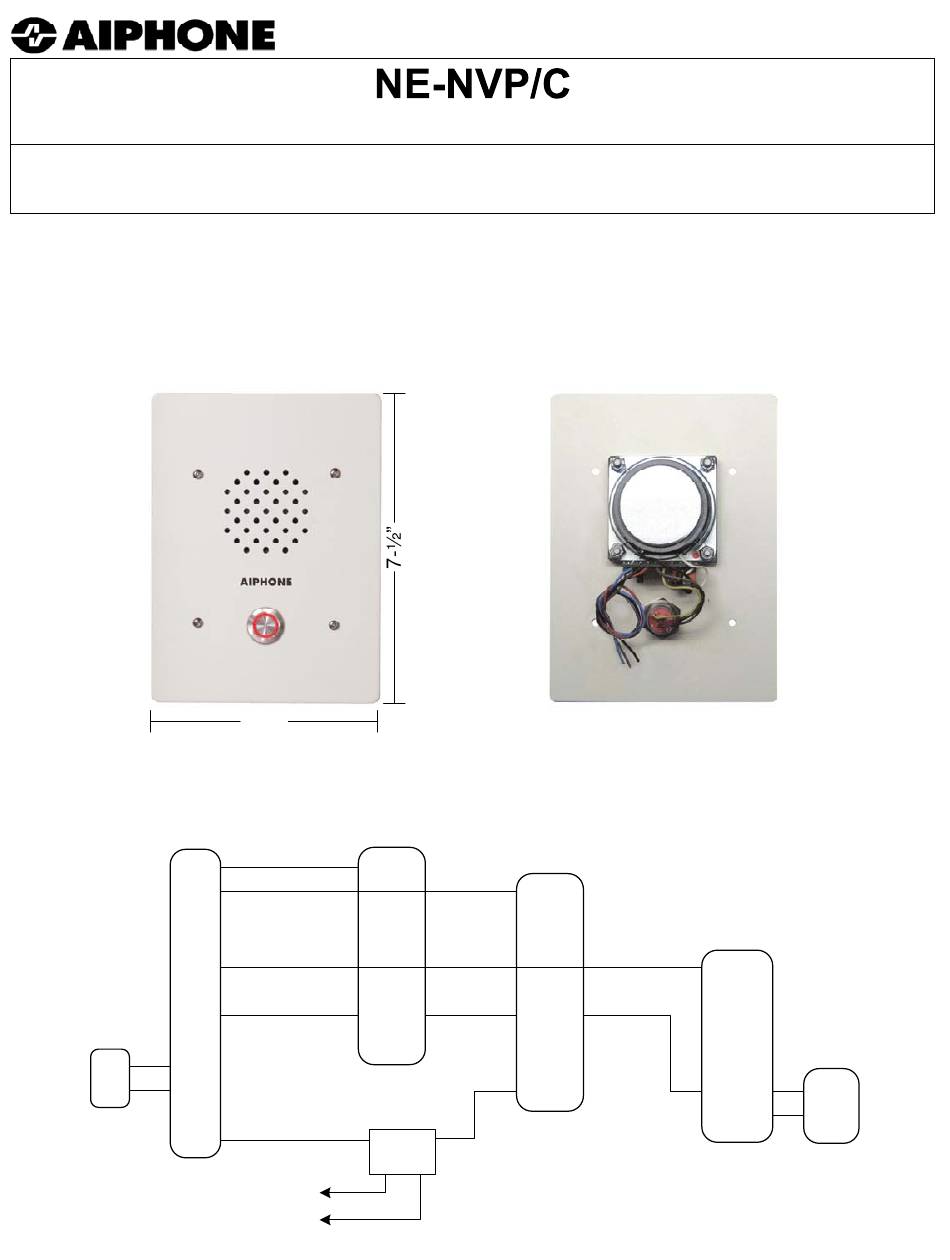

Vandal Proof and Weather Resistant Sub Station for NEM
The NE-NVP/C is a vandal proof and weather resistant sub station designed for use with the NEM system.
It is constructed of 11 gauge carbon steel with a white powder-coated finish. The NE-NVP/C will flush
mount into a 3-gang masonry type box (Raco model 692 or equivalent) or surface mount using the SBX-
NVP. Tamper proof screws and a tool for installation are included.
WIRING DIAGRAM:
NEM, NDR
1
2
3
~
20
E
PS-2420UL
+
+
-
-
H
Surface Mount Box for NE-NVP/C
- INSTRUCTIONS -
Front View
5-½"
NE-NVP/C
Red
Blk
Blu
Blk
RY-PA
Yellow
SBX-NVP
NE-NVP/C
Red
Blk
Blu
Pur
Blk
Back View
NE-NVP/C
Red
Blk
Blu
NBY-4A
Blu
Blu
Pg. 1
Advertisement
Related Manuals for Aiphone SBX-NVP
Summary of Contents for Aiphone SBX-NVP
- Page 1 Vandal Proof and Weather Resistant Sub Station for NEM SBX-NVP Surface Mount Box for NE-NVP/C - INSTRUCTIONS - The NE-NVP/C is a vandal proof and weather resistant sub station designed for use with the NEM system. It is constructed of 11 gauge carbon steel with a white powder-coated finish. The NE-NVP/C will flush mount into a 3-gang masonry type box (Raco model 692 or equivalent) or surface mount using the SBX- NVP.
- Page 2 Wiring Distance: 420' with 22AWG; 1,000' with 18AWG. Dimensions (HxWxD): NE-NVP/C alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4" Mounting Depth: Provide mounting box with a minimum depth of 2-1/2" to allow space for internal components.
