SyncMaster 960HD
SyncMaster 960HD
Install Driver
Install Program

Advertisement

Table of Contents
loading

Related Manuals for Samsung SyncMaster 960HD

Summary of Contents for Samsung SyncMaster 960HD

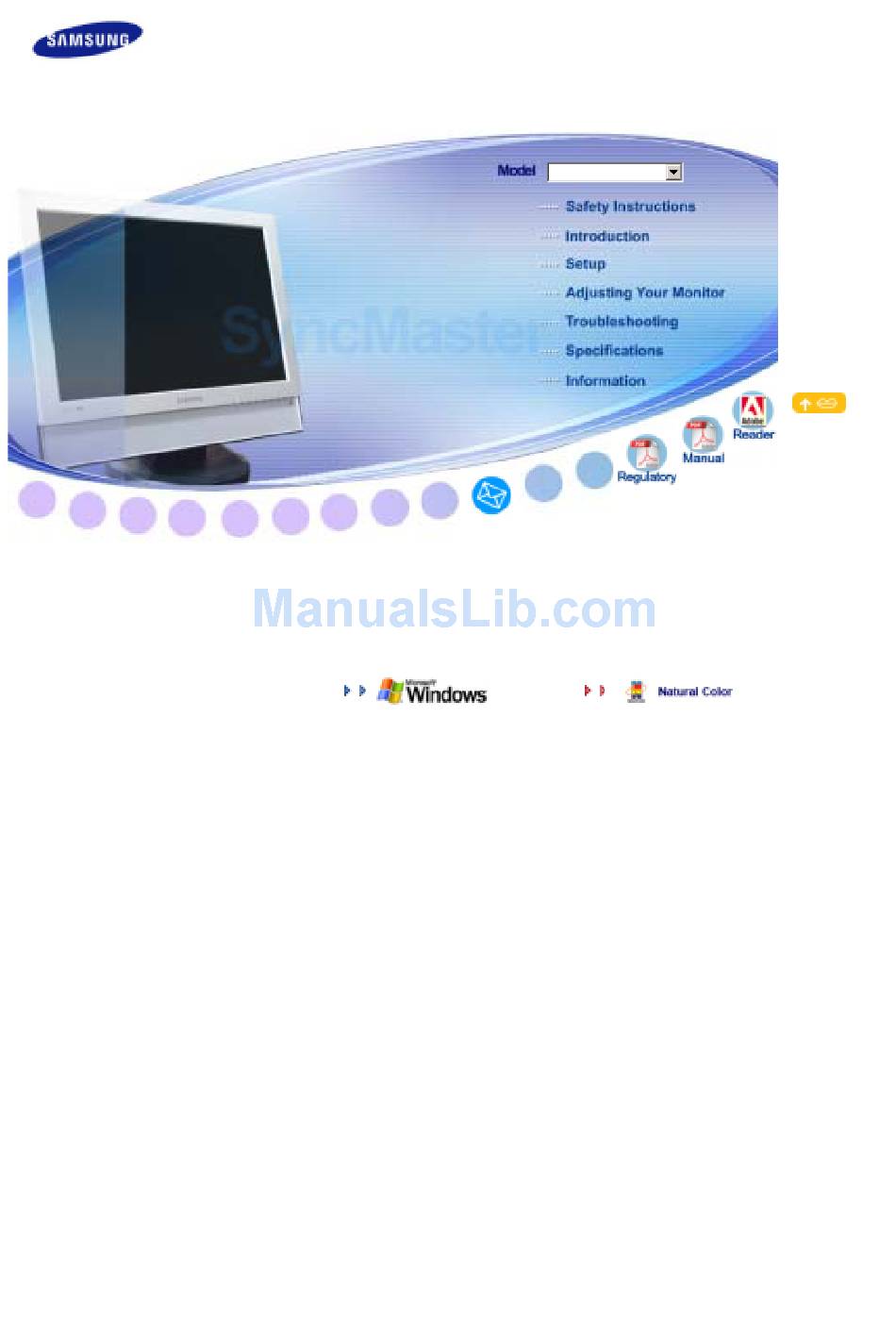

  • Page 1 SyncMaster 960HD SyncMaster 960HD Install Driver Install Program...
  • Page 2 Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to active screen mode. Do not use a damaged or loose plug.
  • Page 3 Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage. Insert the power plug firmly so that it does not come loose.
  • Page 4 location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc. Failure to do so may cause serious damage to your monitor. Place your monitor in a location with low humidity and a minimum of dust.
  • Page 5 The monitor could be damaged or broken. Do not place the monitor face down. This may damage the TFT-LCD surface. The installation of the bracket must be done by a qualified professional. Installing the bracket by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual.
  • Page 6 This may cause damage, electric shock or fire. Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth. A dirty connector may cause electric shock or fire. Make sure to unplug the power cord before cleaning the product.
  • Page 7 Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle. This may cause a malfunction, electric shock or fire. In particular, avoid operating the monitor near water or outdoors where it could be exposed to snow or rain.
  • Page 8 Do not insert metal objects such as chopsticks, wire and gimlet or inflammable objects such as paper and match into the vent, headphone port or AV ports or etc. It may cause a fire or an electric shock. If an alien substances or water flows into the product, turn the product off, unplug the power connector from the wall outlet and contact the Service...
  • Page 9 When not using the product for an extended period of time, keep the product unplugged. Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, causing electric shock or fire. Do not place your children's favorite toys or any other objects of interest on the product.
  • Page 10 Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Monitor Manual Warranty Card User's Guide, Monitor Driver, Quick Setup Guide (Not available in all locations) Natural Color software...
  • Page 11 Cable D-Sub Cable Audio Cable Power Cord Other Remote Control Batteries (AAA X 2) Sold separately TV Antenna Cable RCA Cable (Video-Yellow, Component(P , Y) Cable (Coaxial Cable) Audio-Red and White) S-VIDEO Cable Earphones/Headphones SCART Cable DVI Cable...
  • Page 12 Front 1. SOURCE 2. PIP 5. - VOL + 6. [ 9. Remote Control Sensor 10. Speaker 1. SOURCE Press the 'SOURCE' button to change the input signal source. Changing the source is allowed only in external devices that are connected to the monitor at the time.
  • Page 13 for long periods. Rear (The configuration at the back of the monitor may vary from product to product.) 1. POWER 2. DVI/PC IN 3. EXT(RGB) Power terminal Connect the power cord for your monitor to the POWER on the back of the monitor. This product may be used with 100 ~ 240VAC(+/- 10%).
  • Page 14 4. COMPONENT IN 5. ANT IN / S-VIDEO / VIDEO / L - AUDIO - R COMPONENT IN 1. R - AUDIO - L : DVD/DTV sound input terminal (left/right) 2. P : DVD/DTV video input terminal(P ANT IN Connect the CATV cable or TV antenna cable to the "ANT IN"...

  • Page 15: Remote Control

    Connecting the monitor Remote Control The performance of the remote control may be affected by a TV or other electronic device operated near the monitor, causing malfunction due to interference with frequency. POWER Turns the monitor On/Off. for further information regarding cable connections. POWER Number button +100, -/--...
  • Page 16 2. Number button Selects TV channels in the TV mode. Used to change channels when PIP is selected and the PIP Source is set to TV. 3. +100 Press to select channels over 100. For example, to select channel 121, press "+100", then press "2" and "1". -/-- (One/Two-Digit channel selection ) Use to select a channel numbered ten or over.
  • Page 17 Press the button once to freeze the screen. Press it again to unfreeze. PIP - Available in PC/DVI Mode Push the PIP button to turn PIP screen On/Off. S.MODE ( Sound Mode ) When you press this button, current mode is displayed on the lower center of the screen. The monitor has a built-in high fidelity stereo amplifier.

  • Page 18: Connecting The Monitor

    Connecting the monitor 1.Connecting to a Computer Connect the power cord for your monitor to the POWER on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use a connection appropriate for your computer. 2-1.

  • Page 19: Connecting To A Macintosh

    2. Connecting to a Macintosh 1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the D-SUB port on the Macintosh computer. Turn on the monitor and Macintosh. Connecting to Other devices This monitor allows the user to connect it to such input devices as a DVD player, a VCR or camcorder, or a DTV or TV without disconnecting the PC.

  • Page 20: Connecting Tv

    2. Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the R-AUDIO-L port of the monitor. 3. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted. 4. Select AV or S-Video using the SOURCE. 1-2.

  • Page 21: Connecting Headphone

    3. Select TV using the SOURCE. 4. Select a desired TV channel. Is weak signal causing poor reception? Purchase and install a signal amplifier for better reception. 3. Connecting DVD/DTV Set Top Box Connect to the DVD/DTVSet Top Box input if the device has a DVD/DTV connector. You can watch Component simply by hooking up the Component with the monitor as long as the power is on.

  • Page 22: Folding The Base

    To mount the monitor on a wall, you should purchase the wall mounting kit that allows you to mount the monitor at least 10cm away from the wall surface. Contact the nearest Samsung Service Center for more information. Samsung Electronics will not be responsible for damages caused by using a base other than...

  • Page 23: Installing The Monitor Driver (Automatic)

    4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. (Microsoft This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage http://www.samsung.com/ 5. Monitor driver installation is completed.
  • Page 24 Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung.com/ http://www.samsung.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ ®...
  • Page 25 8. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo,and this installation doesn't damage your system.The certified driver will be posted on Samsung Monitor Homepage. http://www.samsung.com/ 9. Click the "Close" button then click "OK" button continually.
  • Page 26 10. Monitor driver installation is completed. ® ® Microsoft Windows 2000 Operating System When you can see "Digital Signature Not Found" on your monitor, follow these steps. 1. Choose "OK" button on the "Insert disk" window. 2. Click the "Browse" button on the "File Needed" window. 3.

  • Page 27: Natural Color

    Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This is only available for Samsung monitors and ensures that the color of the images on the monitor are the same as the printed or scanned images.
  • Page 28 Enter D:\color\NCProSetup.exe and then press the <Enter> key. (If the drive where the CD is inserted is not D:\, enter the applicable drive.) Uninstalling the Natural Color Software Program Select [Settings]/[Control Panel] from the [Start] menu and then double-click [Add/Delete a program]. Select Natural Color from the list and then click the [Add/Delete] button.
  • Page 29 Input Available Source : PC / List Description Source List Use to select PC or other external input sources connected to the Monitor. Use to select the screen of your choice. - The direct button on the remote control is 'SOURCE' button. DVI : HDCP supported Ext.
  • Page 30 - Available in PC, DVI modes. PIP: Turn the PIP Screen on or off. ON/ Off - The direct button on the remote control is 'PIP' button. Source: Select the input source for the PIP. Main Source: PC / DVI PIP Source (Sub): TV / Ext.
  • Page 31 Currently four different modes are available: Entertain, Internet,Text and Custom. Each mode has its own pre-configured brightness value. You can easily select one of four settings by simply pressing the MagicBright™ control button. - The direct button on the remote control is 'M/B' button. Entertain For watching motion pictures such as a DVD or VCD.
  • Page 32 : Adjusts the Brightness of the PIP window on the screen. Sharpness : Adjusts the Sharpness of the PIP window on the screen. Colour : Adjusts the Color of the PIP window on the screen. Source List : TV / Ext. / AV / S-Video / Component Available Source : PC / List...
  • Page 33 Size You can switch the Size. - The direct button on the remote control is 'P.SIZE' button. Auto Wide / Wide / Zoom / 4:3 Zoom is not available in 1080i(or over 720p) of DTV. Sound Available Source : PC / List Description Mode...
  • Page 34 right speakers and you can hear the sound even when the sound value is set to 0. Auto Reduces the differences in volume level among broadcasters. Volume On /Off Dolby Dolby Virtual Sound On/Off (Dolby Virtual simulates the effect of the Dolby Virtual Surround sound system, recreating the movie-theatre or concert-hall- quality sound.)
  • Page 35 Manual You can scan the frequency ranges available on your television in your area and Store store all the channels found manually. Programme: Inputting the appropriate program number on the screen. Colour System: Adjust repeatedly until the color is of the best quality. AUTO, PAL, SECAM, NT4.43 Sound System: Adjust repeatedly until the sound is of the best quality.
  • Page 36 Area When you turn the power on of the product for the first time since it released Configuration from a factory, menu to select location will appear. Choose the region and country where you use the monitor. This is because broadcasting type varies according to region and country. You can select broadcasting type in OSD menu as well by selecting MENU- Setup-Area Configuration.
  • Page 37 Self-Test Feature Check Check the following items yourself before calling for service. Contact the problems that you cannot solve by yourself. Self-Test Feature Check Not Optimum Mode Maintenance and Cleaning Symptoms & Recommended Actions 1. Self-Test Feature Check Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
  • Page 38 Finish. Do not use benzene, thinner or other flammable substances, or a wet cloth. We recommend a Samsung cleansing agent is used to prevent damage to the screen. Never use acetone, benzene or thinner. (They may cause flaws or deformation of the screen surface.) The user will be required to pay costs and related expenses for repair of damages caused by him/her.
  • Page 39 Installation Screen Audio Remote Control 1. Problems related to Installation Problems related to the monitor installation and their solutions are listed. Problems It appears the PC does not Mode function normally. The monitor screen flickers. TV screen is blurred or Mode shows noise signals.
  • Page 40 dark shadows. White color is poor. Power Indicator blinks green. Screen is blank and power indicator light is steady green or blinks every 0.5 or 1 seconds The screen is blank and is blinking. 3. Problems related to Audio Problems related to audio signals and their solutions are listed below. Problems No sound Sound level is too low.
  • Page 41 How can I set the Power Saving function? How can I clean the outer case/LCD Panel? Windows ME/XP/2000 : Set the function at BIOS-SETUP of the computer or the screen saver. (Refer to Windows/Computer Manual). Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water.
  • Page 42 General General Model Name SyncMaster 960HD LCD Panel Size 19.0 inch diagonal (48 cm) Display area 408.24 mm(H) x 255.15 mm(V) Pixel Pitch 0.2835 mm(H) x 0.2835 mm(V) Synchronization Horizontal 30 ~ 61 kHz Vertical 56 ~ 75 Hz Display Color 16.7 M Colors...

  • Page 43: Preset Timing Modes

    Signal connectors 15pin 3-row D-sub connector, 24pin 3-row DVI-D connector Dimensions (WxHxD)/ Weight 466 x 406 x 217 mm / 18.3 x 16.0 x 8.5 inch / 6.2 kg / 13.7 lbs (With Stand) 466 x 371 x 66 mm /18.3 x 14.6 x 2.6 inch (Without Stand) VESA Mounting Interface 100 mm X 100 mm (for use with Specialty(Arm) Mounting hardware.) Environmental considerations...
  • Page 44 Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC,1152 x870 68.681 IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 VESA, 640 x 480 37.500 VESA, 640 x 480 37.861...
  • Page 45 Israel Denmark Portugal Netherlands Austria Countries Singapore Indonesia Australia Broadcasting Systems SECAM-B Iran Iraq Saudi arabia Syria Countries Lebanon Egypt Horizontal Frequency The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal Cycle and the inverse number of the Horizontal Cycle is called the Horizontal Frequency.

  • Page 46: Contact Samsung Worldwide

    Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. U.S.A 1-800-SAMSUNG (7267864) CANADA 1-800-SAMSUNG (7267864) MEXICO 01-800-SAMSUNG (7267864) ARGENTINE 0800-333-3733 BRAZIL 4004-0000 CHILE 800-726-7864 (SAMSUNG) COLOMBIA 01 8000 112 112...
  • Page 47 0 801 801 881 PORTUGAL 80 8 200 128 SLOVAKIA 0850 123 989 SPAIN 902 10 11 30 SWEDEN 08 585 367 87 00870 SAMSUNG (7267864), 0818 717 100 (Republic of Ireland) RUSSIA 8-800-200-0400 UKRAINE 8-800-502-0000 AUSTRALIA 1300 362 603 CHINA...
  • Page 48 Terms Sync Signal Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal color images by the set resolution and frequency. Types of Sync Signals Separate This is a scheme of transmitting individual vertical and horizontal sync signals to...

  • Page 49: For Better Display

    Channel Fine Tuning This feature allows the viewer to fine-tune the TV channel to obtain the best viewing conditions. The Samsung LCD TV has both automatic and manual channel fine-tuning features to enable the viewer to adjust their desired settings.
  • Page 50 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 51 MÉXICO IMPORTADO POR: SAMSUNG ELECTRONICS MÉXICO. S.A. de C.V. Vía Lopez Portillo No. 6, Col. San Fco. Chilpan Tultitlán, Estado de México, C.P. 54940 Tel: 01-55-5747-5100 / 01-800-726-7864 EXPORTADO POR: Samsung Electronics CO.,LTD. 416, Mae tan-3dong, Yeongtong - gu, Suwon City, Gyeonggi-do Korea...
  • Page 52 PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 53 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.

  • Page 54: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment) - Europe Only

    Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
