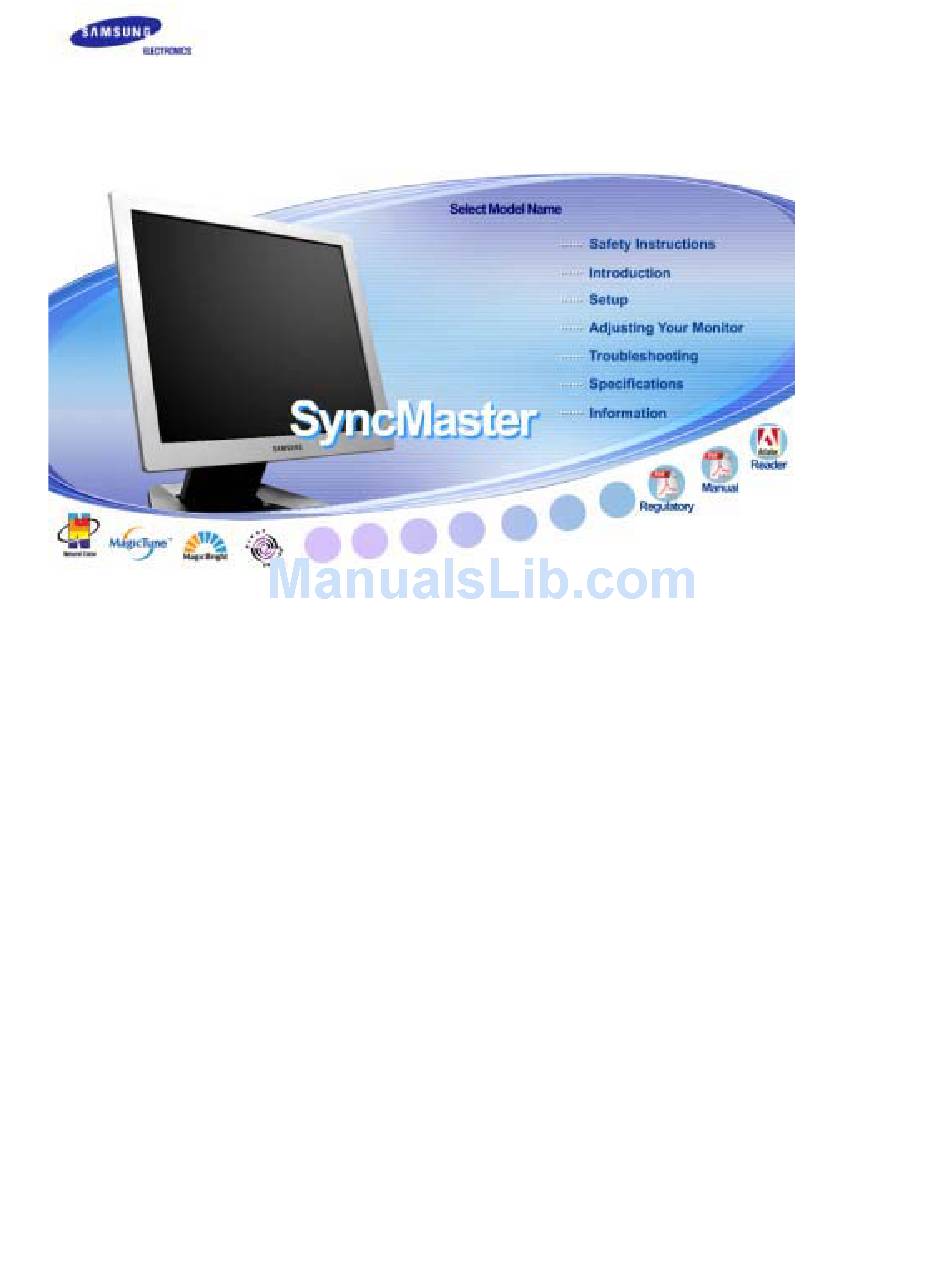

  • Page 1 SyncMaster 720B/720T/920T...
  • Page 2 Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Do not disassemble Do not touch Power When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug.
  • Page 3 Do not pull the plug out by the wire nor touch the plug with wet hands. This may cause an electric shock or fire. Use only a properly grounded plug and receptacle. An improper ground may cause electric shock or equipment damage. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage.
  • Page 4 Set down the monitor carefully. The monitor could be damaged or broken. Do not place the monitor face down. The TFT-LCD surface may be damaged. Installing a wall bracket must be done by a qualified professional. Installation by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual.
  • Page 5 Contact the Service Center or Customer Center for interior cleaning once a year. Keep the product's interior clean. Dust which has accumulated in the interior over an extended period of time may cause malfunction or fire. Others Do not remove cover (or back). This may cause an electric shock or fire.
  • Page 6 Do not move the monitor right or left by pulling only the wire or the signal cable. This may cause a breakdown, electric shock or fire due to damage to the cable. Do not cover the vents on the monitor cabinet. Bad ventilation may cause a breakdown or fire.
  • Page 7 Adjust the resolution and frequency to the levels appropriate for the model. Inappropriate resolution may cause undesirable picture quality. 15 inch - 1024 X 768 17,19 inch - 1280 X 1024 Be careful that adapter should not be in contact with water and therefore not be wet.
  • Page 8 To ease eye strain, take at least a five-minute break after every hour of using the monitor . Do not use the monitor where it may be exposed to strong vibrations. Exposure to strong vibrations may cause fire and hazard and shorten the life of the monitor.
  • Page 9 SyncMaster 720B Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Unpacking Monitor Manual User's Guide, Warranty Card Monitor Driver, Quick Setup Guide (Not available in all Natural Color software, locations) MagicTune™...
  • Page 10 For Multimedia model (Option) Multimedia model Front Menu button [ ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. MagicBright is a new feature providing optimum viewing MagicBright button environment depending on the contents of the image you are watching.
  • Page 11 2) Text : Normal Brightness 3) Internet : Medium Brightness 4) Game 5) Sport 6) Movie : High Brightness >>Click here to see an animation clip Brightness button [ ] When OSD is not on the screen, Push the button to adjust brightness.
  • Page 12 How to disconnect a cable DC Power Connection Terminal (DC 14V) Audio Connection Terminal (Multimedia Model / Option) Connecting the Monitor for further information regarding cable connections. This product may be used with 90 ~ 264VAC. (Voltage is automatically adjusted by the power adapter.) Audio Connection Terminal...
  • Page 13 SyncMaster 720T/920T Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Unpacking Monitor Manual User's Guide, Warranty Card Monitor Driver, Quick Setup Guide (Not available in all Natural Color software, locations) MagicTune™...
  • Page 14 For Multimedia model (Option) Multimedia model Front Menu button [ ] Opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. MagicBright is a new feature providing optimum viewing MagicBright button environment depending on the contents of the image you are watching.
  • Page 15 2) Text : Normal Brightness For documentations or works involving heavy text. 3) Internet : Medium Brightness For working with a mixture of images such as text and graphics. 4) Game For watching motion pictures such as a Game. 5) Sport For watching motion pictures such as a Sport.
  • Page 16 (The configuration at the back of the monitor may vary from product to product.) PC Connection Terminal How to disconnect cables DC Power Connection Terminal (DC 14V) Audio Connection Terminal (Multimedia Model / Option) Connecting the Monitor for further information regarding cable connections. Computer Connection Terminal (15 Pin D-SUB) Computer Connection Terminal (DVI) This product may be used with 90 ~ 264VAC.
  • Page 17 SyncMaster 720B Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
  • Page 18 45 degrees and then Pivot it. Failure to do so may damage the monitor. Installing a VESA base Sold separately 1. Bracket (Set-Mount) 3. Anchors (3EA) (Contact a local Samsung Electronics 1. VESA Mounting Bracket Pivot Pro Installation 2. Bracket (Wall-Mount) 4. Screws (3EA) 5. Screws (4EA)
  • Page 19 2. Attaching a base...
  • Page 20 Fold the monitor stand. Turn it so that the side to which the cable is connected faces down. Attach the VESA Mounting Bracket to the bottom side of the stand. Align the holes of the bracket with those in the VESA stand, and fasten it tightly in place with four screws.
  • Page 21 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung-monitor.com/ http://www.samsungusa.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ (Worldwide) (USA)
  • Page 22 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung...
  • Page 23 Monitor homepage. http://www.samsung-monitor.com/. 5. Monitor driver installation is completed. Windows XP When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.
  • Page 24 5. Click " Update Driver.. " and select " Install from a list or.. " then click " Next " button. 6. Select " Don't search ,I will.. " then click " Next " and then click " Have disk ". 7.
  • Page 25 This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung-monitor.com/. 9. Click the " Close " button, then click " OK " button continually.
  • Page 26 If you can see the " Digital Signature Not Found " window then click the " Yes "button. And click the " Finish " button then the " Close " button. ® ® Microsoft Windows Millennium Operating System 1. Click " Start " , " Setting " , " Control Panel ". 2.
  • Page 27 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 28 SyncMaster 720T/920T Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2-1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
  • Page 29 45 degrees and then Pivot it. Failure to do so may damage the monitor. Installing a VESA base Sold separately 1. Bracket (Set-Mount) 3. Anchors (3EA) (Contact a local Samsung Electronics 1. VESA Mounting Bracket Pivot Pro Installation 2. Bracket (Wall-Mount) 4. Screws (3EA) 5. Screws (4EA)
  • Page 30 2. Attaching a base...
  • Page 31 Fold the monitor stand. Turn it so that the side to which the cable is connected faces down. Attach the VESA Mounting Bracket to the bottom side of the stand. Align the holes of the bracket with those in the VESA stand, and fasten it tightly in place with four screws.
  • Page 32 Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown here. Internet web site : http://www.samsung-monitor.com/ http://www.samsungusa.com/monitor http://www.sec.co.kr/monitor http://www.samsungmonitor.com.cn/ (Worldwide) (USA)
  • Page 33 4. If you can see following message window, then click the "Continue Anyway" button. Then click "OK" button. This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung...
  • Page 34 Monitor homepage. http://www.samsung-monitor.com/. 5. Monitor driver installation is completed. Windows XP When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have.
  • Page 35 5. Click " Update Driver.. " and select " Install from a list or.. " then click " Next " button. 6. Select " Don't search ,I will.. " then click " Next " and then click " Have disk ". 7.
  • Page 36 This monitor driver is under certified MS logo and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage. http://www.samsung-monitor.com/. 9. Click the " Close " button, then click " OK " button continually.
  • Page 37 If you can see the " Digital Signature Not Found " window then click the " Yes "button. And click the " Finish " button then the " Close " button. ® ® Microsoft Windows Millennium Operating System 1. Click " Start " , " Setting " , " Control Panel ". 2.
  • Page 38 Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This system is available only for Samsung monitors and makes the color of the images on the monitor the same as the printed or scanned images.
  • Page 39 SyncMaster 720B 1. Use this button to open the on-screen menu and exit from the menu screen or close screen adjustment menu. 2. This buttons allows you to adjust items in the menu. 3. This buttons allows you to adjust items in the menu. 4.
  • Page 40 AUTO Menu When the ' AUTO ' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. AUTO To make the automatic adjustment function sharper, execute the 'AUTO' function while the...
  • Page 41 MagicBright™ Menu Then push the MagicBright button again to circle through available MagicBright™ preconfigured modes. - Six different modes (Custom/Text/Internet/Game/Sport/Movie) Brightness Menu Brightness When OSD is not on the screen, push the button to adjust brightness. Description Description...
  • Page 42 Brightness Contrast Picture (TCO'03) MagicColor Color Tone Color MagicColor Color Tone Color Coarse Fine Image Language H-Position Image Reset Color Reset Setup Information Picture Menu You can use the on-screen menus to change the brightness according to personal preference. Brightness Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness.
  • Page 43 Color (TCO'03 applied model only) Menu Description Play/Stop MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality. OFF - Returns to the original mode.
  • Page 44 Color Menu Description Play/Stop MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality. OFF - Returns to the original mode. MagicColor DEMO - The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
  • Page 45 Image Menu Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may Coarse relocate it to the center using the Horizontal Control menu. Removes noise such as horizontal stripes. If the noise Fine persists even after Fine tuning, repeat it after adjusting the frequency (clock speed).
  • Page 46 Menu You can choose one of the seven languages. (English, Deutsch, Espaёol, Franчais, Italiano, Svenska, русский) Note :The language chosen affects only the language of Language the OSD. It has no effect on any software running on the computer. You can change the horizontal position where the OSD H-Position menu appears on your monitor.
  • Page 47 Setup Menu Image parameters are replaced with the factory default Image Reset values. Color parameters are replaced with the factory default Color Reset values. Information Menu Shows a video source, display mode on the OSD screen. Information Description Description Play/Stop...
  • Page 48 SyncMaster 720T/920T 1. Use this button to open the on-screen menu and exit from the menu screen or close screen adjustment menu. 2. This buttons allows you to adjust items in the menu. 3. This buttons allows you to adjust items in the menu. 4.
  • Page 49 Menu When the ' AUTO ' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming video signal. The values of fine, coarse and position are adjusted automatically. (Available in analog Mode Only) AUTO To make the automatic adjustment function sharper, execute the 'AUTO'...
  • Page 50 MagicBright™ Menu Then push the MagicBright button again to circle through available preconfigured modes. MagicBright™ - Six different modes (Custom/Text/Internet/Game/Sport/Movie) Brightness Menu When OSD is not on the screen, push the button to adjust brightness. Brightness Description Description...
  • Page 51 Source Menu Selects the Video signal while the OSD is off. Source Brightness Contrast Picture (TCO'03) Color MagicColor Color Tone MagicColor Color Tone Color Coarse Fine Image Language H-Position Auto Source Image Reset Setup Information Description Color Control Gamma sRGB Color Control Gamma Sharpness...
  • Page 52 Picture Menu Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. Brightness Direct Access Feature : When OSD is not on the screen, push the button to adjust brightness. You can use the on-screen menus to change the contrast Contrast according to personal preference.
  • Page 53 Menu MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality. OFF - Returns to the original mode. MagicColor DEMO - The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left.
  • Page 54 The tone of the color can be changed. Color Tone When you adjust the Brightness and Contrast after sRGB sRGB mode is selected, sRGB mode exits. Adjusts individual R,G,B color balance. Color Control Adjusts the gamma value. Gamma Image Menu Removes noise such as vertical stripes.
  • Page 55 Menu You can choose one of the seven languages. Language Note :The language chosen affects only the language of the OSD. It has no effect on any software running on the computer. You can change the horizontal position where the OSD H-Position menu appears on your monitor.
  • Page 56 Setup Menu Select Auto Source for the monitor to automatically select Auto Source the signal source. Image parameters are replaced with the factory default Image Reset values. Color parameters are replaced with the factory default Color Reset values. Information Menu Shows a video source, display mode on the OSD screen.

  • Page 57: What Is Magictune

    Overview Installation OSD Mode Overview What is MagicTune™? Monitor performance can vary due to the graphics card, host computer lighting conditions and other environmental factors. In order to get the best image on a monitor requires you to adjust it for your unique setting.

  • Page 58: Installation

    Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Installation 1. Insert the installation CD into the CD-ROM drive. 2. Click the MagicTune™ installation file. 3. Select installation Language, Click "Next". 4. When the InstallationShield Wizard window appears, click "Next." 5. Select "I agree to the terms of the license agreement" to accept the terms of use.
  • Page 59 6. Choose a folder to install the MagicTune program. 7. Click "Install." 8. The "Installationation Status" window appears.
  • Page 60 9. Click "Finish." 10. When the installation is complete, the MagicTune 2.5 executable icon appears on your desktop. Double-click the icon to start the program. Magictune execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key. 11.

  • Page 61: System Requirements

    12. The following error message indicates that the system is using a video card that is not supported by MagicTune. Installationation Problems The installation of MagicTune™ 2.5 can be affected by such factors as the video card, motherboard and the network environment.

  • Page 62: Osd Mode

    Overview Installation OSD Mode MagicTune allows for quick accurate tuning of the display with the ability to easily save and use monitor configurations that are best suited for you. OSD mode may appear inconsistent with the explanation in guidance book depending on specification of each monitor. When Pivot is functioning, part of Magictune Program may not operate normally.

  • Page 63: Color Tab Definition

    Allows the user to adjust the screen settings to the desired values. Brightness Contrast Resolution Makes the entire screen brighter or darker. The detailed data of the images in the dark Brightness areas can be lost if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing conditions.

  • Page 64: Image Tab Definition

    - including web images and ones produced by a digital camera or scanner. MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality.

  • Page 65: Option Tab Definition

    Image Setup Position Sharpness Fine : Removes noise such as horizontal stripes. If the noise persists even after Fine tuning, repeat it after adjusting the frequency (clock speed). Image Setup Coarse : Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You may relocate it to the center using the Horizontal Control menu.

  • Page 66: Support Tab Definition

    Loads the Preferences Dialog Box. Preferences in use will have an "V" in the check box. To turn on or off any Preference, position the cursor over the box and click. Preferences Enable task tray menu . - To access the MagicTune menus, click the icon on the [task tray menu]. The menus are not displayed if the [Enable System Tray] is deselected in [Options] ' [Basic Settings].

  • Page 67: Color Calibration

    Overview Installation OSD Mode Color Calibration 1. Color Calibration Color Calibration guides you to get optimal color condition for your monitor. Proceed following 5steps for getting optimal monitor color condition . 1. Control "Brightness control bar" for matching the brightness of control patch and the brightness of background pattern 2.
  • Page 68 Press "Preview" button on the Color Calibration. The above picture will be shown. 1. Press "View Calibrated" button to see the calibration effect which you adjusted. 2. Press "View Uncalibrated" button to see the original image.
  • Page 69 Overview Installation OSD Mode Uninstall The MagicTune program can be removed only by using the "Add or Remove Programs" option of the Windows Control Panel. Perform the following steps remove MagicTune. 1. Go to [Task Tray] ' [Start] ' [Settings] and select [Control Panel] in the menu. If the program runs on Windows XP, go to [Control Panel] in the [Start] menu.

  • Page 70: Troubleshooting

    Color Overview Installation OSD Mode Uninstall Troubleshooting Calibration Troubleshooting MagicTune may not work in case monitor is replaced or driver of graphic card is updated while MagicTune is operating. If so, please restart the system. website Visit the MagicTune for technical support for MagicTune, FAQs (questions and answers) and software upgrades.
  • Page 71 SyncMaster 720B Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom No images on the Is the power cord connected screen.
  • Page 72 There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals? I cannot see the On Have you locked the On Screen Screen Display. Display (OSD) Menu to prevent changes? The screen shows Is the screen displaying only one strange colors or just color as if looking at the screen...
  • Page 73 Check the following items if there is trouble with the monitor. 1. Check if the power cord and the video cables are properly connected to the computer. 2. Check if the computer beeps more than 3 times when booting. (If it does, request an after-service for the main board of the computer.) 3.
  • Page 74 This box appears during normal operation if the video cable becomes disconnected or damaged. 4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system;...
  • Page 75 SyncMaster 720T/920T Before calling for service, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call Information section or contact your Symptom No images on the Is the power cord connected screen.
  • Page 76 There is no image on the screen. Is the power indicator on the monitor blinking at 1 second intervals? Is the monitor connected using the DVI cable? I cannot see the On Have you locked the On Screen Screen Display. Display (OSD) Menu to prevent changes? The screen shows...
  • Page 77 The screen colors have changed after Has the video card been set changing the video properly? card. There is a message Have you installed the monitor that reads driver? "Unrecognized See the video card manual to see if monitor, Plug & Play the Plug &...
  • Page 78 case/LCD Panel? cloth, using either a cleaning solution or plain water. Do not leave any remains of the detergent nor scratch the case. Do not allow any water to go inside the monitor. Self-Test Feature Check Self-Test Feature Check Warning Messages Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly.
  • Page 79 Useful Tips A monitor recreates visual signals received from the computer. Therefore, if there is trouble with the computer or the video card, this can cause the monitor to become blank, have poor coloring, noise, unavailable video mode, etc. In this case, first check the source of the problem, and then contact a service center or your dealer.
  • Page 80 SyncMaster 720B General General Model Name SyncMaster 720B LCD Panel Size 17.0 inch diagonal Display area 337.92(H) x 270.336(V) Pixel Pitch 0.264(H) x 0.264(V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,194,277 Colors Resolution...
  • Page 81 Power saving mode Power Switch off EPA/ENERGY 2000 (120Vac) Green Blinking Black Less than 1W Less than 2W (off (115Vac) mode) Less than 2W (115Vac/230Vac) (230Vac) ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency.
  • Page 82 Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) MAC, 640 x 480 35.000 MAC, 832 x 624 49.726 MAC, 1152 x 870 68.681 IBM, 640 x 350 31.469 IBM, 640 x 480 31.469 IBM, 720 x 400 31.469 VESA, 640 x 480 37.500 VESA, 640 x 480...
  • Page 83 SyncMaster 720T General General Model Name SyncMaster 720T LCD Panel Size 17.0 inch diagonal Display area 337.92(H) x 270.336(V) Pixel Pitch 0.264(H) x 0.264(V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,194,277 Colors Resolution...
  • Page 84 Power saving mode Power Switch off EPA/ENERGY 2000 (120Vac) Green Blinking Black Less than 1W Less than 2W (off (115Vac) mode) Less than 2W (115Vac/230Vac) (230Vac) ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency.
  • Page 85 screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) MAC, 640 x 480...
  • Page 86 SyncMaster 920T General General Model Name SyncMaster 920T LCD Panel Size 19.0 inch diagonal Display area 376.32(H) x 301.056(V) Pixel Pitch 0.294(H) x 0.294(V) Type a-si TFT active matrix Synchronization Horizontal 30 ~ 81 kHz Vertical 56 ~ 75 Hz Display Color 16,777,216 Colors Resolution...
  • Page 87 Power saving mode Power Switch off EPA/ENERGY 2000 (120Vac) Green Blinking Black Less than 1W Less than 2W (off (115Vac) mode) Less than 2W (115Vac/230Vac) (230Vac) ® compliant and ENERGY2000 ® Partner, SAMSUNG has determined that this ® guidelines for energy efficiency.
  • Page 88 screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Table 1. Preset Timing Modes Horizontal Display Mode Frequency (kHz) MAC, 640 x 480...
  • Page 89 Service AUSTRALIA : Samsung Electronics Australia Pty Ltd. Customer Response Centre 7 Parkview Drive, Homebush Bay NSW 2127 Tel : 1300 362 603 http://www.samsung.com.au/ BRAZIL : Samsung Eletronica da Amazonia Ltda. R. Prof. Manoelito de Ornellas, 303, Terro B Chacara Sto. Antonio, CEP : 04719-040...
  • Page 90 Gustavo A.Madero C.P.07700, Mexico D.F. Mexico TEL. 52-55-5747-5100 Fax. 52-55-47 52 02 RFC: SEM950215S98 http://www.samsung.com.mx/ IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO. S.A. DE C.V. Saturno NO.44, Col. Nueva Industrial Vallejo Gustavo A.Madero C.P.07700, Mexico D.F. Mexico TEL. 52-55-5747-5100 EXPORTADO POR: Samsung Electronics CO.,LTD.
  • Page 91 Tel. 214 148 114/100 Fax. 214 148 133/128 Free Line 800 220 120 http://www.samsung.pt/ SOUTH AFRICA : Samsung Electronics,5 Libertas Road, Somerset Office Park, Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa Tel : 0027-11-549-1621 Fax : 0027-11-549-1629 http://www.samsung.co.za/...
  • Page 92 Stafford Park 12 Telford, Shropshire, TF3 3BJ Tel. : (0870) 242 0303 Fax. : (01952) 292 033 http://samsungservice.co.uk/ U.S.A. : Samsung Electronics America Service Division 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) http://samsungusa.com/monitor/ Terms Dot Pitch The image on a monitor is composed of red, green and blue dots.
  • Page 93 Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly forbidden. Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 94 Federal Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC 20402, Stock Number 004-000-00345-4. The party responsible for product compliance: SAMSUNG ELECTRONICS CO., LTD America QA Lab of Samsung 3351 Michelson Drive, Suite #290, Irvine, CA92612 USA Tel) 949-975-7310...
  • Page 95 MPR II Compliance This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields. European Notice(Europe Only) Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
  • Page 96 climate-influencing emissions, radioactive waste, etc.) it is vital to conserve energy. Electronic equipment in offices consumes an enormous amount of energy, since it is often routinely left running continuously. What does labelling involve? This product meets the requirements for the TCO'95 scheme, which provides for international environmental labelling of monitors.
  • Page 97 CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).
  • Page 98 Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs.
  • Page 99 For recycling information for TCO'03 certified monitors, for the residents in the following countries, please contact the company corresponding to your region of residence. For those who reside in other countries, please contact a nearest local Samsung dealer for recycling information for the products to be treated in environmentally acceptable way.
  • Page 100 Mercury Statement (LCD Monitor, LCD TV, DLP Projection TV, Projector for USA only) LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS For details see lamprecycle.org, eiae.org, or call 1-800-Samsung...

  • Page 101: Product Information (Image Retention Free)

    PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate correct usage of LCD products in order to protect them from Image retention.
  • Page 102 The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns.
