Sunbeam Series 6 Instruction Manual

I S
mportant afeguardS
When using electrical appliances, basic safety precautions should always be
followed including the following:
Read All Instructions Before Use
• Use iron only for its intended use.
• To protect against risk of electric shock, do not immerse the iron in water or other liquids.
• T he Fabric Select Setting and Steam Lever should always be turned to OFF before plugging or unplugging
from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
• D o not allow cord to touch hot surfaces. Let iron cool completely before storing. Loop cord loosely around
iron when storing.
• A lways disconnect iron from electrical outlet when filling with water, cleaning, emptying or when not in use.
• D o not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of
electric shock, do not disassemble the iron. Take it to an authorized service center for examination and/or
repair. Incorrect reassembly can cause a risk of electric shock when iron is used.
• C lose supervision is necessary for any appliance being used by or near children. Do not leave iron
unattended while plugged in, turned on or on an ironing board.
• B urns can occur from contact with hot metal parts, hot water or steam. Use caution when you turn a steam
iron upside down – there may be hot water in the reservoir.
• I f the iron is not operating normally, disconnect from the power supply and have the iron serviced by an
authorized service center or call Customer Service at 1 (800) 458-8407.
• Y our SUNBEAM iron is designed to rest on the heel rest. Do not leave the iron unattended.
®
Do not set the iron on an unprotected surface, even if it is on the heel rest.
• T his is a high wattage appliance. To avoid a circuit overload, do not operate another high wattage
appliance on the same circuit.
• I f an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated
for less amperage may overheat. Care should be taken to arrange the extension cord so that
it cannot be pulled or tripped over.
F P P u s c
or roducts urchased in the nited tates and anada
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider
than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully
into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.
SAVE THESE INSTRUCTIONS
m y I
(continued)
aIntaInIng our ron
4. Plug in iron, set Fabric Select Setting to Linen and heat for 2 minutes.
5. Unplug iron. Holding iron over a sink in a horizontal position, press Self-Clean Button and hold. Water will begin
dripping from the steam vents. Slowly rock iron side to side and front to back for 30 seconds. Dip nose of the iron
slightly below the rear to circulate water. Release Self-Clean Button after one minute.
6. O pen fill cap and empty remaining water. Carefully dry soleplate with a towel.
7. P lug in iron and set Fabric selection to Linen and Heat for 2 minutes to dry out completely. Set Fabric Select
Setting to Off, unplug the iron, and allow to cool.
CLEANING SOLEPLATE: Clean soleplate after every 30 uses, or more frequently if starch is used or build-up starts
to accumulate. Before cleaning, ensure iron is unplugged and cool.
WARNING: Do not immerse in liquids or use abrasive cleansers or scouring pads to clean the soleplate. This will
damage the finish.
Type of Debris/Build-Up Cleaning Recommendation
Light Dirt Use a cotton cloth or terrycloth towel to wipe the soleplate with warm soapy water.
Hard Water Deposits Use a cotton cloth or terrycloth towel to wipe the soleplate with a 50/50 vinegar/water
mixture.
Heavy Starch or Residue Use Hot Iron Cleaner or Mr.Clean Magic Eraser cleaning pad. Refer to the
® ®
Build-up manufacturer's directions included with these products for specific cleaner usage
instructions.
Mr. Clean and Magic Eraser are registered trademarks owned by the Procter &
® ®
Gamble company.
a -c S (select models only)
ntI alcIum yStem
Anti-calcium is a permanent system located inside the water reservoir to eliminate impurities. Ensure your iron has
this feature before performing these steps.
t p e , f t S o m After Every 30 Uses:
o rolong ffIcIency olloW heSe tepS nce a onth or
1. T urn off iron.
2. A dd 1 teaspoon of salt to ¾ cup water and fill water reservoir with this solution.
3. L eave solution in water reservoir for 15 minutes, shake occasionally, and then empty through the fill hole or
through the "clean method".
4. F ill water reservoir again with salt water solution, shake and empty after 15 minutes.
5. Fill water reservoir with fresh water to rinse and empty.
I t
ronIng IpS
• Before ironing, check the garment label and follow manufacturer's instructions. If no instructions, start with a low-heat
setting and test by ironing a small area, and gradually increase heat.
• Sort garments by fabric type. Iron articles requiring a low-temperature setting and gradually work up the temperature range.
• When changing from a high-temperature setting to a lower one, allow 5 minutes for change.
• When steam ironing, use long, slow passes over the fabric to allow the steam to penetrate the fabric and the heat of
the soleplate to dry the moisture.
• Iron linen garments inside out to prevent shine. An ironing cloth or cotton fabric can be used to reduce shine.
• If the garment is lined, use a low heat setting.
• Ensure zippers are closed and flap is flat. Iron over the flap, holding the garment taut.
• Spray starch makes the job easier.
IRONING SHIRTS
• Begin with the collar and work toward the middle from the outer edges. Iron lengthwise, not in circles.
• Lay shoulder over narrow edge of the board and iron one side of the front. Then iron the shoulder, across the back
(below the collar line), the other shoulder and the remainder of the front.
• Iron sleeves and cuffs, working down from the underarm seams. To remove creases, shift the double layer of sleeve
fabric and iron out.
• Iron body of garment, from half of the front around the back, then second half of front. If your shirt does not open, slip
over end of ironing board and iron front and back in turn.
Sunbeam Iron Series 6_13ESM1.indd 1
f
eatureS
1. SPRAY MIST Nozzle
®
6 13 2. Water Fill Hole
5
3. Steam Lever
4
4. SHOT OF STEAM and SPRAY MIST
® ®
5. Reset Button and Power Light
3
6. Handle
2
7. Fabric Select Setting
1 8. S elf Clean Button
9. S ee-Through Water Reservoir/ Maximum Fill Line
10. Soleplate
12
11. Storage Strip Indicator (select models only)
®
7
12. Cord Wrap (undernelth)
10
8
11
9
13. Power Cord
NOTE: The model shown in the manual is for reference only. Your model may differ slightly.
f W r
(use tap water)
IllIng ater eServoIr
1. T urn Steam Lever to (Dry) and Fabric Select Setting to Off. Unplug.
2. R aise the Water Fill Hole Cover. Hold the iron at a 45 degree angle and use any easy-pour measuring cup to fill
the water reservoir with tap water through the water fill hole. Do not fill water reservoir beyond maximum fill line.
WARNING: To prevent the risk of burns, be careful when filling a hot iron with water. Hot metal parts, hot water and
steam can cause injuries.
d I
ry ronIng
1. Ensure Steam Lever is turned to the (Dry) setting.
2. Plug the cord into a 120-Volt AC outlet.
3. T urn Fabric Select Setting to desired setting. Allow iron to heat for 2 minutes on its heel rest on a stable, protected
surface.
NOTE: While Steam Lever is turned to the (Dry) setting, you may still use the SHOT OF STEAM or SPRAY
®
MIST features, as long as the Fabric Select Setting is set to wool, cotton, or linen. Water reservoir must be at least
®
¼ full of water.
S I
team ronIng
1. Fill Water Reservoir and plug the cord into a 120-Volt AC outlet.
2. T urn the Fabric Select Setting to desired setting. Allow the iron to heat for 2 minutes on its heel rest on a stable,
protected surface. Turn Steam Lever to desired setting.
IMPORTANT: When not ironing, always set the Steam Lever to (Dry) and the Fabric Select Setting to OFF.
S f
pecIal eatureS
S m f
®
pray ISt eature is a powerful water spray mist that dampens the fabric to aid in removing
wrinkles from heavy fabrics and for setting creases.
TO USE: Press the Spray Mist button firmly.
®
S S f
hot of team ® eature
provides an extra burst of steam for deep penetration of stubborn
wrinkles. You can use this feature while Dry or Steam ironing as long as the Fabric Select Setting is set to wool,
cotton, or linen. The water reservoir must be at least ¼ full of water.
TO USE: Place the iron on top of the wrinkle and press the Shot of Steam button each time you would like an extra
®
burst of steam. The Shot of Steam feature may be used continuously in approximately 3-second intervals.
®
NOTE: Shot of Steam pump may require priming for initial use. To prime simply push the button firmly 10-15 times
repetitively.
I t
(continued)
ronIng IpS
IRONING PANTS
• Begin with the waistband and inseam area, then pockets and cuffs.
• Pull waistband on pointy end of the board, as if you're "dressing" the ironing board. Iron upper-front part of the pants,
including the waistband.
• Place pants parallel to ironing board lengthwise so both legs are facing the same direction. Iron each leg by moving the
iron back and forth along the pant leg.
• Take cuff of the leg and bring it over towards the waistband to iron the inner part of the leg. Repeat these 2 steps for
the second leg.
Trouble Shooting
PROBLEM CAUSE/SOLUTION
Power indicator is blinking • The light blinks to indicate that the iron auto-off function has been
activated
• Press it to restart
• To stop blinking and reset, move the iron back and forth and allow
to re-heat for 2 minutes
Iron is not heating • Ensure the iron is on and power light is illuminated
• Verify unit is plugged in
• Adjust Fabric Select Setting to the correct setting for your
garments
Iron will not steam • Ensure water tank level is at least ¼ full
• Ensure steam lever is switched on
• Press Shot of Steam button several times to prime
®
Iron is leaking • Only fill with water to the MAX level
• Allow to heat for at least 2 minutes before use
• Shot of Steam has been pressed too frequently. Only use shot of
®
steam in 3 second intervals or less
®
• Shot of Steam feature used with incorrect fabric setting. Only use with
®
Wool, Cotton or Linen settings
• Empty water tank after each use and turn steam lever off
Iron leaves spots/flakes on clothing • Empty water tank completely after each use
• Clean soleplate when cool with a wet, damp cloth
• Use self-cleaning feature once a month
• Refer to the Anti-Calcium System section (select models only)
• Ensure water cup used to fill the iron is clean
Wrinkles are not sufficiently removed • Check that the temperature select is set to the correct fabric setting
• Use Shot of Steam or Spray Mist features to help remove
®
stubborn wrinkles
Fabrics are getting an unwanted "shine" • Use an ironing cloth or a 100% white cotton fabric and place it
between the garment being ironed and the iron to prevent "shine"
S f (continued)
pecIal eatureS
®
v S S f
ertIcal hot of team eature allows iron to function vertically as a garment
steamer.
TIP: When using vertical steam, hang clothing on a hanger for best results. Hanging curtains and drapes may also
Buttons be steamed.
TO USE:
1. H old iron vertically near, but not touching the fabric you want to steam. Pull the fabric tight.
2. P ress Shot of Steam button in 3-second intervals as you move iron over wrinkles.
®
WARNING: To prevent burns, keep hands away from the area being steamed.
WARNING: DO NOT steam garments while wearing them; this may result in injuries.
t a -o f
Imed uto ff eature
IF YOU LEAVE IRON ON: Timed auto-off will automatically turn unit off after 30 minutes. 3-way auto-off (15 min in
heeled position)
IMPORTANT: Once timed auto-off activates, power light blinks to indicate it is in auto-off mode.
TO RESET: Press reset button. if available, otherwise unplug and plug and back in.
WARNING: Auto-Off is a safety feature and is not a recommended means for turning iron off.
(select models only)
S S I
torage trIp ndIcator
®
Indicates when the iron is cool enough to store.
Red = Iron is too hot to store.
Black = Iron is cool enough to store.
CAUTION: STORAGE STRIP indicator should only be used as a guideline. Iron should always be handled and
®
stored with care.
c y I a
arIng for our ron
TURNING OFF IRON: Turn Steam Lever to (Dry) and Fabric Select Dial to Off. Unplug.
WARNING: NEVER yank power cord when unplugging iron. This can damage the cord.
Empty water tank completely after each use.
S y I
torIng our ron
1. Turn off iron and allow to cool.
2. E mpty water reservoir after each use for a longer iron life.
3. L oosely loop the power cord around the Cord Wrap and Handle and store the iron on its heel rest. IMPORTANT:
Wrapping the cord around the iron too tightly can damage the cord.
m y
aIntaInIng our
u S -c f : Use the Self-Clean feature once a month to maintain optimal iron performance.
SIng elf lean eature
1. Turn off iron.
2. M ove Steam Lever back and forth to remove debris and minerals from Steam Valve. This keeps water flowing into
the steam chamber.
3. Fill water reservoir with tap water to MAX line.
3 Year Limited Warranty and Lifetime Limited Soleplate Warranty
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation
(Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of
three years from the date of initial retail purchase, this product will be free from defects in material and workmanship.
JCS warrants the iron's soleplate will be free from defects in material and workmanship for the life of the iron from
the date of initial retail purchase.
JCS, at its option, will repair or replace this product or any component of the product found to be defective during the
warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no
longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive
warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will
void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, commercial use, accident, use on improper voltage or current, use contrary to the operating
instructions, disassembly, repair or alteration by anyone other than JCS or an authorized JCS service center.
Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes. Soleplate warranty
does not cover scratches or discoloration of the soleplate finish and only applies as long as the iron generates
optimal heat.
What are the limits on JCS's Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a
particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use
the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call
1- 800- 458-8407 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service, please call
1-800-667-8623 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions
located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada)
Limited doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y
0M1. If you have any other problem or claim in connection with this product, please write our Consumer Service
Department. PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE
OF PURCHASE.
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES
OR TO THE PLACE OF PURCHASE.
STOP
For product questions visit us online at www.sunbeam.com or call 800-458-8407.
u
fter Se
I
ron

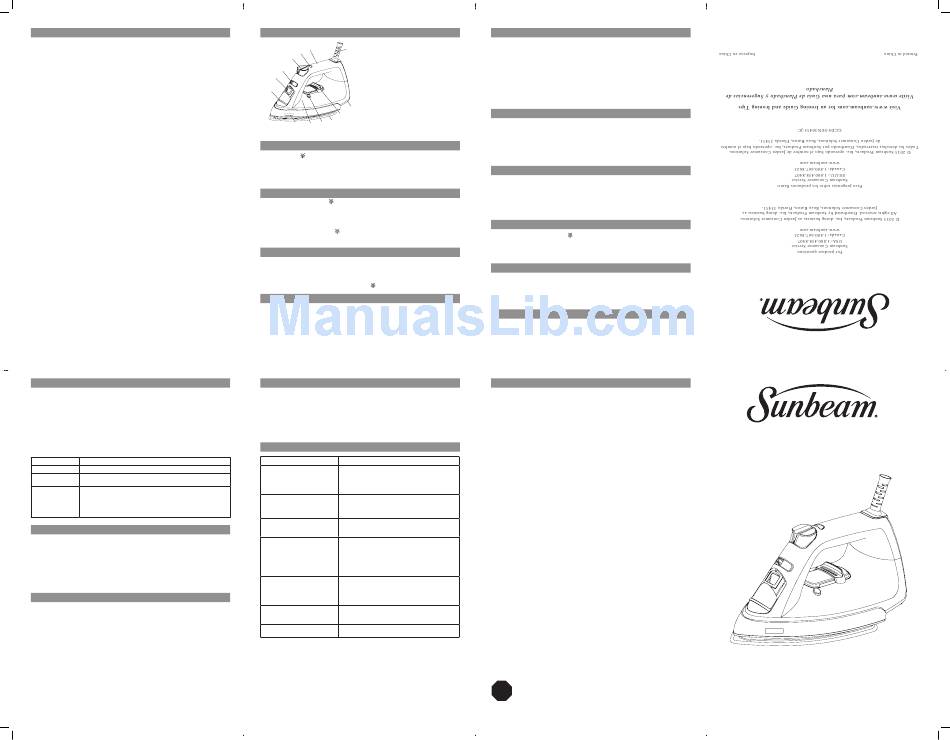

Instruction Manual
Manual de Instrucciones
www.sunbeam.com
Sunbeam Iron
®
Plancha Sunbeam
®
Series 6
Serie 6
P.N. 161819
10/22/13 9:37 AM
