Installation Instructions
®
VLT
Control Panel LCP 21 - RJ45 Converter Kit
Items Supplied
•
Male LCP 21-RJ45 converter plug (1).
•
Female LCP 21-RJ45 converter plug (1).
•
Thread cutting screws (4).
More Items Required
•

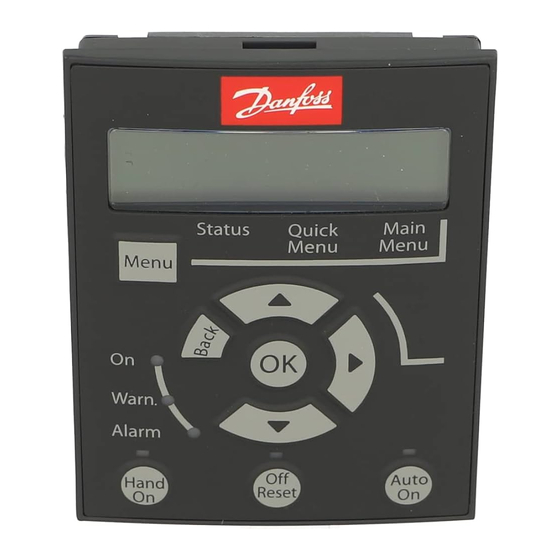

Local control panel (LCP 21), ordering number
132B0254.
Installation
1.
Mount the male LCP 21-RJ45 converter plug on the
frequency converter and fasten with 2 thread cutting
screws, see Illustration 1.1.
2.
Tighten the screws to 1.3 Nm (11.5 in-lb).
Illustration 1.1 Mounting the Male LCP 21-RJ45 Converter Plug
3.
4.
Illustration 1.2 Mounting the Female LCP 21-RJ45 Converter Plug
5.
Danfoss A/S © 08/2017 All rights reserved.
Mount the female LCP 21-RJ45 converter plug on the
LCP 21 (local control panel), and fasten with 2 thread
cutting screws, see Illustration 1.2.
Tighten the screws to 1.3 Nm (11.5 in-lb).
Connect the 2 LCP 21-RJ45 converter plugs with a
shielded Ethernet cable, maximum 15 m (49.2 ft)
long.
MI07M102
