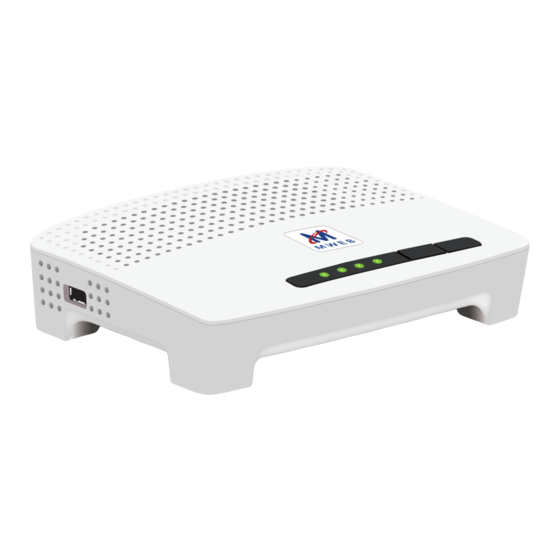

QUICK START GUIDE: TG588v
ABOUT PASSWORDS
Please take a moment to consider the passwords needed to
secure your gateway, wireless network and internet connection
from unauthorised access.
Broadband Service:
Sometimes referred to as the PPP
username and password. If your service provider does not
provide automatic configuration of your gateway you will be
prompted by the gateway for this password. The username is
usually in the format xxx@ispname.com
Gateway:
This is the password to your TG588v
administration pages at http://192.168.1.1. The default
username is "admin" and the default password is "admin". You
will be prompted to change this password when first accessing
the gateway. Choose a memorable password that is difficult for
an unauthorised person to guess. Using a long password that is
a mix of upper and lower case, numbers and special characters
will make your gateway more secure.
Wireless:
The TG588v provides by default a unique wireless
network name (SSID) and a randomly generated WPA password.
This password can be changed using the admin pages of the
TG588v. Note that it is important that this password is difficult
for anyone trying to access your network to guess. It must
also be between 8 and 63 characters long using alphanumeric
characters only, e.g. MyWiFi15.
WELCOME
Thank you for purchasing and making Technicolor gateways part
of your broadband experience. For more information on your
Technicolor gateway please visit us at:
www.technicolor.com
BEFORE INSTALLING YOUR
TECHNICOLOR GATEWAY
Please ensure that your broadband service has
been activated by your service provider.
*DSL filters: The number of Inline DSL filters included with your
gateway is determined by your retailer or service provider.
Additional filters can be purchased online at
www.technicolordslshop.com or from your service provider.
BEFORE INSTALLATION
Once you have been notified by your service provider that your
Broadband service has been activated you can continue to set
up your TG588v gateway.
Note: Installation before the service activation date will cause the
set up to fail.
During installation you may be prompted by the gateway to enter
the broadband service (PPP) username and password provided
by your service provider.
In order to connect using a wireless connection you will need
the wireless details provided with your TG588v. These are
conveniently printed on the supplied wireless 'Keep Me' card
and reproduced on the rear label of the TG588v.
1
PACK CONTENTS
Technicolor
DSL cable Ethernet
TG588v Router (grey) cable (yellow)
DSL Filter Safety Leaflet &
Stand
(*optional) Set Up Guide
WiFi Set Up 2 Part
Card Power Supply
If you have been supplied a
two part power supply unit, clip
the two parts together before
connecting to the AC mains
power socket.
3 CONNECTING YOUR TG588v
TG588v v2
SN: CP0001ABZYX
wireless user codes
GW: DSLABC588EFG
1401-2200
MAC: 0123A0BCD22
Network Name: TNCAP0QQP00
Wireless Key: 111AB0C22CD
ACCESS KEY: H0JK33L1
Made in China Rated Input: 12V 1A
DSL 1 2 3 4 Reset
If you have a Master socket with a single phone
connection you will need to fit a DSL filter to every
telephony device in the home. This includes telephones,
DECT phone base stations, Satellite TV boxes,
Connected alarm systems and emergency call diallers.
2
BROADBAND CONNECTIONS
Your TG588v can be used with both standard ADSL
and VDSL (FTTC / Infinity) broadband services.
Once connected to an active broadband service (solid
green broadband LED) your TG588v will automatically
switch between ADSL and VDSL service types.
Some service providers will remotely configure your
TG588v so that it automatically connects to your
broadband service. This automatic configuration can
take a few minutes.
If your service provider does not provide automatic
configuration you will be prompted to enter the
broadband service password provided in your welcome
pack supplied by your service provider. This prompt is
automated by the TG588v when you first open a web
browser to any HTTP website.
As shown above enter your broadband username and
password and select Apply.
Once connected both the broadband and Internet
LED's will be solid green
TG588v v2
SN: CP0001ABZYX
wireless user codes
GW: DSLABC588EFG
1401-2200
MAC: 0123A0BCD22
Network Name: TNCAP0QQP00
Wireless Key: 111AB0C22CD
ACCESS KEY: H0JK33L1
Made in China Rated Input: 12V 0.75A
DSL 1 2 3 4 Reset
If you have a Master socket with a central filter it will
have a telephone socket and a broadband socket. In
this case you can connect your TG588v directly to the
broadband socket.
