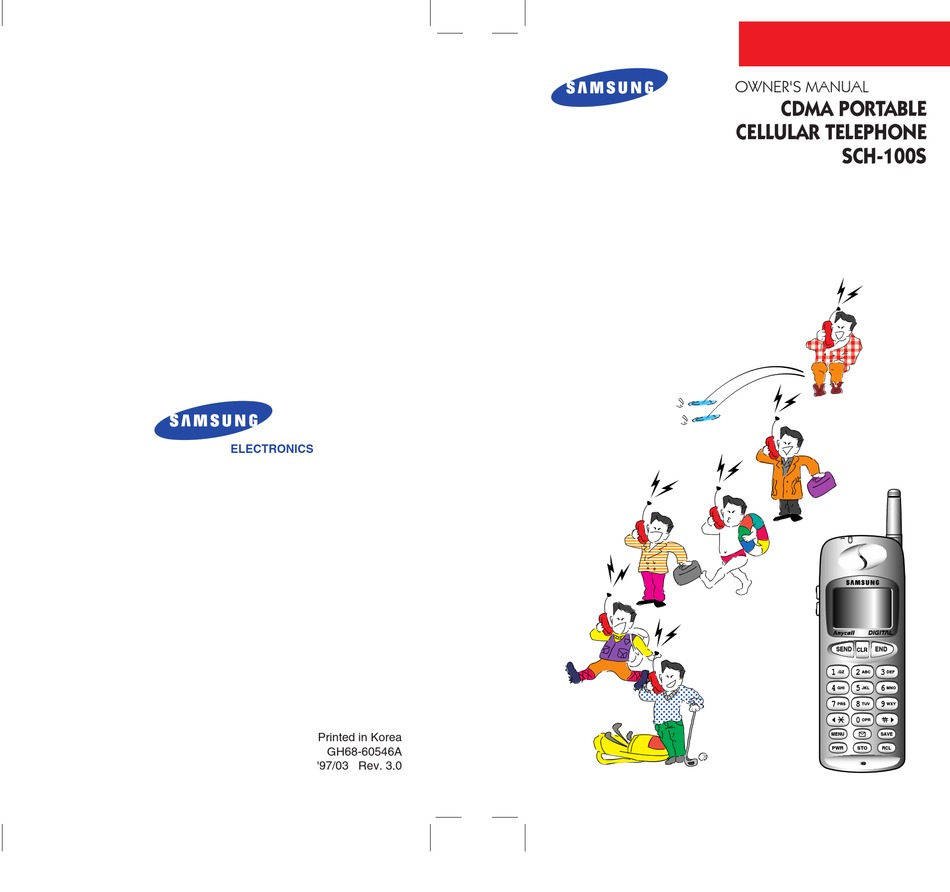

- Page 1 ELECTRONICS Printed in Korea GH68-60546A '97/03 Rev. 3.0 OWNER'S MANUAL CDMA PORTABLE CELLULAR TELEPHONE SCH-100S SEND ;;;;;;;; ;;;;;;;; ;;;;;;;; ;;;;;;;; ;;;;;;;; MENU SAVE...
-
Page 2: Safety Precautions
Symbols Press/Push Important = Step number Safety Precautions The illustrations below indicate the safety precautions to be taken when using your cellular telephone. Note The use of cellular phones in an aircraft: Is dangerous to aircraft operations. May disrupt the cellular network. Is illegal. -
Page 3: Table Of Contents
Contents Front View of the Phone ... 6 Rear View of the Phone ... 7 LCD Display and Indicators ... 8 Preparation Installing the Battery Pack ... 9 Charging the Battery Pack ... 10 Tips on Battery Charging ... 11 Checking the Battery Charge Level ... -
Page 4: Front View Of The Phone
Front View of the Phone Volume buttons ( Strap hole Receiving lamp Antenna Buzzer Speaker LCD display SEND: makes a call SEND CLR: clears messages on LCD END: ends a call Number keypad : scrolls option menu MENU: helps access special MENU SAVE features... -
Page 5: Lcd Display And Indicators
LCD Display and Indicators INUSE ROAM FM CDMA displays the dialed numbers and the current status blinks while your phone selects a channel INUSE and lights up when the line is connected. NOSVC NOSVC: no service area SVC: service area lights up when your phone is out of the ROAM home area. -
Page 6: Charging The Battery Pack
Charging the Battery Pack When you purchase the product, the battery is not fully charged. Please charge the battery fully before you operate your phone. 1. Plug the power cord of the charger into an appropriate wall socket. An appropriate power cord should be used according to the voltage provided in the user's area. -
Page 7: Checking The Battery Charge Level
When fully charged, the new battery will last as follows: Battery Standard Medium Status Talk mode 60 min 130 min Digital Slot 1 13-14 hr 27-29 hr mode Slot 2 17-19 hr 36-38 hr Talk mode 40 min 80 min Analog mode Standby... -
Page 8: Turning The Phone On And Off
Turning the Phone On and Off The phone can only place and receive calls when it is turned on. 1.To turn on the phone, press PWR and hold. Result: The phone Beeps displays the greeting MENU SAVE message, your phone number, and current time (In digital mode). -
Page 9: Making A Call
Making a Call You can only make a call when the phone is turned 1. Enter the desired telephone number, including the area code. Result: The number entered is displayed. MENU SAVE 2. If you make a mistake: Press CLR once or more until SEND the incorrect digit or digits are cleared. -
Page 10: Receiving Calls
Receiving Calls You can only receive calls when the phone is turned 1. When there is an incoming call, the phone rings. CDMA C A L L You can choose the alert type; 0 1 / 0 4 3 : 1 5 P bell, lamp, or vibration (option). -
Page 11: Mute
Mute This feature allows you to mute the phone's microphone, so you can have a private conversation with someone without the person at the other end listening. This function is only available during a telephone conversation. 1. Press MENU while you are over the phone. -
Page 12: Choosing Ringer Bell
Choosing Ringer Bell You have a choice of nine different ringer bells to inform you of an incoming call. 1. Press MENU. MENU SAVE 2. Press numeric button 2 twice. MENU SAVE 3. Press repeatedly until you find the desired ringer bell. INUSE CDMA A l e r t T o n e... -
Page 13: Finding An Empty Memory Location
To Erase All Numbers in Redial Memory 1. Press: MENU followed by Numeric button 0 MENU SAVE Result: You are asked to enter the lock code. 2. Enter the current lock code. The lock code is preset to 0000. An asterisk ( ) is displayed for each digit entered. -
Page 14: Storing Numbers In Memory
Storing Numbers in Memory You can store the numbers that you dial frequently in the memory for a convenient dialing. Up to 100 numbers can be stored in memory location 00-99. Memory locations from 00 to 09 are used for one-touch dial. Memory locations from 90 to 99 are used to store confidential phone numbers. -
Page 15: Entering Name In Memory
Entering Name in Memory Names of up to 12 letters can be stored together with phone numbers in the memory. 1. Start when the LCD prompts to enter name. INUSE FM CDMA S t o : 0 0 N a m e ? 2. -
Page 16: Storing Numbers Into Numeric Group
Storing Numbers into Numeric Group You can store the associated numbers in a group. Example: individual phone numbers ; 00-09 office phone numbers ; 10-19 business phone numbers ; 20-29 1. Enter the desired telephone number, including the area code. Result: The number entered is displayed. -
Page 17: Secret Number Dialing
Secret Number Dialing You can dial the secret phone number stored in memory locations from 90 to 99 the same as 'Two- Touch Dialing' on page 31. Only difference when you dial the secret number is Phone number is not displayed Name (if stored) is displayed If you want to see the phone number stored in secret memory, do as follows:... - Page 18 By Name 1. Press: MENU followed by Numeric button 7. MENU SAVE Result: The messages SORT NAMES and then ENTER NAME are displayed. 2. Enter all or part of the name to search by using the number button INUSE FM CDMA marked with the desired letter.
-
Page 19: Erasing Numbers In Memory
By Partial Phone Number 1. Press CLR and hold. SEND Result: The number on the display is erased. 2. Enter part of the phone number you remember. 3. Press RCL. Result: The first number matching MENU SAVE the request is displayed with: memory location number name (if any) 'NO MATCH NUMBER' is... -
Page 20: Turning Keytone On And Off
To Erase All Numbers in Memory 1. Press: MENU followed by Numeric button 0. MENU SAVE 2. Enter the lock code. The lock code is preset to 0000. An asterisk ( ) is displayed for each digit entered. MENU SAVE 3. -
Page 21: Sending Your Own Phone Number
Sending Your Own Phone Number You can send your phone number with a simple press of buttons. This function is only available during a telephone conversation. 1. When the pager asks you to enter your phone number after calling paging system, press: MENU followed by MENU... -
Page 22: Key Lock
Key Lock Use this feature to prevent unwanted key press. If you turn on the feature, the keys on the phone are locked and cannot be operated. 1. Press SAVE and hold. Result: The message KEY LOCKED is displayed and your phone does not operate when the MENU SAVE... -
Page 23: Timers
Using Pause You can insert a pause once or more between the DTMF tones. You can dial up to 36 digits including the pause. 1. Enter the phone number of the service that you wish to access. 2. Press: MENU SAVE followed by Result: The pause indication 'p' is... - Page 24 4. Enter the desired city number. Result: The current time of the desired city is displayed. MENU SAVE SEND To... Check time for other cities Exit this function MENU SAVE If the LCD displays 'PLEASE ENTER CDMA SERVICE FOR TIME' when you try to check world time, you cannot get correct world time information unless you set correct current time.
- Page 25 To Check the Last Call or the Cumulative Air Time This feature allows you to check the duration of the last call or the cumulative air time. 1. Press MENU. MENU SAVE 2. To check... Last call time MENU SAVE Cumulative air time Result: The last call or the...
-
Page 26: Call Reservation Alert
Call Reservation Alert This feature allows you to place a call at a specified time. The phone will beep and the phone number will be displayed. To Turn On the Feature 1. Press MENU. MENU SAVE 2. Press numeric buttons 4 and 1. Result: The LCD display prompts you to enter a phone number. -
Page 27: Automatic Feature Setup
To Turn Off the Feature 1. Press MENU. MENU SAVE 2. Press numeric buttons 4 and 2. INUSE FM CDMA R e l e a s e R s v d C a l l ? Y E S 3. Press STO. MENU SAVE If the power is turned off while the call reservation alert is... - Page 28 4. Press to choose the status you want. MENU SAVE 5. Press STO. MENU SAVE Selectable Features Automatic Redial: When this feature is activated (YES mode), a number is automatically redialed if the call is not connected successfully. If the phone is connected to the system while redialing the number, you can hear the connect tone.
-
Page 29: Changing Greeting Message
Changing Greeting Message This feature allows you to change the greeting message displayed when you turn on the phone. 1. Press: MENU followed by Numeric button 0 MENU SAVE 2. Enter the lock code. The lock code is preset to 0000 at the factory. - Page 30 1. Press: MENU followed by Numeric button 0 MENU SAVE Result: The LCD display asks to enter your lock code. 2. Enter the lock code. Result: If the correct lock code is entered, the Setup menu is displayed. MENU SAVE The lock code is preset to 0000 at factory.
-
Page 31: Changing Lock Code
Changing Lock Code When you purchase your phone, the lock code is preset to 0000. 1. Press: MENU followed by Numeric button 0 MENU SAVE 2. Enter the current lock code. Result: An asterisk ( ) is displayed for each digit entered. MENU SAVE 3. -
Page 32: Warning Beep Generation
Warning Beep Generation You can set your phone to generate beeps every one minute during your phone conversation to indicate the call time passed. when service area is changed. 1. Press: MENU followed by Numeric button 0 MENU SAVE 2. Enter the lock code. Result: The lock code is preset to 0000. -
Page 33: System Reset
System Reset This feature changes the status of the phone to manufacturer's default status. If you want to reset all changed status to manufacturer's default status, use this feature. 1. Press: MENU followed by Numeric button 0 MENU SAVE 2. Enter the lock code. Result: The lock code is preset to 0000. -
Page 34: Battery Safety Precautions
Battery Safety Precautions The illustrations below indicate the precautions to be taken with the battery packs. To maximize the charging capacity, LBATT avoid repetitive partial discharging and charging. Wait until you hear the battery low alarm before you charge the battery. 35°C DO NOT use or charge the batteries in 5°C... -
Page 35: Accessories
Accessories Hands-free Kit The hands-free kit provides you hands-free operation in your vehicle with unlimited talk time. The hands-free kit built in charger allows battery charging in your vehicle. The hands-free kit includes the following. For more information about hands-free kit, see hands-free kit manual. Mounting bracket Cradle screws included... -
Page 36: Troubleshooting
Troubleshooting Before contacting an authorized service center, perform the following simple checks. They may save you the time and expense of an unnecessary service call. NOSVC is displayed in the display. Make sure you are in the service area. If you have changed the service system, wait for about 2 minutes. -
Page 37: Lcd Messages
The model and serial numbers of your phone Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG Authorized Service Center. LCD Messages Cumulative call time is cleared... -
Page 38: Summary
The name you are trying to NAME NOT FOUND recall does not exit. There is no phone number NO LAST CALL stored in redial memory. The phone number you are NO MATCH NUMBER trying to recall does not exit. You have pressed SEND without NO PHONE NUMBER entering a phone number. - Page 39 Calling numbers by One-touch 0-9 (hold the last digit of the hot line memory 00-09) Two-touch 10-99 (press shortly the first digit and hold the last digit) Scanning memories by Location number RCL + location (00-99) + Name MENU + 7 + name + RCL + Partial phone The first part of phone number number...
- Page 40 No international MENU + 0 + lock code + 4 + 3 + call + STO No special call MENU + 0 + lock code + 4 + 4 + + STO Changing lock code MENU + 0 + old lock code + 3 + new code + STO Automatic lock MENU + 0 + lock code +...
- Page 41 Summary BASIC OPERATION Turning on and off PWR (press and hold) Making a call Phone number + SEND Receiving a call Any button (except for PWR) Adjusting volume Ringer MENU + 5 + Keytone (in standby mode ) Speaker (while over the phone ) Mute (while over the phone ) MENU + 2 Choosing alert type...
