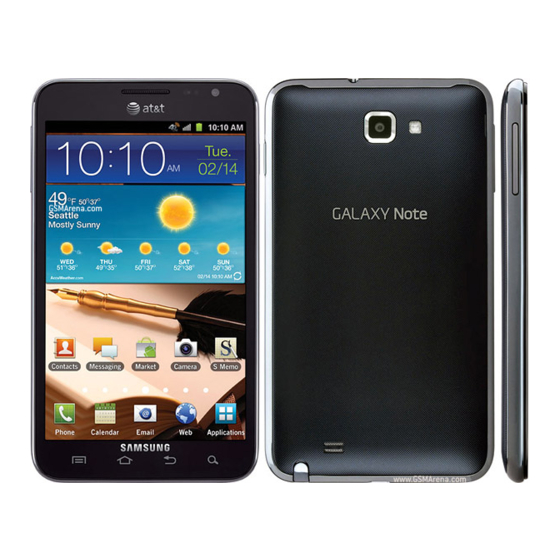

Samsung Galaxy Note Quick Start

LEARNING THE BASICS INSERT SIM CARD
Light sensor
Microphone 1. Turn the phone off and remove the back cover.
(speakerphone
and recording) Proximity sensor
Earpiece
Front camera lens
Power/Reset/Lock
key
Touch screen
2. Insert the SIM card.
Home key
Back key
Menu key
Search key
Multifunction jack
Microphone
Headset jack
Flash
GPS antenna 1
3. Insert the battery.
Rear camera lens
Volume key
Back cover
Speaker Main antenna
4. Replace the back cover.
S Pen slot
I717M_QSG_EN_D3.indd 1
INSERT MEMORY CARD
To store additional files, insert a memory card.
Your device accepts microSD™ or microSDHC™
memory cards with 32 GB maximum capacity.
1. Remove the back cover and battery.
2. Insert a memory card with the gold-coloured
contacts facing downwards.
3. Push the memory card into the memory card
slot until it locks in place.
4. Replace the battery and back cover.
Note: Insert the SIM card
CHARGE THE BATTERY
with the gold-coloured
contacts facing down.
1. Plug the small end of the travel adapter into the
multifunction jack on the bottom of the phone.
2. Plug the large end of the travel adapter into a
power outlet.
3. When the battery is fully charged (battery icon
is no longer moving), unplug the travel adapter
from the phone and then from the power outlet.
TURN ON/OFF
To turn on your device, press and hold the Power
key. To turn off your device, press and hold the
Power key, and select Power off → OK.
IDLE SCREEN VOICE MAIL
If you set missed calls to be diverted to the voice
When the device is in Idle mode, you will see the
mail server, callers can leave voice messages
idle screen. From the idle screen, you can view
when you do not answer incoming calls. To access
indicator icons, widgets, shortcuts to applications,
your voice mail inbox and listen to your messages,
and other items.
open the application list, select Phone → Keypad,
To scroll through the Idle screen, drag left or right
and then tap and hold 1.
to view the hidden areas of the Idle screen. You can
also select a dot at the bottom of the screen to move
ENTER TEXT
directly to a panel.
You can enter text with the virtual keypads or in
LOCK SCREEN AND KEYS
handwriting mode. You can also use editing options
to copy and paste text.
You can lock the touch screen and keys to prevent
any unwanted device operations.
Swype keypad
To lock, press the Power key. To unlock, turn on the
With the Swype keypad, you can enter text by
screen by pressing the Power key, tap anywhere
sliding across characters on the keypad. Tap the
on the screen, and then drag outside of the large
first character of a word, drag to the following
circle.
characters, and lift your finger on the last character.
S PEN
Samsung keypad
The Samsung keypad provides different keypad
The S Pen can be removed from the slot at the
types (such as QWERTY and 3x4 keypads).
bottom of the device and used to perform screen
When using the QWERTY or 3x4 keypad, you can
operations such as Back (tap and drag left), Menu
use the predictive text feature to predict the word
(tap and drag up), Screen Capture (tap and hold),
you are entering and display suggestions.
and Quick Memo (double-tap).
TIP: When entering text, rotate the device to
MAKE OR ANSWER A CALL
display the keypad in a widescreen layout.
You can make a call by entering a phone number
Handwriting mode
or selecting a number in your contact list. You can
From the Samsung keypad, you can switch to
also access the call log to dial recent numbers.
Handwriting mode to enter text. To switch to
Make a call: Open the dialing screen, enter a Handwriting mode, select
phone number, and select . the handwriting panel. To switch to the Samsung
keypad, select .
Answer a call: When a call comes in, drag right.
TECHNICAL SPECIFICATIONS
Network:
• LTE 100Mbps
• HSDPA 21Mbps
• HSUPA 5.76Mbps
• EDGE/GPRS Class 10
Dimensions: 146.85 x 82.95 x 9.65 mm
Weight: 180g
Display: 5.29" WXGA (1280x800) sAMOLED HD
Battery: Li-Ion 2500mAh
Memory:
• 8Gb (LPDDR) + 512Mb (mDRAM)
• 16GB MoviNAND
Connectivity:
• WiFi 802.11 a/b/g/n (2.4GHz / 5GHz)
•
USB 2.0, BT v3.0 HS
• USB OTG
Camera: 8M AF w/LED + 2M FF VT
Bluetooth:
• Bluetooth v3.0 HS
• Supports GAP, SSP, SDAP, HSP, HFP1.5, A2DP,
AVRCP 1.3, SPP, OPP, PBAP
Expandable Memory: MicroSD (up to 32GB)
. Write your text on
Operating System: Android Gingerbread
THE FINE PRINT
Samsung Electronics Canada Inc.
Customer Care Centre
1.800.SAMSUNG
www.samsung.ca
Many of the services and features described herein are network
dependent and may require additional subscription and/or usage
charges. Not all features are available for purchase or use in all areas.
Please Note: Standby and talk times will vary depending on phone
usage patterns and conditions. Battery power consumption depends
on factors such as network configuration, signal strength, operating
temperature, features selected, frequency of call, and voice, data and
other application usage patterns.
Compatibility with all Bluetooth® equipment is not guaranteed. The
Bluetooth technology trademarks are owned by Bluetooth SIG, Inc.,
Canada and used by Samsung Electronics Co. Ltd. under license.
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered
trademarks of the Wi-Fi Alliance.
© 2012 Samsung Electronics Canada Inc. All rights reserved.
Samsung is a registered trademark of Samsung Electronics Co. Ltd.
and its related entities. Specifications subject to change without notice.
GH68-36323A
