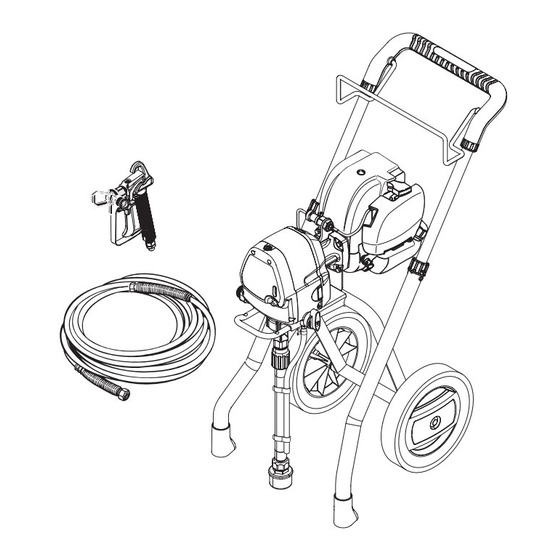

WAGNER Procoat 9185G Owner's Manual

Gas-powered airless paint sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

PROCOAT
Gas-Powered Airless
Paint Sprayer
Owner's Manual
Read this manual for complete instructions
Français (page 25) / Español (página 49)
Contents
•
Form No. 0293922E
0412
™
9185G
Questions?
Call Wagner Technical Service at:
1-800-880-0993
Español
Register your product online at:
www.wagnerspraytech.com
Proper registration will serve as proof
of purchase in the event your original
receipt becomes misplaced or lost.
Français
English

Advertisement

Table of Contents
loading

Related Manuals for WAGNER Procoat 9185G

Summary of Contents for WAGNER Procoat 9185G

  • Page 1: Table Of Contents

    20 Long-Term Storage Questions? 21 Cleaning the Sureflo™ Valve 9 Getting Material to Flow 10 Practice Spraying 22 Troubleshooting Call Wagner Technical Service at: Register your product online at: www.wagnerspraytech.com 12 Clear the Spray Tip 72 Parts List 1-800-880-0993 13 Clean the Spray Gun Filter...

  • Page 2: Important Safety Information

    7. Keep spray area well ventilated. Keep a good event that injection occurs, seek medical attention Important Safety supply of fresh air moving through the area to keep immediately. 8. Check hoses and parts for signs of damage, a the air within the spray area free from accumulation of flammable vapors.
  • Page 3 7. Do not kink or over-bend the hose. Airless hose can • Do not overfill the fuel tank. After refueling, make octane number of 91 or higher. Use of a lower develop leaks from wear, kinking and abuse. A leak sure the tank cap is closed properly and securely.

  • Page 4: What's In The Box

    GS-07 Spray Gun Assembly Sprayer Assembly What’s in Hose wrap the box?* *Certain parts of the sprayer will not be Engine assembled out of the box. Be sure to read Assembly instructions, page 6. DirectLink™ pressure control knob Start Notice: AutoOiler™...

  • Page 5: Proper Use And Functions

    Controls and Functions Proper use DirectLink™: PRIME/SPRAY knob: and functions The PRIME/SPRAY knob directs Spraying pressure is determined SPRAY by the motor throttle. The throttle material to the material return is regulated by adjusting the tube when set to PRIME or to DirectLink™...

  • Page 6: Assembly

    1. Assembly Start You will need: • Two adjustable wrenches Note: It will be much easier to attach the hose to the sprayer if you uncoil it first. 2. Remove the plug from inside 1. Insert the ends of the hose 3.

  • Page 7: Pressure Relief Procedure

    Important Safety Warning Pressure Relief Be careful when handling the spray gun so you don’t accidently spray yourself. The high pressure paint stream could pierce your skin causing serious injury. If Procedure* an accident happens see detail procedures in the Safety Information section on pages 2-3.

  • Page 8: Load Material

    2. Load Material Start You will need: • The material you plan to spray • Flat blade screwdriver • Piston Oil™ • Waste bucket 1. Remove AutoOiler cap with a 3. Fully depress the Sureflo valve 2. Push AutoOiler button 2-5 times flat blade screwdriver.

  • Page 9: Getting Material To Flow

    3. Getting Material to Flow SPRAY Start You will need: • Waste bucket • Scrap material / cardboard • Drop cloths to protect floors and furnishings from overspray 1. Start the engine (see page 2. Turn the PRIME/SPRAY ImPOR´TANT: When placed on a smooth 3.

  • Page 10: Practice Spraying

    4. Practice Tip: Spraying Trigger gun after starting the stroke. Release the trigger before ending the stroke. The spray gun should be moving when the trigger is pulled and released. Overlap each stroke by about 50%. This will ensure an even coating. Start You will need: •...
  • Page 11 Spray Technique Tip: CORRECT F ex your wr st as you move n order to CORRECT keep gun para e to the surface INCORRECT Start Pull Move Release stroke trigger steadily trigger stroke Spray Pattern Overlap Your Strokes GOOD SPRAY PATTERN BAD SPRAY PATTERN: TAILING CORRECT 50% Overlap...

  • Page 12: Clear The Spray Tip

    Spraying Troubleshooting - Note: If spray tip is difficult to rotate, relieve pressure by 1) slowly turn PRIME/ Clear the SPRAY knob to PRIME, 2) unlock the spray gun and Spray Tip 3) squeeze trigger while pointing at scrap material/ cardboard.

  • Page 13: Clean The Spray Gun Filter

    Spraying Troubleshooting - Clean the Spray Gun Filter Start You will need: • Wrench • Warm, soapy water for latex material • Mineral spirits for oil based materials • Replacement spray gun filter (if necessary) ImPORTANT: Never clean the filter by 3.

  • Page 14: Clean The Inlet Filter

    Spraying Troubleshooting - Clean the Inlet Filter Start You will need: • Warm, soapy water for latex material • Mineral spirits for oil based materials ImPORTANT: make sure your floors and furnishings are covered with drop cloths 1. Unscrew the inlet filter from the fitting 2.

  • Page 15: Short Term Storage

    Shutdown Short Term Storage Start You will need: • Water • Plastic bag or bucket • Rags • Stir stick This procedure should be used when taking 1. Peform the Pressure Relief 2. Place spray gun in plastic 3. Pour 1/2 cup water slowly on a short term break or when ending your Procedure, page 7.

  • Page 16: Cleanup - Latex Materials

    Cleanup Cleaning notes - read before cleaning • When using latex material, clean sprayer and components with warm, soapy water. For oil based material use mineral spirits. Never use mineral spirits with latex materials. MINERAL • NEVER use gasoline to clean sprayer. SPIRITS •...
  • Page 17 5. Remove the inlet filter from 6. Thread pump cleaning 7. Unclip the return tube from the suction tube 8. Turn the water supply to the garden hose on. Start the engine (see page 4). the suction tube and place adapter onto garden hose.

  • Page 18: Cleanup - Oil-Based Materials

    Cleanup - Oil-Based Materials You will need: Start • Mineral spirits if using oil-based material • Warm, soapy water if using latex material • Waste container Follow these steps if you sprayed oil-based materials, or if you sprayed latex materials 2. Remove the spray tip 1. Perform Pressure Relief 3.

  • Page 19: Cleaning The Spray Gun Components

    Cleaning the Spray Gun Components Start You will need: • Soft bristled brush • Light household oil • Warm, soapy water if using latex material • Mineral spirits for oil based material • Wrench 3. Remove filter from spray gun. 1.

  • Page 20: Long-Term Storage

    Using a wrench, remove the spray hose. If you plan to store in household oil can be substituted). temperatures below 32ºF Start the engine (see directions on (0ºC), flush with Wagner page 4). Liquid Shield™ (sold separately). 3. Cover the outlet valve with a rag.

  • Page 21: Cleaning The Sureflo Valve

    Cleaning the Sureflo Valve Start You will need: • Wrench Cleaning or servicing the Sureflo Valve may be required if the unit has priming problems. Priming problems may be prevented by properly cleaning the sprayer 1. Remove the suction tube. 2. Unscrew the Sureflo Valve assembly (a) from the and following the long-term storage steps.

  • Page 22: Troubleshooting

    The outlet valve is stuck Call Technical Service The inlet valve is worn or damaged Take sprayer to Wagner Authorized Service Center The PRIME/SPRAY valve is plugged Take sprayer to Wagner Authorized Service Center Problem C: The sprayer draws up material but the pressure drops when the gun is triggered (bad spray pattern)
  • Page 23 Problem F: The spray tip assembly leaks Cause Solution The spray tip was assembled incorrectly Check tip assembly and assemble properly see page 19, steps 6-7 Gun seal is worn Replace the seal** Problem G: The spray gun will not spray Cause Solution The spray tip plugged...

  • Page 24: Parts List

    Câb e de m se à a terre Cab e de conex ón a t erra This unit contains no servicable parts. Do not attempt to service yourself. Take the sprayer to a Wagner authorized service center. Cet appareil ne contient aucune pièce nécessitant un entretien quelconque.
  • Page 25 Parts List • Liste de Pièces • Lista de Piezas Suction set • Dispositif d’aspiration • Juego de succión Item Part No. qty. Art. No de piéce qté. Français - Description Art. Pieza No. English - Description Español - Descripción Cant. 0516127 Suct on set D spos t f d’asp rat on Juego de succ ón...
  • Page 26 Parts List • Liste de Pièces • Lista de Piezas GS-07 Spray Gun • Pistolet de GS-07 • Pistola de GS-07 Item Part No. qty. Art. No de piéce qté. Français - Description Español - Descripción Art. Pieza No. English - Description Cant.
  • Page 27 Accessories • Accessoires • Accesorios Part No. No de piéce Français - Description Pieza No. English - Description Español - Descripción 0512178A P ston repa r k t Jeu de jo nts pour tronçon d’achem nement Juego de reparac ón de p stón Raccord de flex b e 0093896 Hose connector k t...

  • Page 28: Warranty

    Esta garantía no cubre ningún defecto o ou par l’usure normale. La présente garantie ne s’applique service or repair performed by anyone other than a Wagner daño que haya sido causado por los servicios o reparaciones pas non plus aux défectuosités ou dommages résultant Authorized Service Center.
