Swann DVR4-1060 Easy Setup Manual

A
Package Contents
DVR4-1060,
Packaging
DVR4-1100 OR DVR4-1150
Manuals Remote
BNC to
Control
RCA Cable
DVR Power Power Adapter Cameras and Accessories Optional
Adapter Cable
C
Connecting the DVR to TV
1
Connect the yellow
RCA cable to an INPUT
Back of TV
on the back of your TV
INPUT
2
Connect the BNC end
3
Tune your TV to the
of the cable to the top
correct INPUT - this is
VIDEO INPUT on DVR
sometimes labelled A/V,
input, source, L1, L2, etc.
- consult TV manual for details
Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799, 1-877-274-3695, Australia - 1300 13 8324 • Email: tech@swannsecurity.com
Easy Setup Guide
B
Software CD
Security
USB Cable
Stickers
Cameras Optional
Back of DVR
1
Connect the camera
cables to the Extension
Cables
2
Connect BNC Extension
to back of DVR in ports
marked Video Input
DVR4-1060
DVR4-1100
DVR4-1150

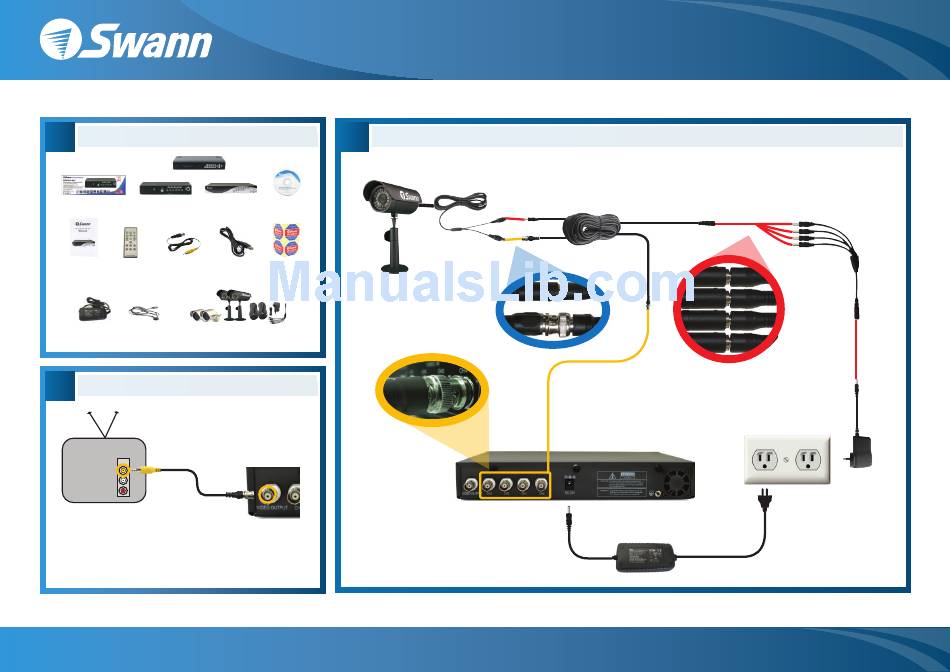

Camera Connections
3
Connect all power ends
of Extension cables to
the Power Splitters if
applicable
4
Connect Power
Splitter to Camera
Power Adapters
5
Plug in Camera Power
Adpaters and DVR
Adapter to outlets
www.swannsecurity.com
