Planet ADE-3400 Quick Installation Manual

1. Important Safety Instructions

● Do not use the ADSL modem in high humidity or high
temperatures.
● Do not use the same power source for the ADSL modem
as other equipment.
● Do not open or repair the case yourself. If the ADSL
modem is too hot, turn off the power immediately and
have it repaired at a qualified service center.
● Avoid using this product and all accessories outdoors.
● Place the ADSL modem on a stable surface.
● Only use the power adapter that comes with the
package. Using a different voltage rating power adaptor
may damage the router.

3. Hardware Installation

Please connect the device to you computer as follow:
● If connecting to the splitter, connect the "Line" splitter to
wall jack using one telephone cable
● Use another telephone cable to connect "MODEM" port of
the splitter and "LINE" port of the modem. The "Phone"
port of the splitter can be use to connect the telephone
by a telephone cable.
● Use Ethernet cable to connect "LAN" port of the modem
and "LAN" port of your computer.
Phone Line
Jack
RJ-11
Splitter
Modem
Line
Phone
Phone

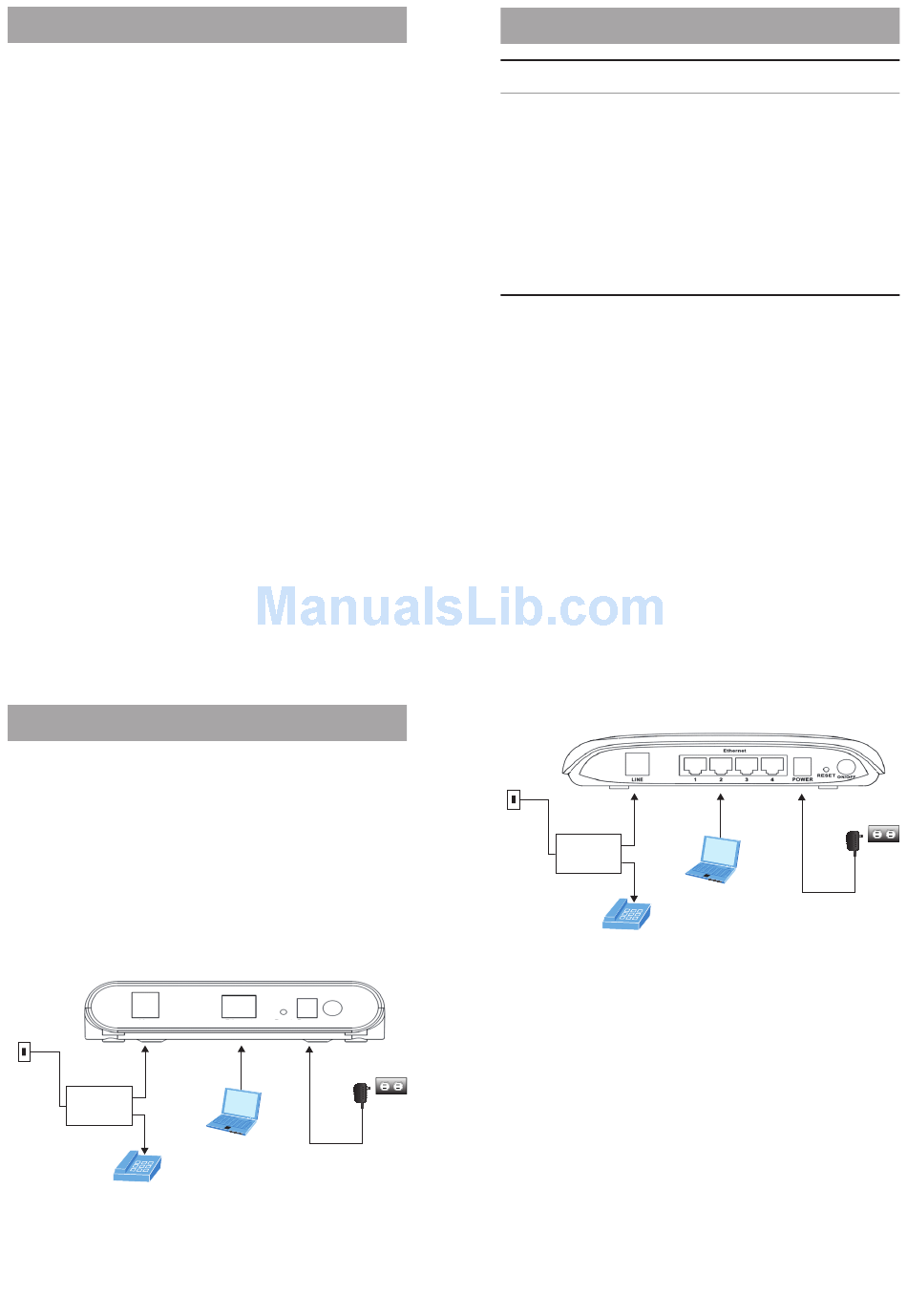

Figure 1: ADE-3400 connection diagram
– 1 –
ADE-3400
Ethernet Reset Power
RJ-45
Power
Adpter
PC
– 3 –

2. Package Content

t ADE-3400 / ADE-4400 Unit
t CD-ROM containing the user's manual x 1
t Quick Installation Guide x 1
t ADSL Splitter x 1
t Power Adapter x 1
t RJ-11 (ADSL) cable x 2
t RJ-45 cable x 1
If any of the above items are missing or damaged, contact
your local dealer for support.
Phone
Jack
If do not need to connect to the splitter,
● Connect the modem to wall jack with a telephone cable.
● Use Ethernet cable to connect "LAN" port of the modem
and network adaptor of your computer.
Power
ADE-3400 / ADE-4400
– 2 –
ADE-4400
RJ-45
RJ-11
Splitter
Modem
Line
Phone
PC
Phone
Figure 2: ADE-4400 connection diagram
– 4 –
Power
Power
Adpter
