Summary of Contents for Endress+Hauser Viomax CAS51D

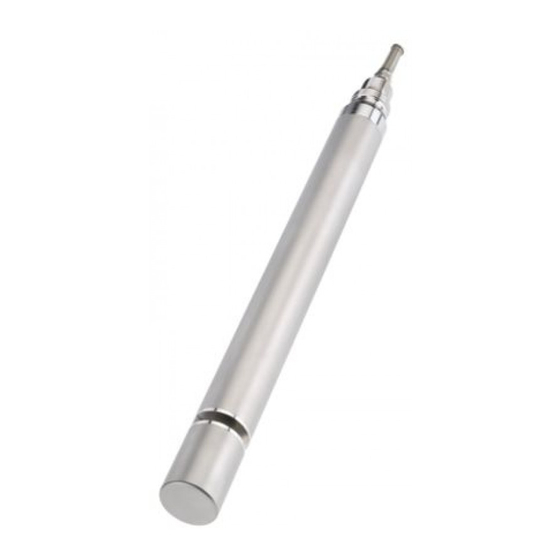

- Page 1 Products Solutions Services BA00459C/07/EN/14.17 71350074 Operating Instructions Viomax CAS51D Photometric sensor for SAC or nitrate measurement AUTHORIZED DISTRIBUTOR: InstrumentsAndControl.com Houston, Texas USA sales@InstrumentsAndControl.com 281-609-7170...
-
Page 2: Table Of Contents
Table of contents Viomax CAS51D Table of contents Document information ....3 Repairs ......32 Warnings . -
Page 3: Document Information
Viomax CAS51D Document information Document information Warnings Structure of information Meaning This symbol alerts you to a dangerous situation. DANGER Failure to avoid the dangerous situation will result in a fatal or serious Causes (/consequences) injury. Consequences of non-compliance (if applicable) ‣... -
Page 4: Basic Safety Instructions
Basic safety instructions Viomax CAS51D Basic safety instructions Requirements for personnel • Installation, commissioning, operation and maintenance of the measuring system may be carried out only by specially trained technical personnel. • The technical personnel must be authorized by the plant operator to carry out the specified activities. -
Page 5: Operational Safety
Viomax CAS51D Basic safety instructions Operational safety 1. Before commissioning the complete measuring point, verify that all connections are correct. Ensure that electrical cables and hose connections are undamaged. 2. Do not operate damaged products, and protect them against unintentional operation. -
Page 6: Device Description
Device description Viomax CAS51D Device description Sensor design The sensor is designed as a 40 mm sensor that can be operated directly and completely in the process without the need for further sampling (in situ). One version of the sensor measures the amount of nitrate in the medium while another version measures the SAC value of the medium. - Page 7 Viomax CAS51D Device description NPT “ ¾ 40 (1.57) A0031311 3 Sensor with 40 mm gap width, dimensions in mm (inch) Endress+Hauser...
-
Page 8: Operating Principle
Device description Viomax CAS51D Operating principle 3.3.1 Measuring principle The light from a pulsed, high-stability strobe lamp (item 3) passes through the measurement section (item 2). A beam splitter (item 6) directs the light beam to the two receivers (items 1 and 5). A filter upstream from the receivers only lets through light in the measuring wavelength or reference wavelength. - Page 9 Viomax CAS51D Device description 3.3.2 Nitrate measurement The sensor is designed for measuring nitrate. As nitrite is also measured, it could also be regarded as an NO sensor. Nitrate ions absorb UV light in the range of approx. 190 to 230 nm. Nitrite ions have a similar absorption rate in the same range.
- Page 10 Device description Viomax CAS51D The ratio to SAC (based on KHP) is calculated as follows: 1/m = 1.487 mg/l COD = 1.487 mg/l BOD = 0.595 mg/l TOC = 0.595 mg/l DOC Many components that absorb light at 254 nm deviate significantly from KHP in terms of their absorption behavior.
-
Page 11: Incoming Acceptance And Product
Viomax CAS51D Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance 1. Verify that the packaging is undamaged. Notify your supplier of any damage to the packaging. Keep the damaged packaging until the matter has been settled. -
Page 12: Scope Of Delivery
Incoming acceptance and product identification Viomax CAS51D Manufacturer's address Endress+Hauser Conducta GmbH+Co. KG Dieselstraße 24 D-70839 Gerlingen Scope of delivery The delivery comprises: • Sensor in the version ordered • Operating Instructions Certificates and approvals 4.4.1 The product meets the requirements of the harmonized European standards. As such, it complies with the legal specifications of the EU directives. -
Page 13: Installation
Viomax CAS51D Installation Installation Installation conditions 5.1.1 Mounting location ‣ Choose a mounting location that can be easily accessed at a later stage. ‣ Ensure that upright posts and fittings are fully secured and vibration-free. ‣ Select an installation location that produces a typical nitrate concentration / a typical SAC value for the application in question. -
Page 14: Mounting The Sensor
Installation Viomax CAS51D Flow assembly CAS51D 2-40 mm for small sample volumes A0013266 8 Horizontally, in flow assembly, arrow points in the direction of flow Sensor Flow assembly Medium outlet Medium inflow Window, required for aligning the sensor Flowfit CYA251 flow assembly A0032901 ... -
Page 15: Immersion Operation
Viomax CAS51D Installation Immersion operation 5.3.1 Fixed installation with wastewater assembly A0013347 A0013215 10 Installation secured on railing 11 Installation with upright post Wastewater assembly Flexdip CYA112 Protective cover Flexdip CYH112 holder Liquiline CM44x multi-channel transmitter Rail Wastewater assembly Flexdip CYA112... - Page 16 Installation Viomax CAS51D 5.3.2 Installation with chain retainer A0013348 A0013351 12 Chain retainer on railing 13 Chain retainer on upright post Wastewater assembly Flexdip CYA112 Protective cover Flexdip CYH112 holder Liquiline CM44x multi-channel transmitter Rail Wastewater assembly Flexdip CYA112...
-
Page 17: Flow Operation
Viomax CAS51D Installation Flow operation 5.4.1 Flow assembly for clear water and small sample volumes A0013352 14 Sensor with flow assembly Transmitter Viomax CAS51D Flow assembly Sensor holder Secure holder 70 (2.76) 30 (1.18) Ø 6.5 (0.26) A0013290 15... - Page 18 Installation Viomax CAS51D Release the hexagonal nuts on the mounting clamps and remove the top part of the clamp. Position the sensor in the mounting clamps and screw on the top parts, tightening by hand (it should still be possible to move the sensor).
- Page 19 Viomax CAS51D Installation Now slide the assembly onto the sensor, followed by the second O-ring and the second threaded ring. Open the cap on the viewing window. Position the assembly on the sensor in such a way that the cuvette gap is visible in the center of the window.
- Page 20 Installation Viomax CAS51D Connection diagram A0013361 Main pipe Flow assembly Manually actuated or solenoid valves Medium inflow Medium outlet Medium removal Medium return ‣ Connect the medium inflow and outlet to the assembly' s hose connections as shown in the diagram.
- Page 21 Viomax CAS51D Installation 5.4.2 Flow assembly Flowfit CYA251 A0032917 18 Measuring system with CYA251 Transmitter Flow assembly Medium outlet Medium inflow Viomax CAS51D A0032920 19 Connection diagram Main pipe Medium inflow Manually actuated or solenoid valves Flow assembly...
-
Page 22: Mounting The Cleaning Unit
Installation Viomax CAS51D As an alternative to bypass operation, you can also direct the sample flow from a filter unit with an open outlet through the assembly: A0032921 20 Flow assembly with open outlet Pump Open outlet Filter unit... -
Page 23: Post-Installation Check
Viomax CAS51D Installation SAC sensors with a gap width of 40 mm Mount the compressed air cleaning unit prior to installing the sensor in the measuring point, or remove the sensor from the medium. Clean the sensor if necessary. Screw the air diffuser from the accessory kit into the mounting holes behind the sensor gap, and tighten by hand as far as it will go. -
Page 24: Electrical Connection
Electrical connection Viomax CAS51D Electrical connection WARNING Device is live Incorrect connection may result in injury or death ‣ The electrical connection may be performed only by an electrical technician. ‣ The electrical technician must have read and understood these Operating Instructions and must follow the instructions contained therein. -
Page 25: Ensuring The Degree Of Protection
Viomax CAS51D Electrical connection 6. Lastly, tighten the cable gland from the outside. 6.1.2 Connecting the sensor You have the following connection options: • via M12 connector (version: fixed cable, M12 connector) • via sensor cable to the plug-in terminals of a sensor input on the transmitter (version:... -
Page 26: Operation
Operation Viomax CAS51D Device condition and specifications Notes Is a sufficient length of the cable cores stripped, and is it positioned in the Check the fit (by pulling terminal correctly? gently) Are all the screws terminals properly tightened? Tighten Operation ‣... - Page 27 Viomax CAS51D Operation If you use three or more concentration values for calibration, a completely new calibration function is calculated that no longer takes the original factory calibration data record into account. Give your calibration data records meaningful and useful names. For example, the name could contain the name of the application on which your data record was originally based.
- Page 28 Operation Viomax CAS51D 7.1.5 Nitrate sensor Processes with nitrate values > 0.1 mg/l 1. Take a sample and determine the nitrate concentration in the laboratory. 2. Calibrate and adjust the sensor with the laboratory value. Processes with very different nitrate values 1.
- Page 29 Viomax CAS51D Operation 2. Activate the new data record. (in the Setupmenu) 3. Set the desired factor. (in the CALmenu) 4. Set your device to the desired measured variable. (in the Setupmenu) Operating Instructions Memosens inputs BA01245C. The SAC sensor can be calibrated for the measured variables SAC, COD, TOC, BOD and DOC.
-
Page 30: Cyclic Cleaning
Diagnostics and troubleshooting Viomax CAS51D Cyclic cleaning Compressed air is most suitable for automatic cyclic cleaning. There is a connection for compressed air on every sensor. The cleaning unit, which is supplied with the device or can be retrofitted, operates effectively at a rate of 20 l/min (5.4 US gal/min). -
Page 31: Maintenance
Viomax CAS51D Maintenance Maintenance You must perform maintenance tasks at regular intervals. We recommend setting the maintenance times in advance in an operations journal or log. The maintenance cycle primarily depends on the following: • The system • The installation conditions •... -
Page 32: Repairs
The product must be returned if repairs or a factory calibration are required, or if the wrong product was ordered or delivered. As an ISO-certified company and also due to legal regulations, Endress+Hauser is obliged to follow certain procedures when handling any returned products that have been in contact with medium. -
Page 33: Accessories
Viomax CAS51D Accessories Accessories 11.1 Assemblies FlexdipCYA112 • Immersion assembly for water and wastewater • Modular assembly system for sensors in open basins, channels and tanks • Material: PVC or stainless steel • Product Configurator on the product page: www.endress.com/cya112... -
Page 34: Standard Solutions
Accessories Viomax CAS51D A0013263 25 Compressed air cleaning for CAS51D Cleaning for sensors with 2 mm and 8 mm gap Cleaning for sensors with 40 mm gap Adapter, 8 mm 300 mm hose (Ø = 6 mm) Coupling, 6 mm or 6.35 mm (¼") for 2 mm and 8 mm gap Coupling, 6 mm or 6.35 mm (¼") for 40 mm gap... -
Page 35: Technical Data
Viomax CAS51D Technical data Technical data 12.1 Input Measured values Nitrate -N [mg/l], NO [mg/l] SAC [1/m], COD [mg/l], TOC [mg/l], BOD [mg/l], DOC [mg/l], transmission [%] Measuring ranges CAS51D-**A2 (2 mm gap width) 0.1 to 50 mg/l NO 0.4 to 200 mg/l NO... - Page 36 Technical data Viomax CAS51D 12.2 Performance characteristics Reference operating 20°C (68 °F), 1013 hPa (15 psi) conditions Measured error Nitrate For 0.1 to 50 mg/l NO -N (2 mm cuvette gap): 2 % of full-scale value above 10 mg/l ±0.2 mg/l below 10 mg/l For 0.01 to 20 mg/l NO...
- Page 37 Viomax CAS51D Technical data Better than 0.2 % of end of measuring range over one week 12.3 Environment Ambient temperature -20 to +60 °C (-4 to 140 °F) range Storage temperature -20 to +70 °C (0 to 160 °F) Degree of protection IP 68 (1 m (3.3 ft) water column over 60 days, 1 mol/l KCl)
-
Page 38: Index
Index Viomax CAS51D Index Mechanical construction ..... . 37 Minimum flow ......37 Accessories . - Page 40 www.addresses.endress.com...
