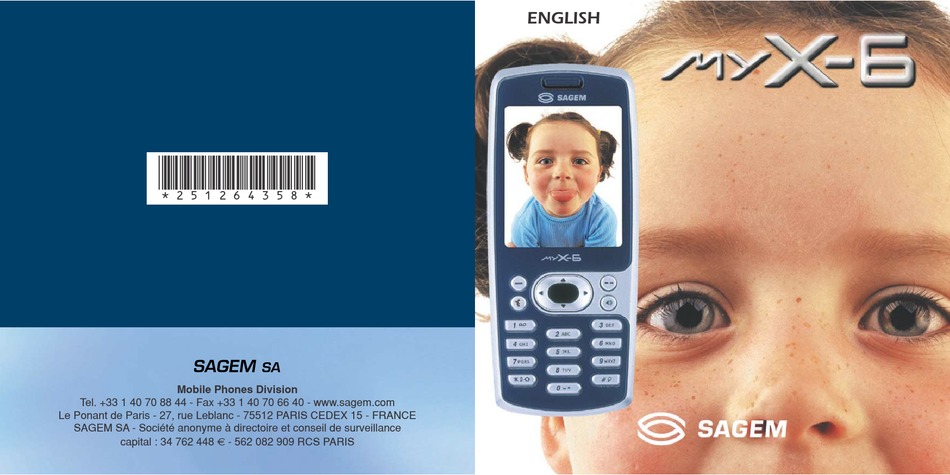

Page 1
Mobile Phones Division Tel. +33 1 40 70 88 44 - Fax +33 1 40 70 66 40 - www.sagem.com Le Ponant de Paris - 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE SAGEM SA - Société anonyme à directoire et conseil de surveillance...
Page 2
You have just purchased a SAGEM phone , we congratulate you; it is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions. Your phone can be used internationally in the various networks (GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz, depending on model) depending on the roaming arrangements with your operator.
Page 3
Size: 110 x 46 x 22 mm Original battery: Lithium ion 1000 mAh Battery life calls/standby: up to 4 h/240 h (see page 15 how to increase the efficiency of your myX-6) Multimedia objects supported: Audio formats: iMelody, Midi, wave...
Conformance Document SAGEM SA declares under its sole responsibility that the product GSM/DCS or PCS (depending on model) Type H2003 conforms to the requirements of the following EEC directives: EEC Directive Safety Low voltage directive Network Health 1999/5/CE EN 60950: 2000...
Menus Phonebook Contacts menu Messages Compose Inbox Outbox Drafts Options Memory Local info Camera Multimedia My Photos My Pictures My Sounds Memory Games MegaBox Conquest Downloaded games Taquin Organiser Diary ToDo Calculator Converter Alarm Timer Settings Sounds Ring tones Vibrate Silent mode Beeps Recorder...
Contents Page 2 Page 8 Page 9 Page 11 Page 12 Page 13 Page 15 Page 17 MENUS YOUR PHONE PACKAGE - ACCESSORIES DESCRIPTION Programmable keys and Shortcut keys Strap attachment NAVIGATION PRINCIPLES INITIAL SCREEN ACTIVATING YOUR PHONE Information on the SIM card Installing the SIM card and the battery USING YOUR PHONE Don't obstruct the antenna with your fingers...
Page 7
Contents Page 24 Page 35 Page 37 Page 41 MESSAGES Compose SMS Compose MMS Receiving messages Inbox Drafts Sending options Outbox Memory Local information CAMERA Take and send a photo MULTIMEDIA My Photos Display a photo Edit a photo My Pictures My Sounds Memory The WAP Menu...
Page 8
Contents Page 46 Page 47 Page 55 GAMES Built-in games Downloaded games ORGANISER Diary Calendar menu ToDo menu ToDo actions menu Sending a vCal Receiving a vCal Synchronization with a phone or a PC Calculator Converter Alarm Timer SETTINGS Sounds Volume and ring tone Vibrate Silent mode...
Page 9
Contents Camera Timer Click sound Format Languages Calls Calls forwarded View last calls Counters Display number Call waiting Automatic redial Answer phone Security Keypad locking PIN number PIN number 2 Phone code Confidentiality Operator Call barring Fixed dialling Cost Networks Others Car kit Data...
Page 10
Contents Page 74 Page 75 Page 76 Page 79 Page 84 Energy saving Shortcuts Date / Time Control Display Time zone Summer time SERVICES TECHNICAL FEATURES WARRANTY TROUBLESHOOTING INDEX...
Your phone package When you open the box, check that all items are present: 1 - Phone 2 - Charger 3 - Battery 4 - User guide 5 - CD Accessories You can also find (as an option) or order the following accessories: Hands-free kit (*) Additional battery Additional charger (*)
Description Programmable keys and Shortcut keys Hold down: Stop Press briefly: In a call context: Reject a call - hang up In menus: Return to initial screen. Press briefly: Start phone In call context: Call - receiving a call - hands-free mode Left programmable key: In initial screen: Access to certain functions (shortcuts) In menus: Cancel (or return) as indicated on the screen...
Description IRDA Mirror Strap attachment Camera Put the strap through the hook inside and at the bottom of the phone. Pull the strap to lock it into place.
Navigation principles Settings Sounds Back Select Sounds Ring tones Back Select Ring tones Alarm Calls Messages Local infos Back These basic principles bring a great intuitiveness to your phone. Validate by pressing the key . Cancel by pressing the key. The thumbnails at the bottom of the screen refer to the In the menus, a title bar reminds you of the previous level.
Initial screen thu 20 FEB thu 20 FEB Network provider Network provider Menu The initial screen contains the following information: 1 - The title bar icons: Battery Calls forwarded Call (establishing the call) Call (hands free) Message (reception of a message, message memory full) DATA Silent mode Message in answering machine...
Activating your phone Information on the SIM card WARNING This card must be handled and stored with care in order not to be damaged. If you should lose your SIM card, contact your network provider or your SMC (Services Marketing Company) immediately. Please keep your SIM card out of reach of young children.
Activating your phone Installing the SIM card and the battery The SIM card is inserted under the phone's battery. Ensure that the phone is switched off and the charger disconnected. Turn the phone back and push lock button upwards. Remove the back cover by lifting bottom end first. Take out battery if already installed.
Using your phone Don't obstruct the antenna with your fingers Increase the efficiency of your phone The antenna is integrated in your phone, under the back cover at the top. Avoid putting your fingers on this area when the phone is switched ON. If your fingers obstruct the antenna, the phone may have to operate with a higher power level than usual;...
Using your phone Charging the battery WARNING There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire. Do not short circuit it. The battery does not have any part that you can change. Do not try to open the battery casing.
Phonebook The phonebook allows you to store numbers that you call regularly. These numbers can be stored in the SIM card or in the phone. Your phone has a vCard phonebook, the following fields can be filled in the phone for each contact: last name, first name, number 1, email, number 2, number 3, call group, company, comment, photo.
Phonebook Contacts menu Phonebook My numbers Add contact Call groups Memory Back Phonebook John Contacts menu Andrew Jenifer Back Options Add contact Select Add contact and press the Choose the location where you wish to enter the contact (SIM card, phone or fixed dialling memory –...
Page 22
Phonebook Phonebook Add contact Call groups Memory Back Call groups Call groups m. Colleagues Customers Family Friends Leisures Back Options Call groups 6 default call groups have already been created. You can create others. You have the facility to group your contacts into call groups. It is possible to allocate characteristics to each group (icon, ring tone, vibrate mode).
Page 23
Phonebook Memory Phone.1561 Kb. 17 % 84 % Back Memory Select Memory and validate. Select SIM or Telephone and validate. The screen displays the locations used on the SIM Card and in the phone itself. The screen displays the amount of memory used. The memory capacity is shared between the phonebook and the photo, pictures, organiser, etc.
Phonebook Options from a contact saved Phonebook Andrew Jenifer John Contacts menu Back Options Phonebook Send By See contact Call Modify contact Delete Back See contact Select a contact from the list using the key. By directly pressing one character, the phone will display the first contact saved in the phonebook, starting with it.
Phonebook Phonebook Call Modify contact Delete Send By See contact Back Modify contact Save Last name First name Number 1 E-mail Number 2 Number 3 Back Modify Modify contact Select the contact desired and validate. Select Modify contact and validate. Modify what you want and validate then select Save once the modifications completed.
Phonebook Sending a vCard Receiving a vCard It is possible to send a vCard from each contact stored in the phonebook. vCards can be sent to another phone supporting vCard. On a contact in the phonebook, please select the Send by option menu item (EMS, MMS or IRDA).
Messages Compose SMS Messages Compose Back Select From this menu, you are able to send SMS, EMS and MMS. EMS is an extended message, longer than an SMS and which allows you to insert images and sounds to your text messages. MMS is a Multimedia Message Service, which allows you to enclose audio files, images and other rich content to your messages;...
Page 28
Messages Draft Delete Draft hello Delete Options The Easy Message T9™ mode helps you to easily write your short messages. Using T9 Mode Press once the key corresponding to the letter chosen and make the word by continuing to press the keys corresponding to the various letters without paying attention to the display: the word is highlighted.
Page 29
Messages When composing a message: The navigation keys assume the following functions: key: Last word key: Next word key: Previous line key: Next line key: Deletes last letter key: Message options key (long press): Zoom mode (changes size of characters) key (short press): Access to symbol table In the input screen, the...
Messages Compose MMS Draft Send menu Subject: Priority: Normal Delivery Repor Body … Back Change On the Messages menu, please choose the Compose menu and validate. Select the MMS option. The functions offered are: Subject: please write the subject of your MMS. To: this option allows you to select the receiver.
Page 31
Messages Compose MMS Saving your message You can save your message as a draft by selecting « Save » from the options, when editing the Subject or the Body. You will be able to edit it later from the Draft menu. Sending MMS messages Once the MMS are sent, you have the option to save them in your Outbox.
Messages Receiving messages When you receive a message, the phone will play the ring tone that you have selected, and the message icon will come on the screen of your phone. If you do not read the messages, this icon remains displayed on the screen.
Page 33
Messages Inbox Messages Inbox Back Select Received messages are stored in the SIM card or in the phone until you choose to delete them. On the Messages menu, please choose the Inbox menu and Select. Each message shows the presence of any attachments, the time and date the message was received and its size.
Messages Drafts Messages Drafts Back Select Sending options Messages Options Back Select When you store a composed message, it is stored among the drafts. On the Messages menu, please choose the Drafts menu and Select. Select a message and press the message, it will remain as a draft and can be re-used even if you have already sent it.
Messages MMS settings MMS server Store sent ms. Retrieval mode Priority Delivery Report Send delivery R. MMS reject Back Select The proposed options are: - MMS server: to select another MMS provider, or set the parameters of a new MMS provider. - Store message sent: (it is highly recommended that you keep this function deactivated, in order to avoid a full memory), - Retrieval mode: if you are in a poor coverage area, it may be more...
Messages Outbox Messages Outbox Back Select Memory Messages Memory Back Select The Outbox is used to store all your sent and waiting messages. Too many messages saved will quickly fill up the available memory and no further messages will be received. On the Messages menu, please choose the Outbox menu and Select.
Messages Local information Messages Local info. Back Select This menu is used to activate reception of local information broadcast by the network. You can choose whether you want to receive this information or not (please contact your network provider). On the Messages menu, please select the Local info. menu and Select.
Camera This menu allows you to take photos and use them for different purposes. For instance, you can send them to another phone or an Internet address, store them, use them as wallpapers or screen savers… Take and send a photo Menu Before taking a picture, some features need to be set.
Page 39
Camera Options Modify the name New... Send Back The Options menu appears, giving you the option to choose between: - New photo: allows you to take a new photo, - Modify the name: allows you to modify the name of a photo, - Send: allows you to send the photo by MMS (see the Message menu).
Multimedia My Photos Display a photo Multimedia My Photos Back Select Options Use as Delete Delete all Modify the name Send By Editor Back This menu gives you easy access to your favourite photos, pictures and sounds. This menu gives you access to your photos. On the Multimedia menu, please select the My Photos menu and Select.
Multimedia Edit a photo Editor Sepia Zoom Adjustment Emboss Negative Grey Scale Add mark Back On the Multimedia menu, please select the My Photos menu and Select. Select a photo and the Edit option, the Photo editor menu appears. Select one of the edit functions with the - Sepia: allows you to change colors into sepia, - Zoom: allows you to magnify certain parts of your photo, - Adjustment: allows you to improve contrast,...
Multimedia My Pictures Multimedia My Pictures Back Select Options Use as Delete Delete all Modify the name Back This menu gives you access to your pictures. On the Multimedia menu, please select the My Pictures menu and Select. The pictures stored are displayed on the screen. Please, use the keys to select one of them.
Multimedia My Sounds Multimedia My Sounds Back Select Memory Multimedia Memory Back Select This menu gives you access to your sounds. To access your sounds, use the same procedure as for your pictures (see the My Pictures menu). This menu indicates the memory size used by the different features of your phone.
The WAP Menu The WAP navigator is under licence: The WAP navigator is the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of the software that makes up the navigator.
Configuring WAP parameters Advanced…: choose one of the following advanced settings - Settings - Show URL - Disconnect - Circuit prompt (if user wants to confirm each logon) - Security (is used to access information on making WAP connections secure). About…: information on the browser.
Page 46
The GSM parameters to be entered are: - Login - Password - IP address of WAP gateway - Port type (secure or insecure) - Dial-up number - Mode (digital, analog or automatic) In automatic mode access can be gained to the operator's network by a digital link and an analog link to a different network (in roaming).
WAP Logging on The connection to a WAP service on the GPRS network is not cut if an incoming call is received. You can answer the call. Downloading sounds and images WAP Logging off Using the Welcome menu, you can log onto your access provider's WAP site by pressing the key.
Page 48
GPRS A flashing icon indicates that the phone is logging onto a GPRS network. A non-flashing icon indicates that the GPRS network is available; if the icon is dark, it indicates that the phone is logged onto the GPRS network: see page 42 for the attachment options. This icon is not displayed if the GPRS network is not available or if the SIM card inserted in your phone does not include the GPRS service.
Games Built-in games Downloaded games Your phone is supplied with at least two games: MegaBox Conquest and Taquin. You can also download new games depending on your phone and your subscription. A territorial conquest game and a picture puzzle game. On the Games menu, please select the game you wish to play and validate.
Organiser Diary Diary See date Calendar menu See today See week See month Back This menu gives you access to the different possible functions and actions provided by your diary and your Todo, on option. This menu gives you access to your diary and get to a day, week, month or specific date.
Organiser Calendar menu Calendar menu Categories Add event Memory Clean-up Delete all Back This menu lets you add events, manage events by category, see the available memory and delete all the events. Select one of the functions in the list with the - Categories: allows you to see the different event categories, assign a specific ring tone to each individual category, know the number of events in each category and see them.
Organiser ToDo menu ToDo Memory Create ToDo Categories Delete all Back ToDo actions menu ToDo Send See ToDo Modify ToDo Delete Back This menu allows you to add ToDo’s, access category-based Todo management and delete all the ToDo’s. On the Organiser menu, please select the ToDo menu and confirm your choice.
Organiser Sending a vCal You can send a vCal from each diary event and each Todo task. Yet, this function is available only on certain models of phone. You can send vCals to another phone using MMS or IRDA depending on your phone and the recipient’s phone.
Organiser Receiving a vCal Synchronization with a phone or a PC The vCal receipt mode differs with the type of delivery: - By EMS or MMS, you receive a message you have to open to extract the vCal. You cannot add the event to your diary until you have saved it. - By IRDA or serial link, you receive a message and when the download is completed, a message appears on your phone display, asking you what you want to do with the vCal (save it, delete it…).
Organiser Calculator Organiser Calculator Back Select This menu allows you to access the various accessories offered by your phone: calculator, converter, alarm, timer. This menu allows you to use your phone as a calculator. On the Organiser menu, please select the Calculator menu and Select.
Organiser Converter This menu allows you to convert one currency to another. On the Organiser menu, please select the Converter menu and Select. Organiser Enter a value and press the key to convert from one currency to another, or the key to convert back.
Organiser Alarm Organiser Alarm Back Select Timer Organiser Timer Back Select The alarm works even when the phone is switched off. This menu allows you to set and activate the alarm. On the Organiser menu, please select the Alarm menu and Select. Activate or Deactivate the alarm and validate.
Settings Sounds Volume and ring tone Sounds Ring tones Back Select Vibrate Sounds Vibrate Back Select This menu allows you to set your phone. This menu allows you to customize the ring tones on your phone and to activate beep and vibrate modes. This menu allows you to allocate a ring tone to each type of event.
Settings Silent mode Sounds Silent mode Back Select Beeps Sounds Beeps Back Select Warning: vibrate mode is not a priority regarding the ring tone selected on the call group. To make vibrate mode apply in general, switch to Silent mode. This menu allows you to switch to Silent mode.
Settings Recorder Sounds Recorder Back Select Look’n feel Look’n feel Skins Back Select These menu allows you to record you own melody. On the Sounds menu, please select the Recorder menu and Record. Record your melody or your voice by means of the microphone then save it.
Page 61
Settings Wallpapers Look’n feel Wallpapers Back Select Screensavers Look’n feel Screensave. Back Select This menu allows you to display the background picture you want on your phone. On the Look’n feel menu, please select the Wallpapers menu and Select. Select the Wallpaper and Visualise. The picture appears in the background of the screen.
Page 62
Settings Camera Settings Camera Back Select Timer Click sound Format This menu allows you to set the camera feature of your phone. On the Settings menu, please select the Camera menu and Select. Do the settings with the three menus below. This menu allows you to set the delay of the timer used when taking a photo.
Page 63
Settings Languages Settings Languages Back Select Calls This menu allows you to choose your phone's display language. On the Settings menu, please select the Languages menu and Select. Select your language and validate. If you select Automatic, the language used will be the one relative to your SIM card.
Page 64
Settings Calls forwarded Calls Calls forwa. Back Select View last calls Calls View last ca. Back Select Depending on your subscription, this service allows you to forward incoming calls to a different number or to the voice mailbox. On the Calls menu, please select the Calls forwarded menu and Select.
Page 65
Settings Counters Calls Counters Back Select Display number Calls Display nu. Back Select Fast access to the list of calls from the initial screen: press the This menu allows you to consult the duration of the up calls. It can also be used to check the volume of data exchanged in GPRS. On the Calls menu, please select the Counters menu and Select.
Settings Call waiting Calls Call waiting Back Select Automatic redial Calls Auto redial Back Select During a call, you may be informed that a caller is trying to reach you: you hear a special tone. The caller's identity is displayed on the screen (name or number).
Page 67
Settings Answer phone Calls Answ. phon. Back Select This function is used to record your answer phone number. This number will be used during a call to the voice mailbox using the programmable keys. On the Calls menu, please select the Answer phone menu and Select. Enter your answer phone number and validate.
Settings Security Keypad locking Security Keypad lock. Back Select PIN number Security PIN code Back Select This menu allows you to configure your phone's security settings. This menu allows you to lock the keypad to avoid unwanted key presses. On the Security menu, please select the Keypad locking menu and Select.
Page 69
Settings PIN number 2 Security PIN code 2 Back Select Phone code Security Phone code Back Select You have a second PIN number to allow you to access certain functions*. * These functions may or may not be available depending on your SIM card.
Page 70
Settings Confidentiality Security Confidentia. Back Select Operator Security Operator Back Select The Confidentiality function is used to delete numbers stored in View last calls and the SMS stored in the memory when a new SIM card is inserted into the phone. This menu allows the activation of automatic deletion, after power off/on, for messages and/or calls stored in the phone.
Settings Call barring Security Call barring Back Select Fixed dialling Call barring can be applied to ALL calls (incoming and outgoing), to all incoming calls when you are away from your home country (if roaming available). This menu allows you to block the sending or reception of certain calls. Before you can use this service, a password will be provided by your operator when you take out your subscription.
Page 72
Settings Cost Networks Settings Networks Back Select This menu allows you to control the cost of your calls (*). On the Security menu, please select the Cost menu and validate. The Cost menu (*) lets you check the cost of the last call you made and of all the calls you made since you last deleted them.
« my Picture and sound » software (available on http://www.sagem.com). Use the Speed menu to configure the data transfer speed if you are using AT commands.
Settings Energy saving Others Energy savi. Back Select Shortcuts Settings Short cuts Back Select This function is used to deactivate the screen backlight and to select the economic mode. On the Others menu, please select the Energy saving menu and Select.
Settings Date / Time Control Date / Time Control Back Display Date / Time Display Back This menu allows you to set the date and time of your phone. On the Date / time menu, please select Control and validate. Date: set the date by entering it directly in digital form or by using the keys.
Settings Time zone Date / Time Time zone Back Summer time Date / Time Summer tim. Back This menu allows you to change time in relation to the GMT time. On the Date / time menu, please select Time zone and validate. Choose the time of the country desired by calculating the time from the GMT time.
Services Services This menu allows you to access numerous services offered by your operator. The list of these services will appear in the menu depending on your subscription. This menu allows you to access your operator's basic services. On the Services menu, please choose from the list offered. This list depends on your SIM.
Technical features Use of your phone is subject to safety measures designed to protect users and their environment. Electrical safety: Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety: When travelling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs.
(transport and insurance) of the phone to the address to be indicated to it by the SAGEM SA after-sales service, whose phone number will appear on the delivery note, will be charged to the customer.
Page 80
(especially temperature and hygrometry, effects of variations in electric voltage, interference from the mains network or earth) or even due to a repair, a call-out (opening or trying to open the phone) or to servicing done by personnel not approved by SAGEM SA.
Page 81
SIM operator key done without the agreement of the original operator. In the cases of warranty exclusion and of expiry of the warranty period, SAGEM SA shall draw up an estimate to be given to the customer for acceptance before any call-out. The repair and carriage costs (there and back) given in the accepted estimate will be charged to the customer.
Troubleshooting ROBLEM ITUATION It is impossible to switch the phone on Battery status unknown LOW BATTERY SIM not present Incorrect PIN code SIM BLOCKED ACTIONS Put it on charge for at least 15 minutes before switching it back on again. Check if the battery icon is scrolling up and down.
Page 83
Troubleshooting ROBLEM ITUATION SIM LOCKED No call connection No receiving calls Quality reception when calling Impossible to send message ACTIONS On network providers’ request, the handset can only be used with some types of SIM cards. This message means that the SIM card you are using does not fit with the phone.
Page 84
Troubleshooting ROBLEM ITUATION No answer phonebox If answer phone icon flashing Wrong ring tone is played on call reception Backlight does not work In WAP context: SERVER NOT ANSWERING message Logon to home page impossible In the WAP menu, Clear the cache. Operator name does not appear on screen How do I (un)lock the keypad?
Page 85
Troubleshooting ROBLEM ITUATION How do I delete the answer phone that appears on the screen? How do I remove the written message at the bottom of the home page (1 call) How do I download ring tones? How do I free up memory to download my objects (sounds, images) How do I free up memory to...
Page 86
Troubleshooting ROBLEM ITUATION How can I increase the efficiency of my phone? How to quit the eco mode? ACTIONS The most efficient actions are as follows: You can deactivate the backlight (in the menu Others / Energy Saving), or please keep your phone safely in order to avoid pressing the keys unnecessarily: every time a key is pressed the screen lights up.
