HD78/F
Event-Driven Indoor Security
IP Camera/Detector
with HD Audio
Installation Manual
**Compatible with Insite GOLD
and SWAN Server**
Introduction

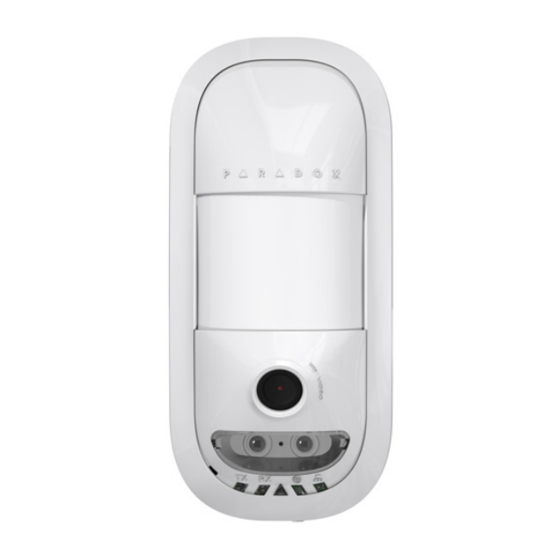

The HD78/F Event-Driven Indoor Security IP Camera combined
with its Security Detector provide video/audio solution for security
systems. It provides day/night vision at 720P and Hi-Fi audio
recording, with over 40 minutes of internal event-recording
capacity.

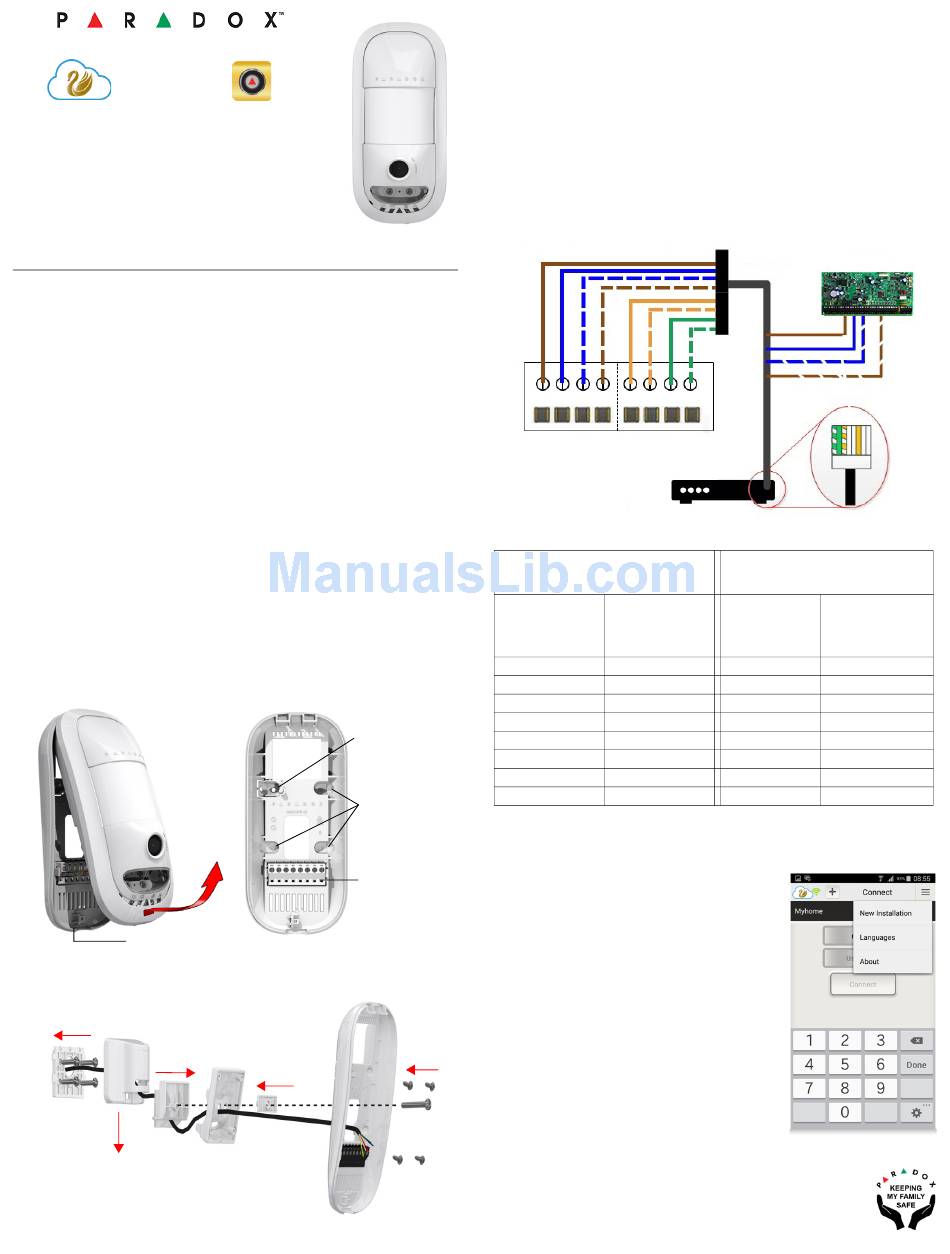

Installing the HD78
WIRING: For bus wire, it is recommended to use 18 gauge wire
if distance from the power supply is over 150ft (50m), or wire is
feeding more than one camera. Due to battery backup opera-
tion conditions, Camera feeding wire (bus) should not have
more than 1.0V drop, each camera represents 0.3A max cur-
rent, wire resistance calculator can be found on the web.
Resistance per:
100ft 22 gauge wire = 1.6 Ohm, 18 gauge 0.64 Ohm. Voltage
drop formula: V = 2R x 0.3N
(R = Wire resistance, N = Number of cameras fed by the wire,
use lower gauge wire if necessary).
Unscrew and
remove cover
Lock
Bracket Mount
1
3
2
paradox.com
Mount back on wall
or bracket
Anti-Tamper
Spacer
Drill Out
Holes
Terminal
Block
5
4
HD78F - Connect Via Wi-Fi with Insite App
HD78 - Bus Wiring and / or Ethernet (HD78)
Wiring Using a CAT5e Cable
NOTE: Due to the wire size of CAT5 22 gauge wire the maxi-
mum length when using CAT5 for powering the HD78 is 150ft.
Wire the HD78/F camera with a single CAT5e or higher cable
including two twisted pairs for the 4-wire bus and two twisted pairs
for the Ethernet lines. The maximum CAT5e cable length is 50
meters.
4-Wire
RX-RX+TX-TX+
R+ B- G Y
4-Wire
Ethernet
Spectra/EVO
bus
Router or Switch
Recommended Wiring
Assignment
Bus Label Wire Color
R+ Brown
B- Blue
G Blue striped
Y Brown striped
RX- Orange
RX+ Orange striped 6
TX- Green
TX+ Green striped
Programming
1. HD78F Connect Power, Open Tamper
2. Phone: Activate hotspot on your
Android device, launch the Insite App.
3. Go to menu, select installation.
4. Follow screen instructions.
CAT5e with 4 Twisted Pairs
R+
B-
G
Y
12345678
Ethernet Connector
Ethernet
Wire Wire Color
Assignment
1 Green Striped
2 Green
3 Orange Striped
4
5
Orange
7
8
