Paradox HD78F Installation Manual

HD78/F
Event-Driven Indoor Security
IP Camera/Detector
Installation Manual V1.0
Introduction

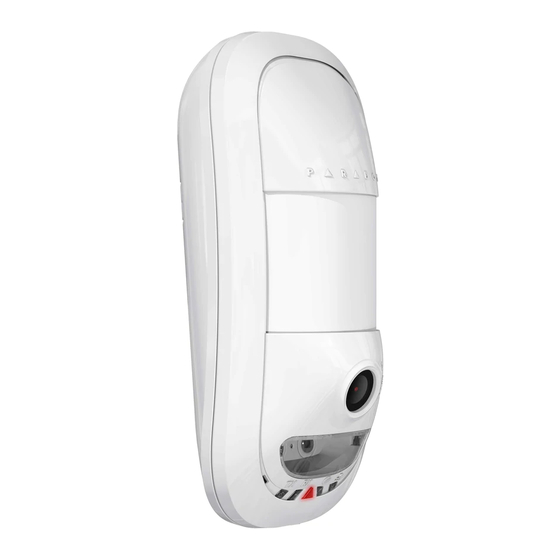

The HD78/F Event-Driven Indoor Security IP Camera combined
with its Security Detector provide video/audio solution for security
systems. It provides day/night vision at 720P and Hi-Fi audio
recording, with over 40 minutes of internal event-recording
capacity.
Installing the HD78
Unscrew and
remove cover
Lock
Bracket Mount
1
3
2
paradox.com
Mount back on wall
or bracket
Anti-Tamper
Spacer
Drill Out
Holes
Terminal
Block
5
4
HD78F - Connect Via Wi-Fi with Insite App
HD78 - Bus Wiring and / or Ethernet (HD78)
Wiring Using a CAT5e Cable
Wire the HD78/F camera with a single CAT5e or higher cable
including two twisted pairs for the 4-wire bus and two twisted pairs
for the Ethernet lines. The maximum CAT5e cable length is 50
meters.
4-Wire
RX-RX+TX-TX+
R+ B- G Y
4-Wire
Ethernet
Spectra/EVO
bus
Router or Switch
Recommended Wiring
Assignment
Bus Label Wire Color
R+ Brown
B- Blue
G Blue striped
Y Brown striped
RX- Orange
RX+ Orange striped
TX- Green
TX+ Green striped
Programming
Connect Power, Open Tamper
1. HD78F - Activate hotspot on your
Android device.
2. HD78/F - Launch the Insite App.
3. Go to menu, select installation.
4. Follow screen instructions.
CAT5e with 4 Twisted Pairs
R+
B-
G
Y
12345678
Ethernet Connector
Ethernet
Wire Wire Color
Assignment
1 Green Striped
2 Green
3 Orange Striped
4
5
6 Orange
7
8
HD78F-EI00B 06 2016
