Ryobi TR31-1 Operator's Manual

Double insulated
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
We have engineered and manufactured your new Laminate Trimmer to Ryobi's high standard for dependability, ease of
operation, and operator safety. When properly cared for, the Laminate Trimmer will give you years of rugged, trouble-free
performance.
WARNING:
Carefully read through this entire operator's manual before using your new trimmer.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL

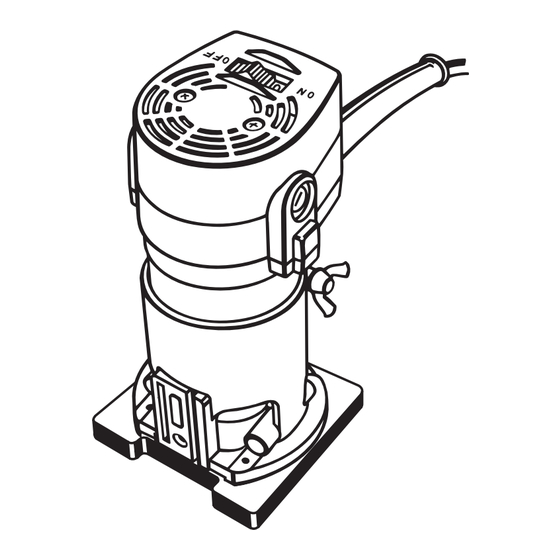

LAMINATE TRIMMER
MODEL TR31-1
DOUBLE INSULATED

SPECIFICATIONS:

Maximum Cutter Diameter
Collet
Horsepower
Rating
120 volts, 60 Hz AC only, 3.8 amperes
No Load Speed
Power Cord
Net Weight
1-3/8 in. (34.9 mm)
1/4 in. (6.4 mm)
3/4
23,000 RPM
10 ft. (3 m)
3.0 lbs. (1.4 kg.)

Advertisement

Table of Contents
loading

Related Manuals for Ryobi TR31-1

Summary of Contents for Ryobi TR31-1

  • Page 1: Specifications

    Power Cord Net Weight We have engineered and manufactured your new Laminate Trimmer to Ryobi’s high standard for dependability, ease of operation, and operator safety. When properly cared for, the Laminate Trimmer will give you years of rugged, trouble-free performance.

  • Page 2: Table Of Contents

    WARNING: The operation of any laminate trimmer can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

  • Page 3: General Safety Rules

    WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in elec- tric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmo- spheres, such as in the presence of flammable liq- uids, gases, or dust.

  • Page 4: Specific Safety Rules

    Keep the tool and its handle dry, clean, and free from oil and grease. Always use a clean cloth when clean Additional Rules for Safe Operation Know your power tool. Read operator's manual care- fully. Learn its applications and limitations as well as the specific potential hazards related to this tool.

  • Page 5: Symbols

    Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current Direct Current...

  • Page 6: Unpacking

    If any parts are damaged or missing, con- tact your nearest Ryobi dealer to obtain replacement parts before attempting to operate trimmer. A subbase accessory with handles, operator's manual, warranty registration and two wrenches are included in the carton.

  • Page 7: Features

    WARNING: Do not use cutters that are larger in diameter than the opening in trimmer base. Use of such cutters will come in contact with the trimmer base and damage both the cutter and trimmer base. This situation could also cause...

  • Page 8: Adjustments

    Failure to unplug your trimmer could result in accidental starting causing serious injury. Place your trimmer upside down on a workbench in order to gain easy access to the spindle and collet nut. Place the small end of one of the wrenches provided on the spindle flats.

  • Page 9: Operation

    The best rate of feed is one that does not slow down the trimmer motor more than one-third of its no-load speed. If the trimmer is fed too fast, it will take large chips out of the wood and leave gouge marks. If the trimmer is fed too slow, it will scorch or burn the wood.
  • Page 10 TOO SLOW FEEDING It is also possible to spoil a cut by moving the trimmer for- ward too slowly. When it is advanced into the work too slowly, a revolving cutter does not dig into new wood fast enough to take a bite;...
  • Page 11 DIRECTION OF FEED AND THRUST See Figures 8 and 9. The trimmer motor and cutter revolve in a clockwise direc- tion. This gives the tool a slight tendency to twist (in your hands) in a counterclockwise direction, especially when the motor starts.

  • Page 12: Maintenance

    WARNING: When servicing use only identical Ryobi replacement parts. Use of any other parts may create a hazard or cause product damage. BRUSH REPLACEMENT See Figure 10. Your trimmer has externally accessible brush assemblies that should periodically be checked for wear. Proceed as follows when replacement is required: UNPLUG YOUR TRIMMER.

  • Page 13: Accessories

    Test difficult setups on scrap — Don’t waste lumber. Plan each operation before you begin. Provide for smoother operation by cleaning your trimmer frequently. Shake trimmer or blow with an air jet to remove sawdust buildup. THINK SAFETY BY THINKING AHEAD.
  • Page 14 TRIMMING WITH SUBBASE ACCESSORY See Figures 13 and 16. A subbase accessory is packed in the box with your trimmer. If desired, the existing subbase can be removed and this accessory attached. It is convenient when routing 4 in. (101.6 mm), 5 in. (127 mm), or 6 in.

  • Page 15: Accessories

    Note: The board being used as a straight edge must be 1/4 in. (6.4 mm) thick or less to prevent contact with trimmer base. It must also be at least as long as the workpiece in order to be a guide.
  • Page 16 Ryobi Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Ryobi Authorized Service Center. You can also check our web site at www.ryobitools.com for a complete list of Authorized Service Centers.
