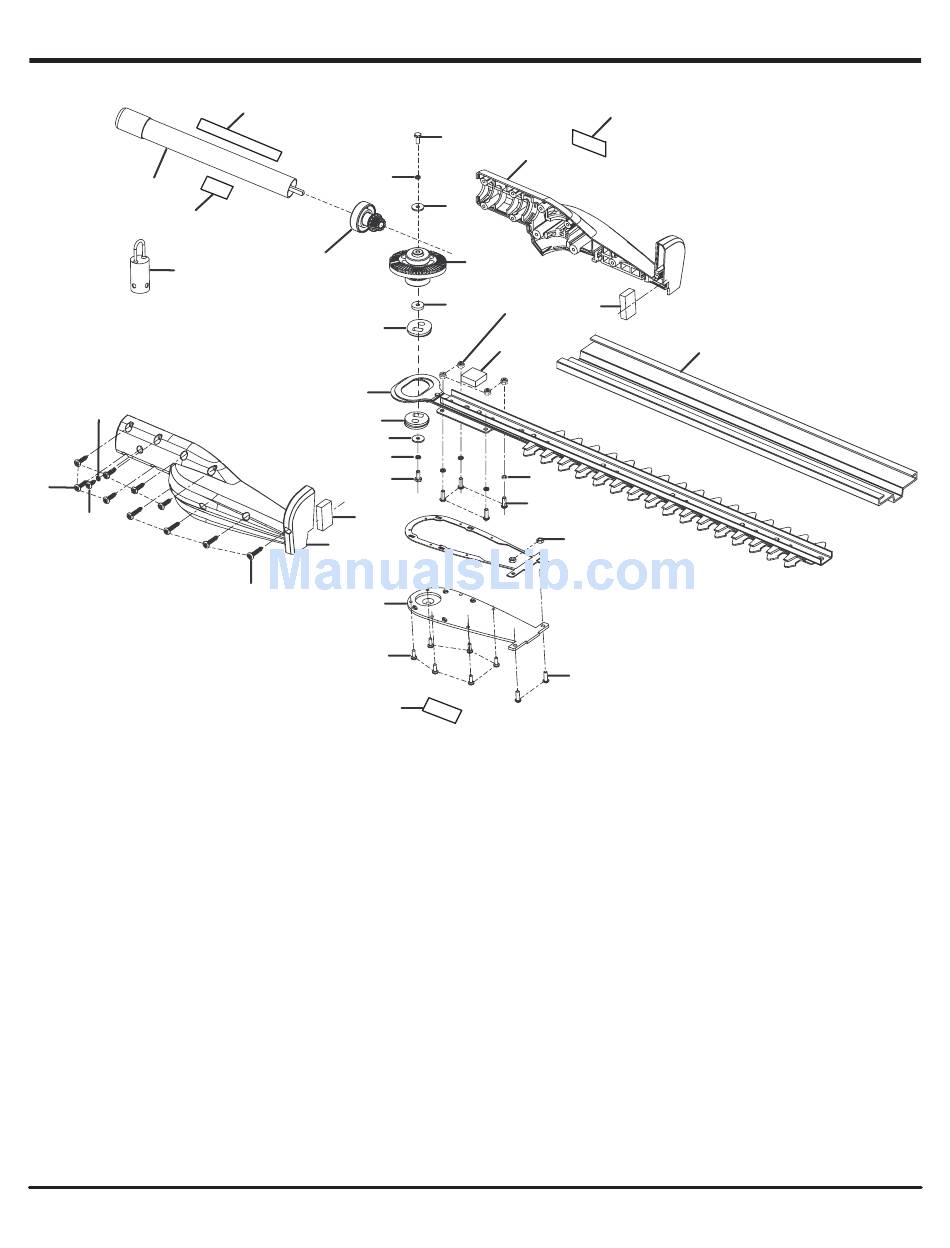

EXPLODED VIEW AND PARTS LIST

1
26
2
6
21
20
Key Part
No. Number Description
1 308828001 Lower Drive Shaft Assembly ................ 1
2 518019001 Hanger Cap .......................................... 1
3 308829001 Pinion Assembly .................................. 1
4 660927001 * Screw (M5 x 11.8 mm) ......................... 2
5 678343001 Spring Washer ..................................... 3
6 678341001 Washer ................................................. 2
7 308830001 Output Shaft Assembly ........................ 1
8 678350001 Cam ..................................................... 2
9 308548001 Blade Assembly ................................... 1
10 901382001 Felt ....................................................... 3
11 308827001 Housing Assembly ............................... 1
12 518464001 Housing Bottom Plate .......................... 1
13 660923001 * Screw (M3.5 x 8 mm) ........................... 6
14 660924001 * Screw (M4 x 12 mm) ............................ 2
15 591617001 Seal ...................................................... 1
16 678344002 * Nut (M4) ............................................... 6
27
5
3
8
9
8
6
5
4
10
11
22
12
13
25
* STANDARD HARDWARE ITEM — MAY BE PURCHASED LOCALLY
4
11
6
7
23
10
16
10
18
17
16
15
14
Key Part
Qty. No. Number
17 660924002
18 678346001
19 518463001
20 660925001
21 660927002
22 660926001
23 638342001
24 940726005
25 940680005
26 940724003
27 940657014
960227042
10
24
19
Description
* Screw (M4 x 16 mm) ............................ 4
Spring Washer ..................................... 4
Blade Sheath ....................................... 1
* Screw (M4 x 9 mm) .............................. 1
* Screw (M5 x 14.5 mm) ......................... 6
* Screw (M5 x 26.5 mm) ......................... 4
Cam Spacer ......................................... 1
Logo Label ........................................... 1
Hot Surface Label ................................ 1
Data Label ............................................ 1
Warning Label ...................................... 1
Operator's Manual
(Not Shown) ......................................... 1
Qty.
