MC67
WITH ANDROID™ OS
QUICK START GUIDE

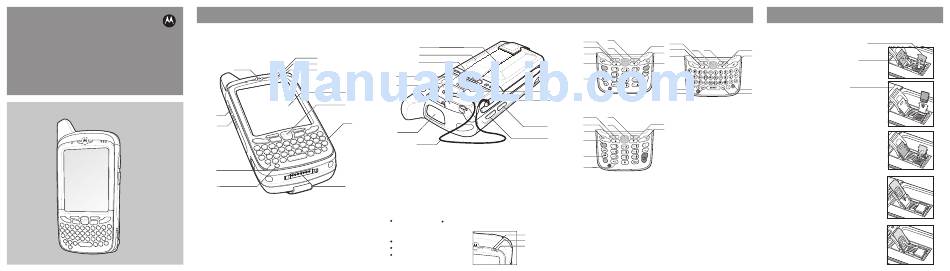

FEATURES
Note: Remove protective shipping film that covers the touch screen, exit
window and camera window before using.
9
10
12 11
8
7
1
6
2
3
4 (Note 1)
5
1 Scan/Action Button 8 Touch Screen (with screen
2 Up/Down Button protector)
3 Microphone 9 Data Capture LED
4 Power Button 10 Charging/Battery Status LED
5 I/O Connector 11 WAN Radio Status LED
6 Keypad 12 Phone Speaker
7 Scan/Action Button
Note 1: To reset the MC67, press and hold the Power button until the menu appears
and then select Reset.
13
14
15
16
17
23
22
21
18
20
19
13 Handstrap 19 Tether
14 Battery 20 Scan/Action Button
15 Battery Latch 21 Action Button
16 Camera Flash 22 Stylus
17 Camera 23 Speaker
18 Exit Window (see Data Capture
Options)
Notifications
Data Capture LED: Radio Status LED:
Green: Good Decode
Green: RF active
Data Capture
Charging/Battery Status LED:
Charging/Battery Status
Slow blinking amber: Battery charging
Radio Status
Solid amber: Fully charged
Fast blinking amber: Charging error
2
2
2
3
2 2
3
2
3 2 3 2
8
7
1 4
6 5
9
5
7
9 8
Numeric Keypad Alpha-Numeric Keypad
2
2
Orange Key
2 2
3
Use this key to access the secondary
8
7
layer of characters.
>
Press the Orange key once to lock the
5
keypad into Alpha state.
>
Press the Orange key a second time to
6 return to the normal state.
9
1 Talk
DSD Keypad
2 Navigation
Blue Key 3 Scan/Action Button
4 End
Use this key to access application dependent
5 Orange Key
function keys shown on the keypad in blue.
6 Blue Key
> Press the Blue key once to activate this state, followed
7 Home
by another key.
8 Menu
9 Back
Orange Key
Use this key to access the secondary layer of characters
>
Press the Orange key once to lock the keypad into
Alpha state.
Press the Orange key a second time to return to the
>
normal state.
CARD INSTALLATION
MicroSD Card Installation (Optional)
microSD Card Holder
1. Remove the handstrap.
2. Lift the rubber access door.
3. Slide the SIM card holder up to
SIM Card Holder
unlock.
4. Lift the SIM card holder.
5. Carefully lift the microSD card holder.
6. Insert the microSD card into the
Rubber Access Door
card holder.
NOTE :
Proper position of the microSD card — the card
connector (i.e., gold contacts) should be facing out as
shown.
Gently lower the microSD card holder until it snaps
7.
into place.
SIM Card Installation
(Optional)
8. Insert the SIM card into the SIM holder.
NOTE :
The proper position of the SIM card—the card
connector (i.e., gold area) should be facing outward
with the beveled corner facing away.
9. Lower the SIM card holder.
Slide the SIM card holder down to lock into place.
10. 2
11. Close the rubber access door.
12. Install the battery.
3
