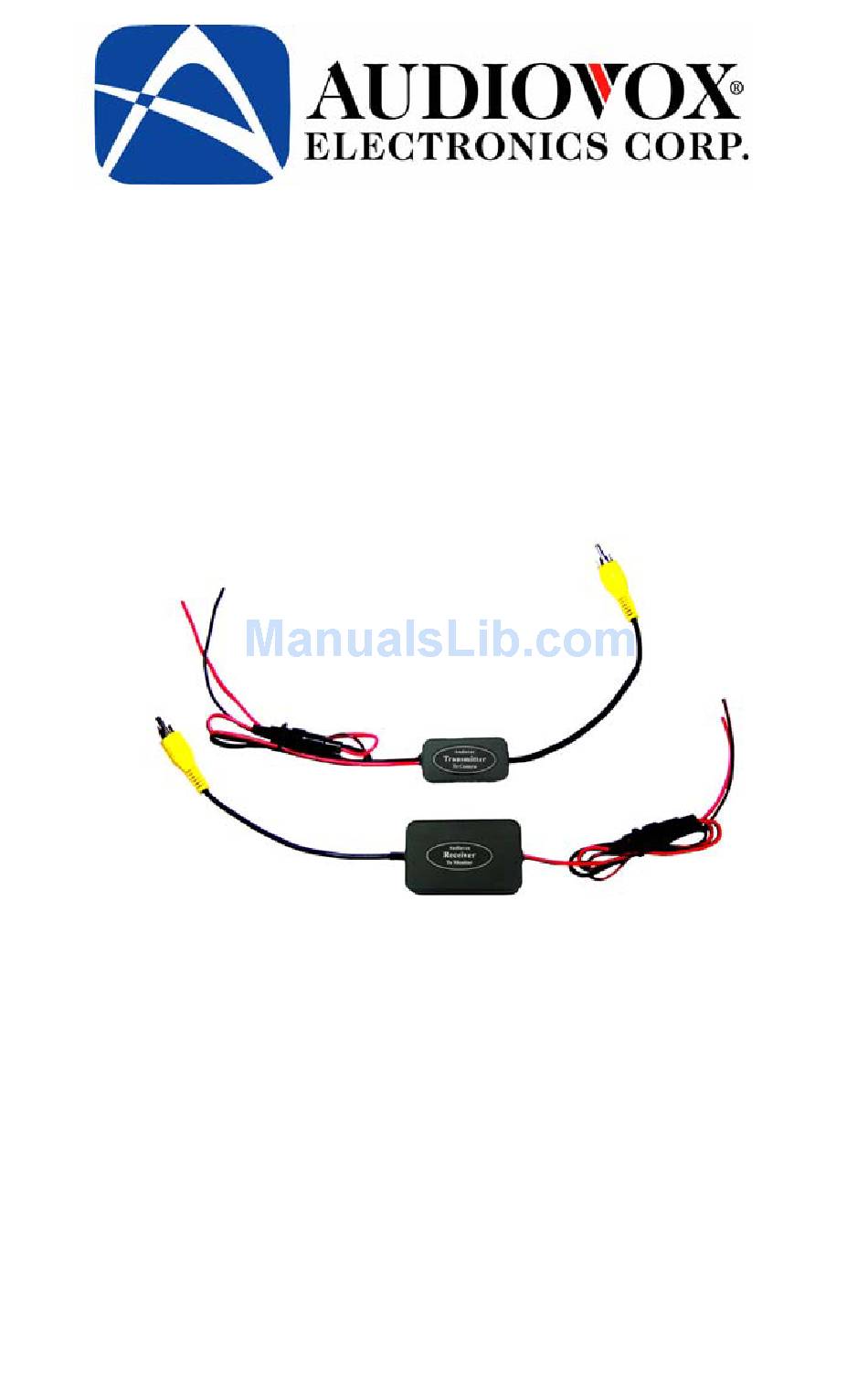

- Page 1 Wireless Transmitter and Receiver Model:ACA300 Installation Manual Features: • Operating frequency: 2.4GHz. • Converts Hard Wired Systems to Wireless • Developed for Backup Camera Systems • RCA Connector...
-
Page 2: Warnings
Do not use any features of this system to the extent it distracts you from safe driving. Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corporation cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions. -
Page 3: Table Of Contents
Table of Contents Warnings Table of contents Product description Packing list Transmitter/Receiver installation Specifications Troubleshooting Product Description The wireless transmitter and receiver have been developed to convert a hard wire camera/monitor system to a wireless operation. The following information contained in the installation manual is for camera backup systems. -
Page 4: Transmitter/Receiver Installation
Transmitter/Receiver Installation The transmitter and the receiver must be installed in the vehicle’s trunk or interior. The transmitter and receiver are not weather proof and must be located in a dry location Tap/Run Connection Wiring the transmitter to the vehicle reverse lamp. Using the tap connectors supplied. -
Page 5: Specifications
a. Wiring the receiver to the vehicle. Choose a source that only has power when the vehicle is running. Connect as shown Using the tap connectors supplied. i. Place the unstripped ignition source wire on the run channel ii. Place the unstripped red power wire completely iii. -
Page 6: Troubleshooting
Check the rearview Camera and the No video signal appears while Transmitter wiring connection. reversing the vehicle? Video image is not sharp Clean the lens of the camera. enough? © 2007 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
